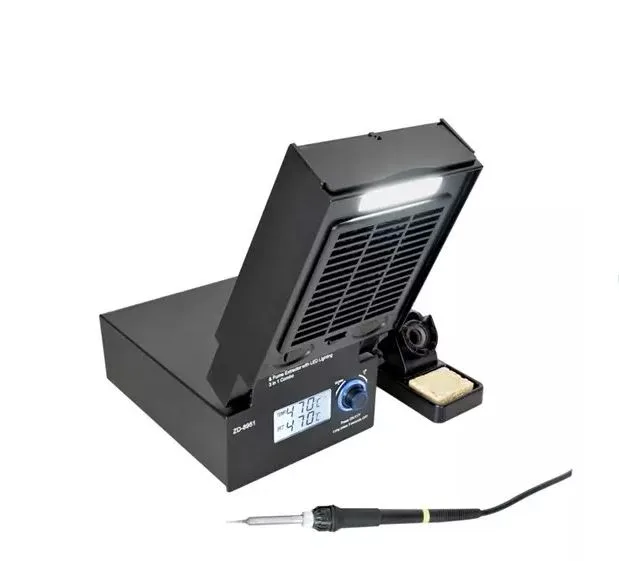

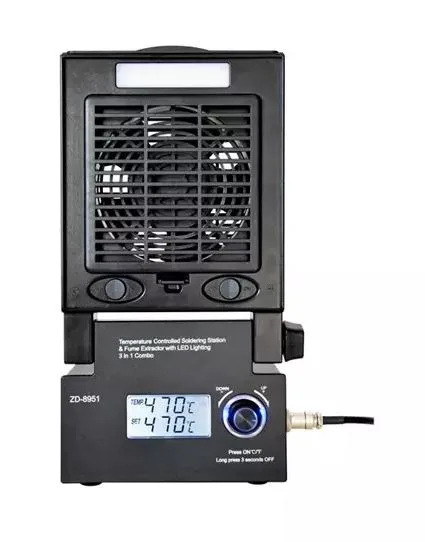

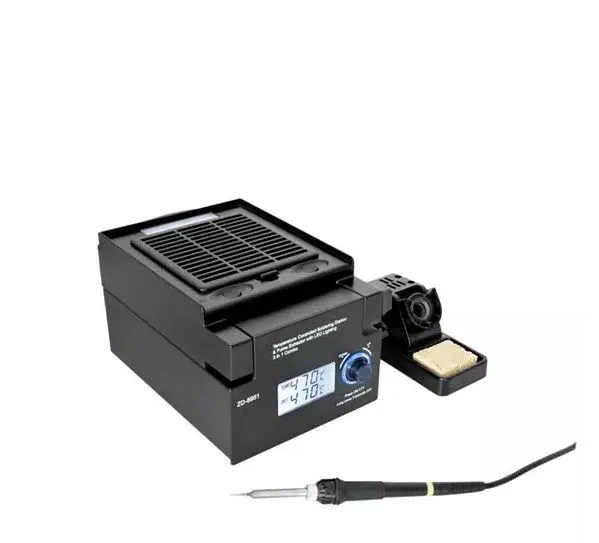

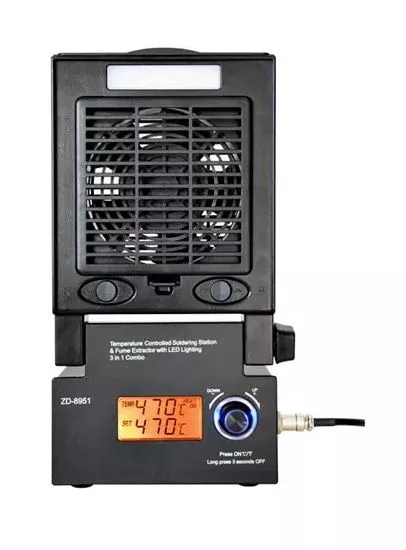

Soldering station with fume extractor, LCD display and LED light

Soldering station with ceramic heating element and PTC sensor, fume extractor and LED light

SKU 8240-TP240EAN 8595563725542Product type: Soldering/desoldering station

Description

Get precise, safe joints with this professional soldering station, built for maximum efficiency and convenience. Fast heat-up brings it to 400°C in under a minute, so you never wait to start work. The backlit LCD display gives a clear reading of both the set and the actual temperature, while the ceramic heating element with PTC sensor keeps it stable and reliable over time.

For a cleaner, safer workstation, the unit has a fume extractor with an activated carbon filter and an air flow of up to 1m³ per minute. The built-in LED lighting also improves visibility while you work.

Perfect for professionals and hobbyists alike, this station brings precision, safety and convenience together in a single tool you cannot do without for electronics and repair work.



Features
  • Soldering station with fast heat-up, backlit LED display and fume extractor
  • Temperature shown in °C and °F
  • Fast heating element with PTC sensor
  • Fume extraction with activated carbon filter, up to 1m³/min
Technical specifications
  • Power consumption 60 W (up to 130 W with fast heat-up)
  • 60W/24V ceramic heating element with built-in temperature sensor, 4 pins
  • Plastic soldering iron handle with rubber parts for heat protection
  • 12-LED display, 5W power consumption
Package contents
  • Soldering station
  • Soldering iron
  • Iron tip, type N9-16
  • Iron stand with sponge for cleaning the tip
  • One spare activated carbon filter, 120 x 120 x 10 mm
  • Three-core Schuko power cord

Technical details

Temperature range 160 to 480°C (320°F ~ 896°F)
Fast heat-up function reaching 400°C (752°F) takes less than 1 minute
Fume extraction power consumption 23W
Soldering station dimensions 23 x 17 x 14-41 cm (fan tilted - upright position)
Stand dimensions 16 x 6 x 8 cm
Weight 3 kilograms
