Sound-Controlled LED Psychedelic Lights – kit

Fitted with 11 RGB LEDs and a microphone capsule, this system picks up the sounds around it and drives the 11 on-board LEDs to create beautiful lighting effects.

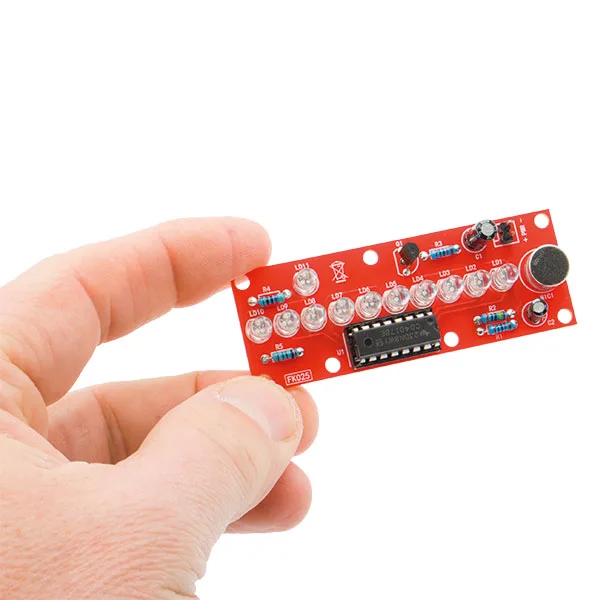

Sound-Controlled LED Psychedelic Lights – kit - Image 1
Sound-Controlled LED Psychedelic Lights – kit - Image 3

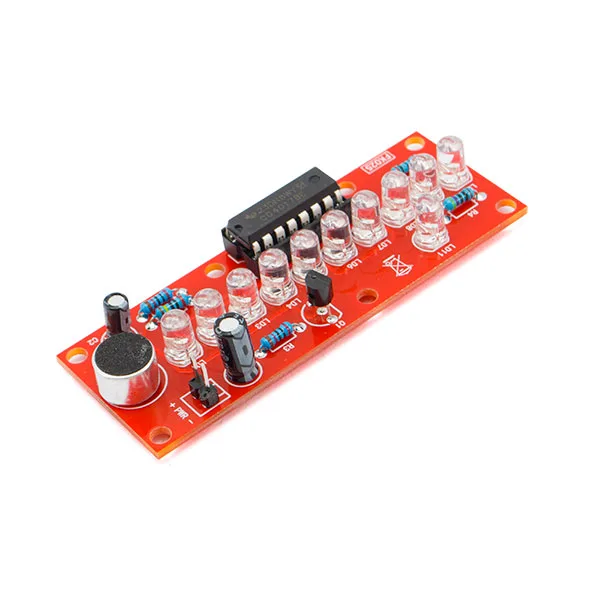

Sound-Controlled LED Psychedelic Lights – kit - Image 4

SKU 7100-FK025EAN 8219671120296Item type: Assembled, Kit

Description

This kit lets you build a sound-controlled psychedelic RGB LED bar. Fitted with 11 RGB LEDs and a small microphone capsule, the system responds automatically to the surrounding sound, voices and music included. The 10 RGB LEDs light up and run from left to right, creating beautiful light shows, while the eleventh flashes on and off. The speed at which these LEDs move is synchronised with the beat of the music or with the voices and noises around, picked up by the microphone capsule. This RGB LED bar can be used, for example, inside a portable stereo, but also as part of a toy or as decoration for shop windows and supermarket counters.

Soldering required for assembly. Assembly instructions.

solder-it-yourself kit system
Main features
  • Automatic sound control:
    Thanks to the on-board microphone capsule, the system responds automatically to the surrounding sound, voices and music included.
  • 11 RGB LEDs:
    The bar carries 11 RGB LEDs, offering a wide range of colours and lighting effects.
  • Synchronised with the beat of the music and the surrounding sound:
    The speed at which the LEDs move is synchronised with the beat of the music and the surrounding sound, for a dynamic visual display.
  • Education and learning:
    The kit offers hands-on educational value, letting youngsters and students get closer to the world of electronics.
Circuit diagram

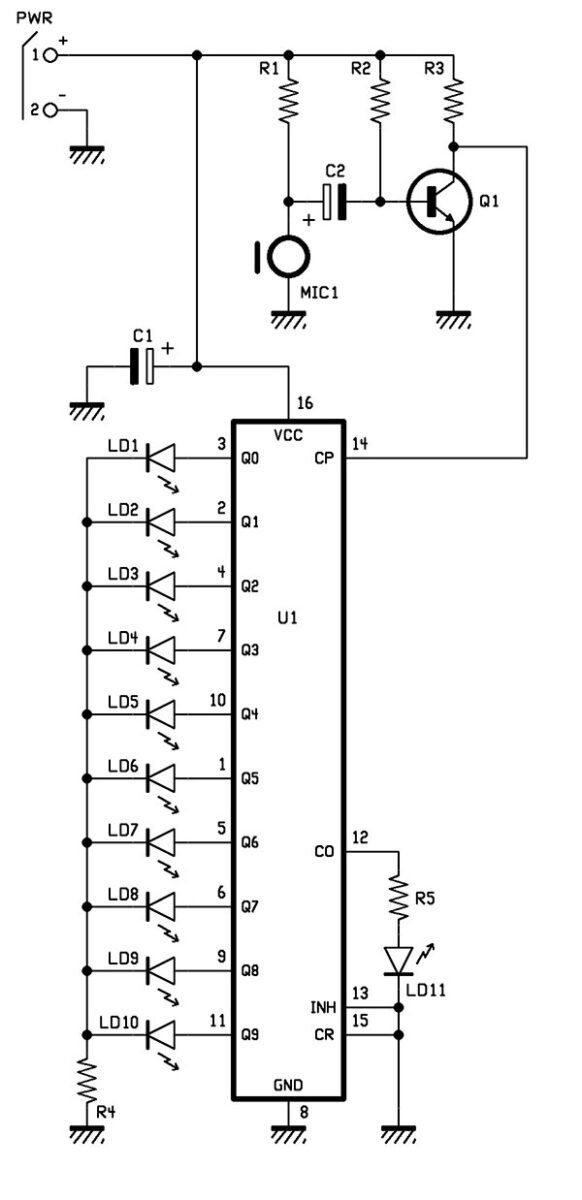

RGB LED psychedelic lights with sound control - Wiring diagram
Technical specifications
  • Fields of application: Portable stereos, toys, shop-window displays, DIY art projects, events or parties, education and learning.

Technical details

Supply voltage 9 ~ 12 Vdc
Max current draw 50 mA
Number of LEDs 11 RGB
