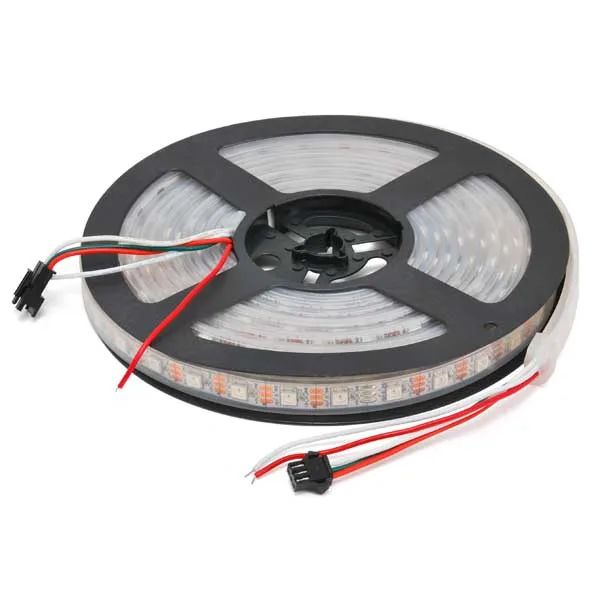

Strip of 300 WS2812B Addressable RGB LEDs – NEOPIXEL

Addressable LED strip holding 300 high-brightness RGB LEDs (60 per metre), flexible and weather resistant (IP67)

SKU 2846-STRIP300LEDEAN 8219671073547Item type: Assembled

Description

Addressable light strip with 300 RGB LEDs (60 per meter), high brightness, flexible and weatherproof (IP67). Each individual LED (SMD5050) integrates the control chip (WS2812B). Each chip communicates with the next one via a line, transferring the received information. These “smart” strips are therefore well suited for creating borders and outlines that light up and change color on command; they can also be placed side by side to create matrices that can be controlled pixel by pixel and capable of raster displays, as seen on some facades of department stores and hi-tech buildings. LED spacing 11 mm, can be cut every LED, power supply: 5 Vdc, length: 5 meters. Warning! The power supply is not included.

Technical specifications

  • – red 650 mcd
    – green 520 mcd
    – blue 460 mcd

Technical details

Color RGB
Control chip WS2812B, 60 pcs/m
Number of 5050 RGB LEDs 300 type (60 LED/m)
LED spacing 11 mm
Viewing angle 120°
Protection rating IP67
Average life 50,000 hours
Power supply 5 Vdc
Power consumption 42.5 W
Current draw 8.5 A
Weight 300 g
Dimensions 5 m (length) x 15 mm (width) x 4 mm (thickness)
Operating temperature from -20°C to +50°C
