Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total

Strobe LED light kit made up of a main control board and three boards carrying 16 LEDs each. The kit produces a striking strobe light effect with sequential and combined control of the LEDs. The flash rate is adjustable with the on-board trimmer.

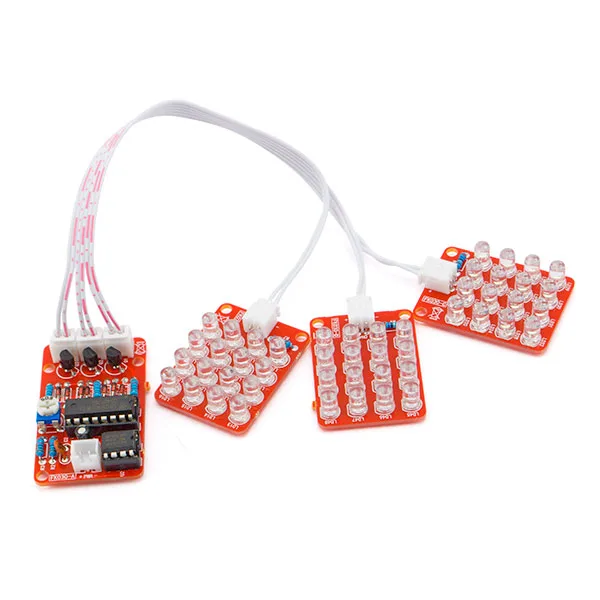

Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total - Image 1

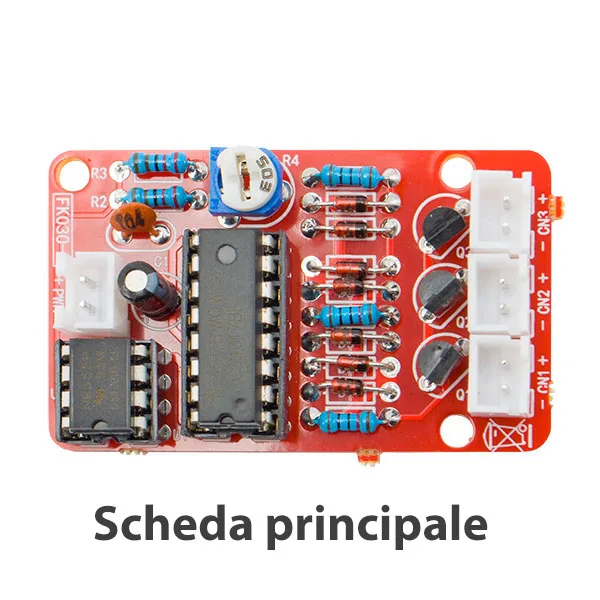

Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total - Image 3

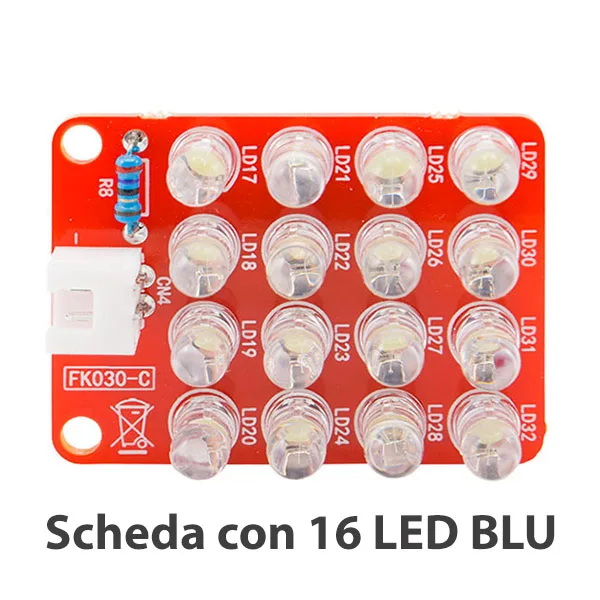

Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total - Image 4

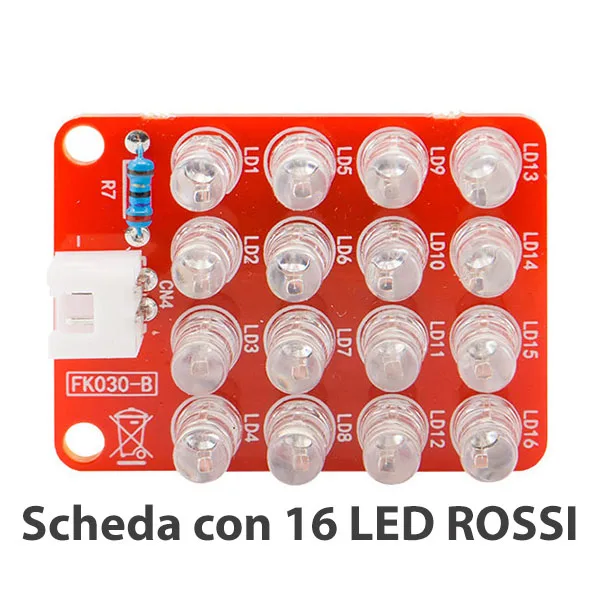

Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total - Image 5

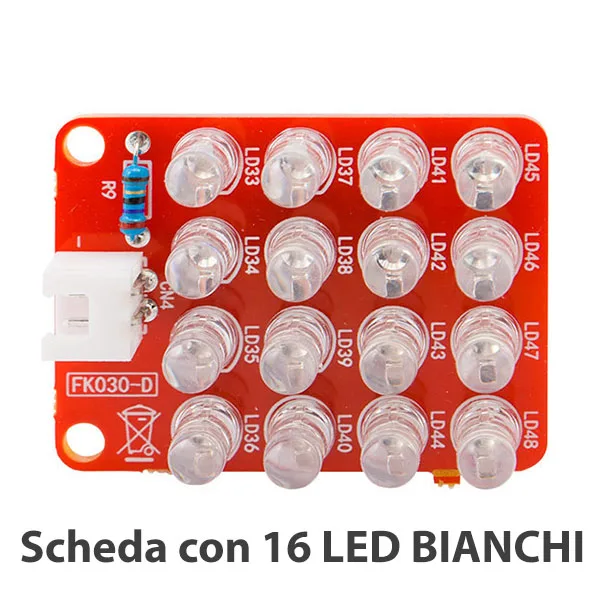

Strobe LED Lights with Adjustable Flash Rate – 48 LEDs in Total - Image 6

SKU 7100-FK030EAN 5410329216283Item type: Assembled, Kit,

Description

This kit lets you build a strobe LED lighting system. It consists of a main board that drives three bright LED boards, allowing sequential and combined flashing. Each board carries 16 LEDs: 16 blue, 16 red and 16 white. The trimmer supplied lets you set the flash rate as you like, choosing exactly the speed you want. Ideal for events and entertainment, and for adding a creative touch to lighting decorations.
Soldering is required to assemble the kit version.
The package includes assembly and operating instructions.

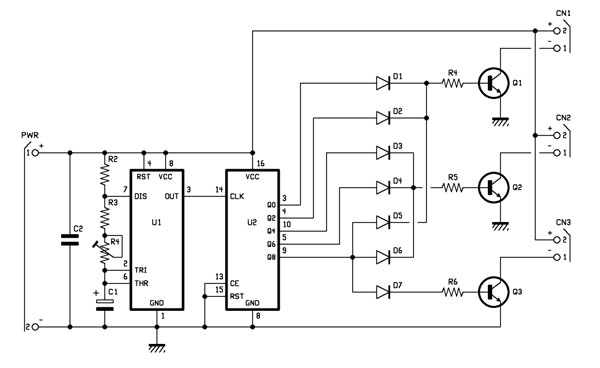

Circuit diagram of the base board
Luci LED stroboscopiche

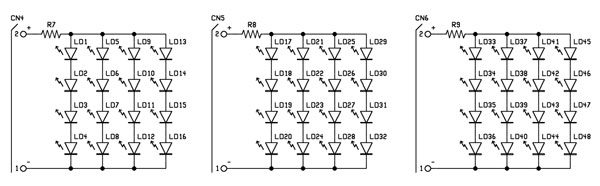

Circuit diagram of the LED boards
Luci LED stroboscopiche - Schema elettrico schede LED

Technical details

Supply voltage 12 ~ 15 Vdc
Current draw 200 mA
Number of LEDs 16 blue LEDs, 16 white LEDs, 16 red LEDs
Flash rate adjustable with trimmer
