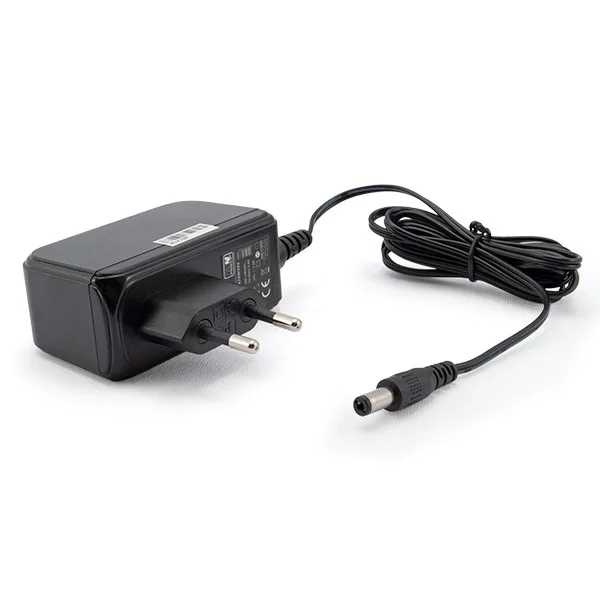

Switching Power Supply 9V / 1A – 9W
Compact switching power supply with 9 W power, 9 Vdc stabilized voltage and maximum current of 1 A. Protection against short circuit, overvoltage and overload. Ideal for electronic devices.
SKU 8245-ER09W09VEAN 5410329711245Output voltage: 9 VdcMains power supplies
Description
This reliable, compact switching power supply provides a stabilized 9 Vdc output, 9 W power with a maximum current of 1 A. It features built-in protections against short circuit, overvoltage, and overload, ensuring safe and reliable operation. With an efficiency of 81.6%, the power supply delivers optimal performance while reducing energy consumption. Output stability and low ripple help maintain a constant voltage, preserving the integrity of connected devices.
Technical details
| Input voltage | 90 to 240 VAC - 50/60 Hz |
|---|---|
| Efficiency | 81.6% |
| Power | 9 W |
| Output voltage | 9 Vdc |
| Maximum output current | 1 A |
| Ripple voltage | 150 mVpp |
| No-load power consumption (max) | 0.075 W |
| Cable length | 1.5 meters |
| Plug | 5.5 x 2.1 mm, center positive |
| Operating temperature | 0°C to 40°C |
| Dimensions (mm) | 76.2 x 27.6 x 61.6mm (L x W x H) |
| Weight | 76 grams |
