Ultrasonic mist maker with 12 LEDs and power supply

Ultrasonic mist maker with 12 automatically colour-changing LEDs and mains power supply

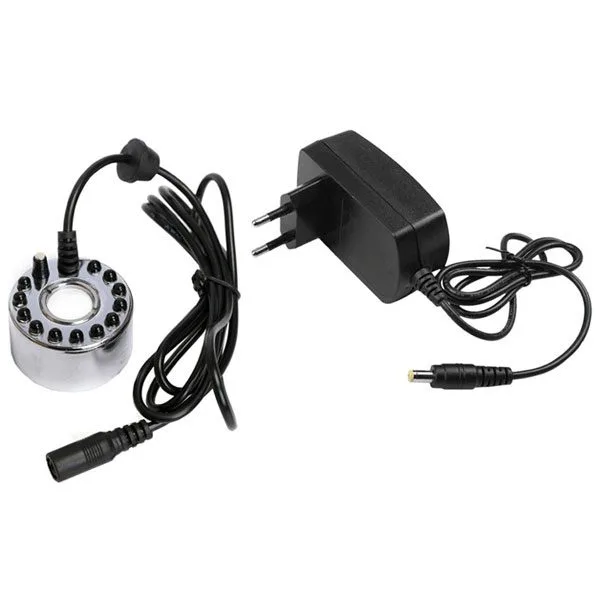

Ultrasonic mist maker with 12 LEDs and power supply - Image 1

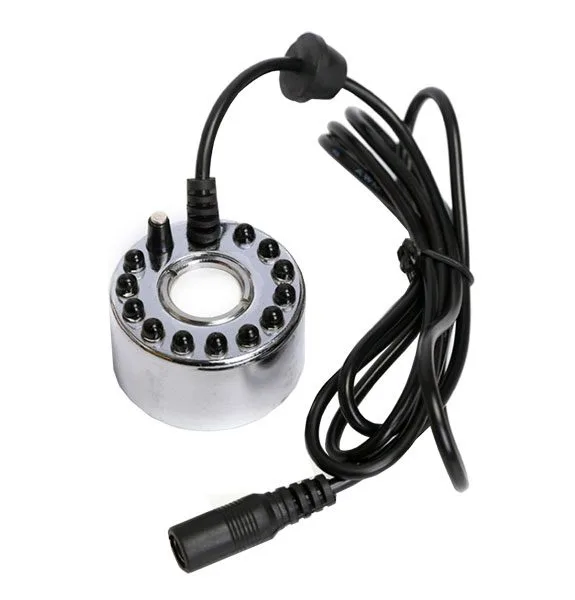

Ultrasonic mist maker with 12 LEDs and power supply - Image 3
Ultrasonic mist maker with 12 LEDs and power supply - Image 4

SKU 1606-HS2682EAN 8219671116169Item type: Assembled

Description

Ultrasonic mist maker with 12 automatically colour-changing LEDs and mains power supply. It adds a striking mist effect to indoor fountains, water features, potted landscapes and so on. The mist is produced in large quantities (400 ml / h), is long-lasting and multicoloured thanks to the colour-changing LEDs. A rubber grommet on the mist maker cable marks the maximum water level. Power supply: 24 Vdc/1 A (via mains adapter – included).

Some examples of use

Technical details

Power supply 24 Vdc/1 A (via mains adapter – included)
Consumption about 800 mA
Mist output 400 ml / h
Operating frequency 1.7 MHz
Transducer disc diameter 20 mm
Max. water level 70 mm
Operating temperature +5°C to +45°C
Body material zinc alloy
Dimensions (mm) diameter (46) x 34
Weight 136 grams
