USB-controlled 2-Relay Board

Compact module with two relays that can be driven from a simple PC application or from the command line

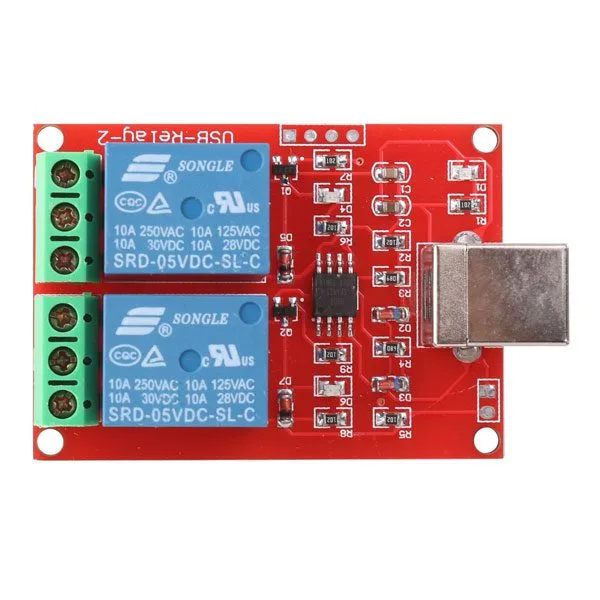

USB-controlled 2-Relay Board - Image 1

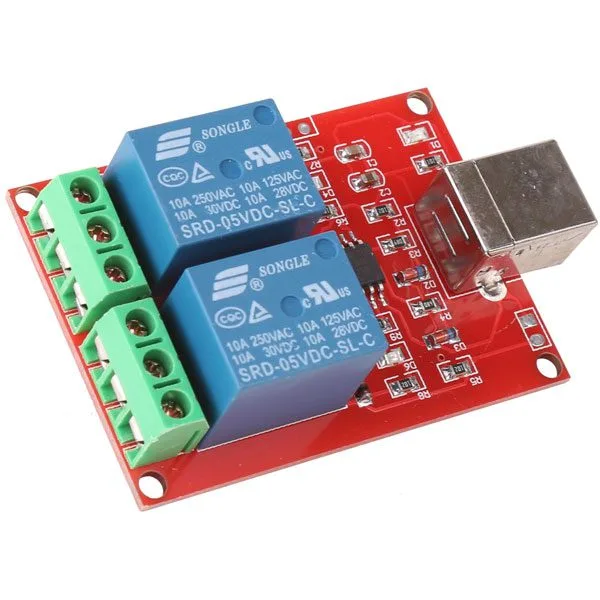

USB-controlled 2-Relay Board - Image 3

SKU 8300-Y172EAN 8219671113137Item type: Assembled

Description

Compact module with two relays that can be driven from a simple PC application or from the command line, by writing your own software around the DLL file supplied. No driver has to be installed on the PC. The module takes its power straight from the PC USB port and talks to it over USB. It also has two pins carrying a voltage of 5 volts. Dimensions (mm): 63.3×40.6×18.
Technical specifications
  • Contacts: N.C. / COM / N.O. (on screw terminals)
Documentation and useful links
  • Application and DLL

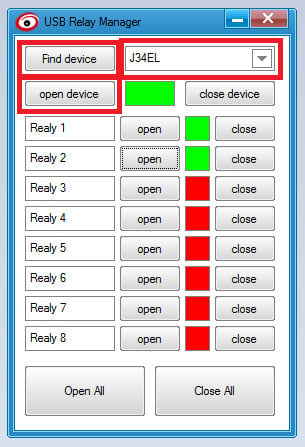

    1. The TestApp directory holds the test application.
    2. The TestAppCode directory holds the source of the test application.
    3. The usb_relay_dll directory holds the dll file and the .h
    4. The xcgui directory holds the GUI library used by TestApp with GUI.

Technical details

Dimensions (mm) 63.3x40.6x18
Relays 2
Contact rating 10 A 250 VAC / 30 VDC
Weight 30 grams
