USB to RS232 DB9 adapter – 1.5 m

USB–RS232 converter with a female DB9 connector, built around the FTDI FT232RNL chip, designed for stable, reliable serial communication in industrial and professional applications.

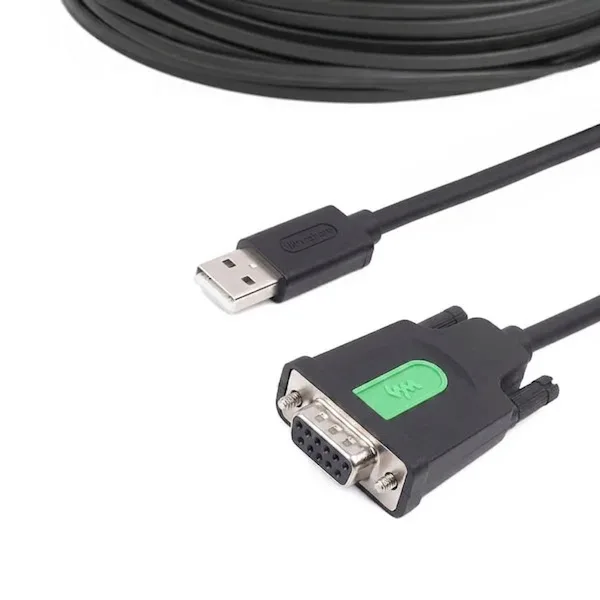

USB to RS232 DB9 adapter – 1.5 m - Image 1

SKU 2850-W26011EAN 8219671078139

Description

USB to RS232 adapter for connecting computers that have a USB port to devices with an RS232 serial interface and a DB9 connector.

The device is based on the FTDI FT232RNL chip, a solution widely used in professional work thanks to its high compatibility, communication stability and long-term reliability. That makes it suitable even for industrial settings where operation has to be continuous.

It supports transmission speeds between 300 bps and 921600 bps, so it can be used both for configuration and diagnostics and in systems that communicate continuously with embedded devices.

Thanks to FTDI driver support, the device is normally recognised automatically by all the main operating systems, which simplifies installation and cuts down on manual configuration.

The 1.5 m cable with a black PVC jacket offers good flexibility and mechanical strength, so it also suits installation in technical and industrial environments.

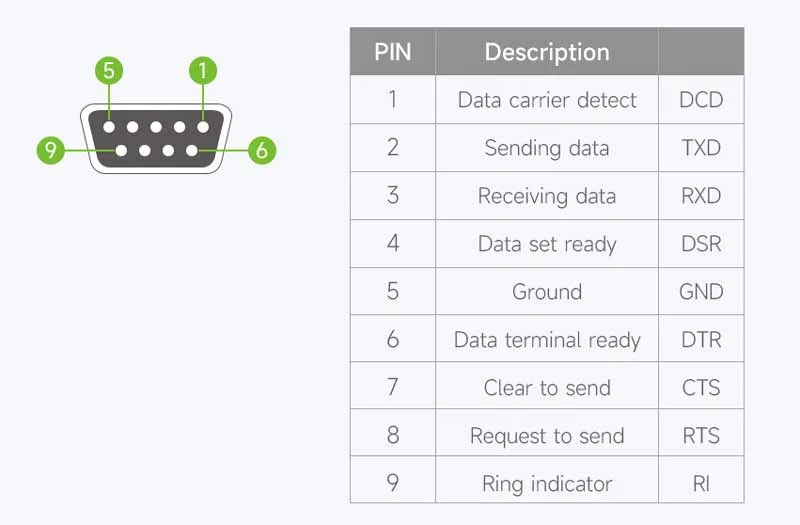

DB9 PINOUT

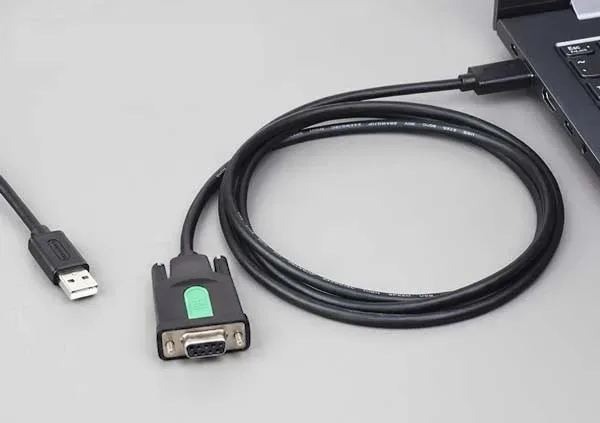

Example of connection to a laptop

Technical details

Chip original FTDI FT232RNL
USB interface USB Type-A
Serial interface RS232 DB9 female
Baud rate 300 – 921600 bps
Cable length 1.5 m
Jacket black PVC
