VMB1RYNOS – VELBUS Module – 1-Channel Relay

A 3 A contact driven from the Velbus bus, with pulse or timed operation; set up from the Velbuslink program.

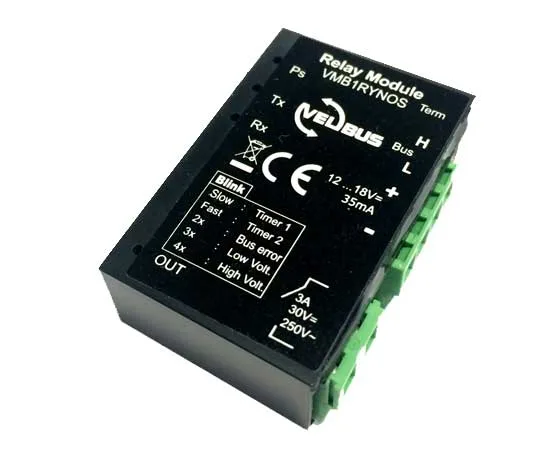

VMB1RYNOS - VELBUS Module - 1-Channel Relay - Image 1

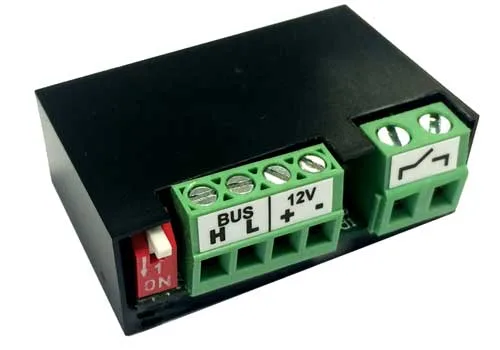

VMB1RYNOS - VELBUS Module - 1-Channel Relay - Image 3
VMB1RYNOS - VELBUS Module - 1-Channel Relay - Image 4
VMB1RYNOS - VELBUS Module - 1-Channel Relay - Image 5

SKU 8220-VMB1RYNOSEAN 5410329592677Item type: Assembled

Description

Relay module for the Velbus system. Equipped with a normally open contact, it can operate in on/off, monostable, and timed modes. Configurable via the free Velbuslink software (V9.1 or later) and a USB/RS232 interface module. Up to 250 addresses and firmware upgradeable through the Velbus system.

Technical details

Relay output (max.) 3A / 30 Vdc or 3A/250 Vac
Velbus connection CAN bus interface
Power supply 12 to 18 Vdc
Consumption 35 mA max. (15 mA in standby)
Dimensions (mm) 40x30x14
