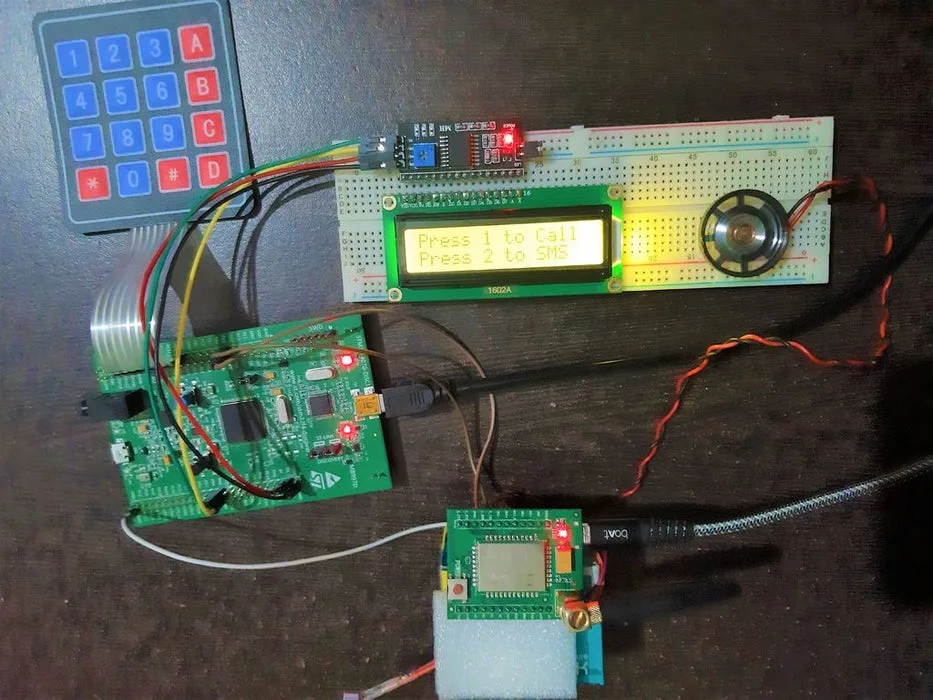

In this project, I will guide you on how to build a basic mobile phone using the STM32F407 Discovery Kit and GSM A6 module.
This project contains 3 main modules :
- GSM A6 Module – This is module is responsible for Making/Receiving Calls and SMS.
- LCD 16×02 Display – To see the output
- Hex Keypad – To give input
