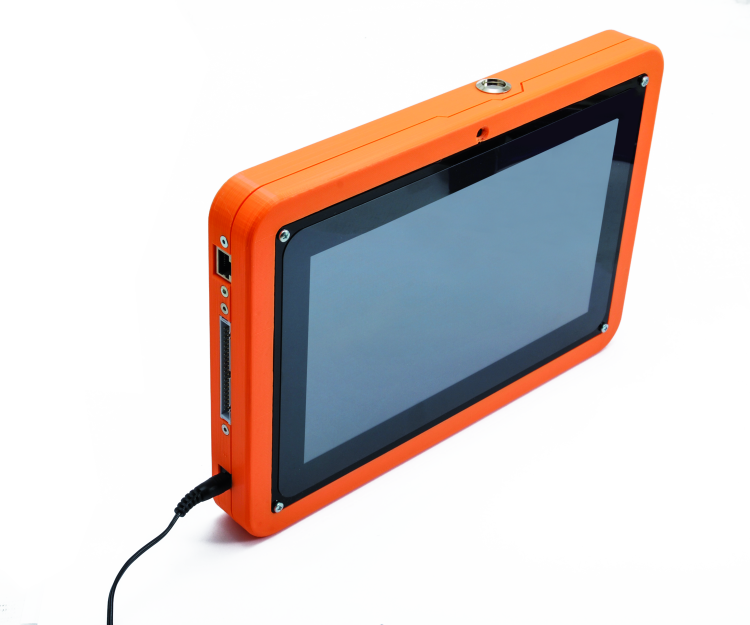

OpenStore: All-In-One PC with Raspberry Pi 3

Available in our store the electronics parts for building your Tablet with Raspberry Pi 3.

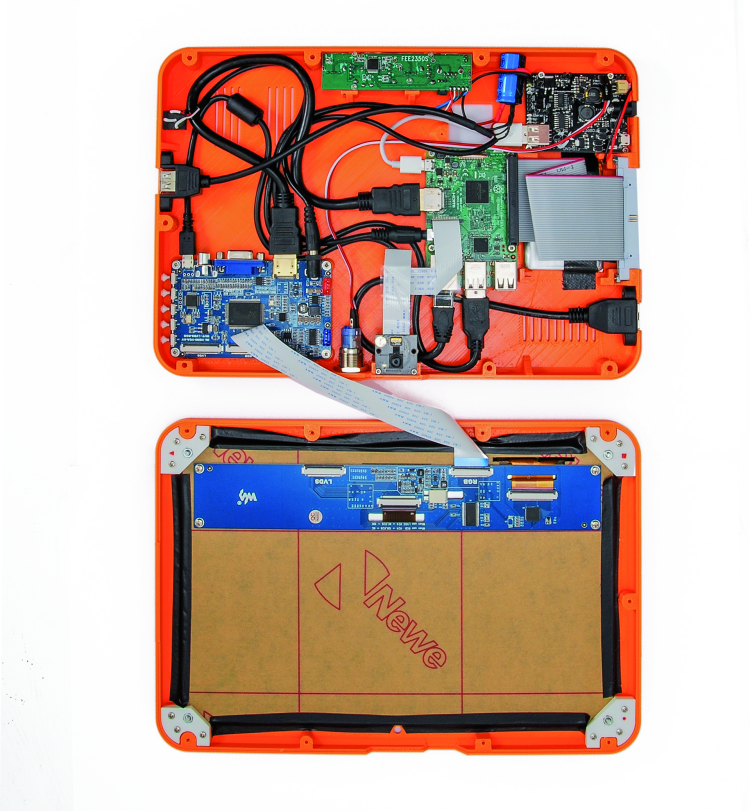

This kit includes all the electronics parts needed to make a PC all-in-on with touch screen Raspberry Pi 3 based, that can be used as a laptop and as a development platform. The case and the plastic base can be made with a 3D printer or can be purchased separately (see related products). Plastic case, stand, keyboard and mouse aren’t included.

• Core: Raspberry Pi 3
• Operative system: SD card with NOOBS supplied
• Built-in peripherals: 7 USB, Ethernet, camera
• Peripherals wireless: Bluetooth LE and WiFi built in Raspberry Pi
• Display: 10” touch-screen with HDMI input
• External power supply: 12Vcc (included)
• Battery: LiPo 3,7V – 4,2Ah
• Autonomy: about 1,5 hours

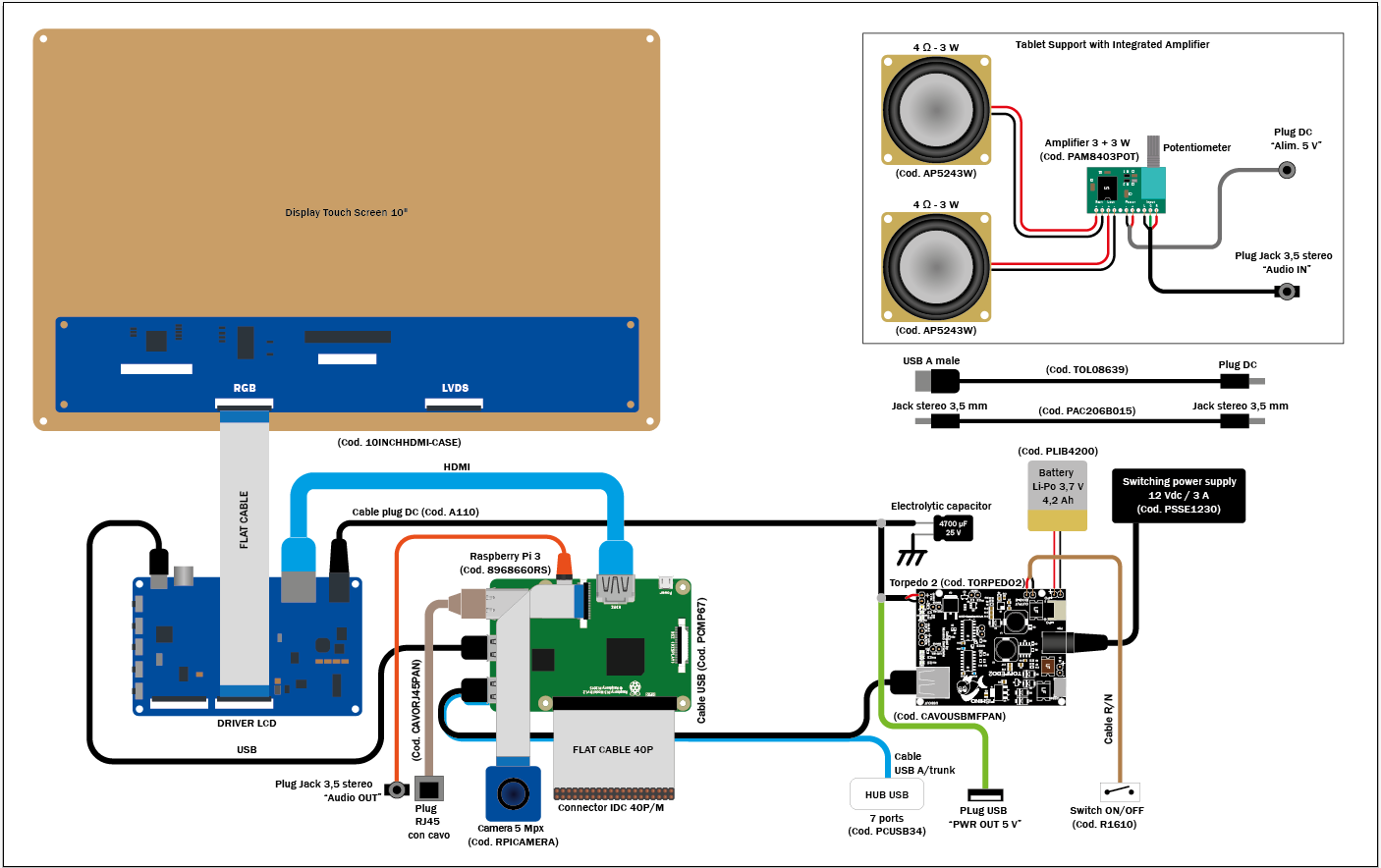

Kit includes

• Pc. 1 Wi-Fi and  BLUETOOTH Raspberry Pi 3 type B
• Pc. 1 Monitor 10” touch (included driver monitor board, HDMI M/M cable, USB A male/μUSB male)
• Pc. 1 Micro SD card 8 GB with NOOBS
• Pc. 1 Camera 5 Megapixel for Raspberry Pi
• Pc. 1 Power supply universal switching 3 A with integrated battery charger
• Pc. 1 Battery LiPo 3,7 V – 4200 mAh
• Pc. 1 HUB USB 7 port
• Pc. 1 Switching power supply 12 V – 3 A
• Pc. 1 Metal switch
• Pc. 1 Audio amplifier audio 3 + 3 W
• Pc 2 Speakers
• Small parts and cables

• Download file STL for case
• Download file STL for base

Anyone who haven’t a 3D printer can request the case of the tablet and the base of the desired color by selecting them from the related products.

Read the full article in our blog
