1.3” I2C OLED Display – GND/VCC/SCL/SDA

Module with a 128x64 pixel blue OLED (Organic Light Emitting Diode) display, I²C interface, SH1106 graphic controller, viewing angle approx. 160°
1.3” I2C OLED Display – GND/VCC/SCL/SDA - Image 1

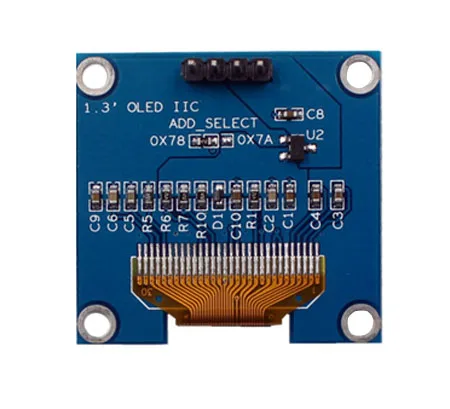

1.3” I2C OLED Display – GND/VCC/SCL/SDA - Image 3
1.3” I2C OLED Display – GND/VCC/SCL/SDA - Image 4

SKU 3085-OLEDI2C13EAN 8219671104364Item type: Assembled

Description

Module with blue OLED (Organic Light Emitting Diode) display, 128×64 pixels, I²C interface, SH1106 graphics controller, viewing angle approx. 160°. Good contrast, no backlight required. Power supply: 3.3 VDC – 5 VDC, board size (mm): 36x34x4.

Pinout: GND / VCC / SCL / SDA

Documentation and useful links

Technical details

Power supply 3.3 VDC – 5 VDC
board size (mm) 36x34x4
