1 kHz Signal Generator with Sine, Triangle, Square and Integrator Outputs

Output signals: sine, triangle, square wave and integrator (selectable via jumper)

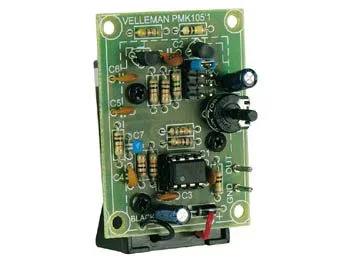

1 kHz Signal Generator with Sine, Triangle, Square and Integrator Outputs - Image 1

SKU 8220-MK105EAN 5410329001056Item type: Assembled, Kit

Description

Compact, versatile and ideal for electronics experiments, this signal generator offers four waveforms selectable via jumper: sine, triangle, square and integrator. With a fixed frequency of about 1 kHz, it is perfect for lab testing, simulations or educational applications. The amplitude is easily adjustable from 0 to 100 mV rms via the LEVEL potentiometer. Powered by a common 9V battery (not included), it is ready to go anywhere with you thanks to its compact 56 x 40 mm size. A practical, essential tool for anyone working with electronics.

FEATURES
– power supply : 9V battery (not included)
– dimensions : 56 x 40mm



Technical details

power supply 9V battery (not included)
dimensions 56 x 40mm
