12 mm Rotary Encoder with Knob

12 mm rotary encoder with knob, 20 steps/360° (18° per step)

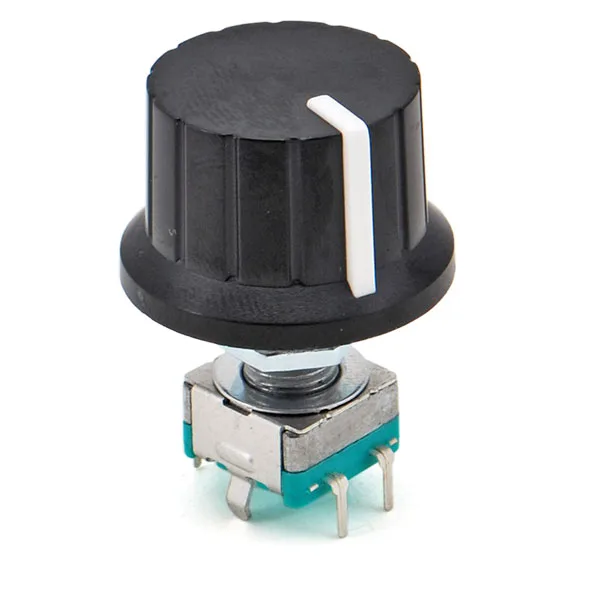

12 mm Rotary Encoder with Knob - Image 1

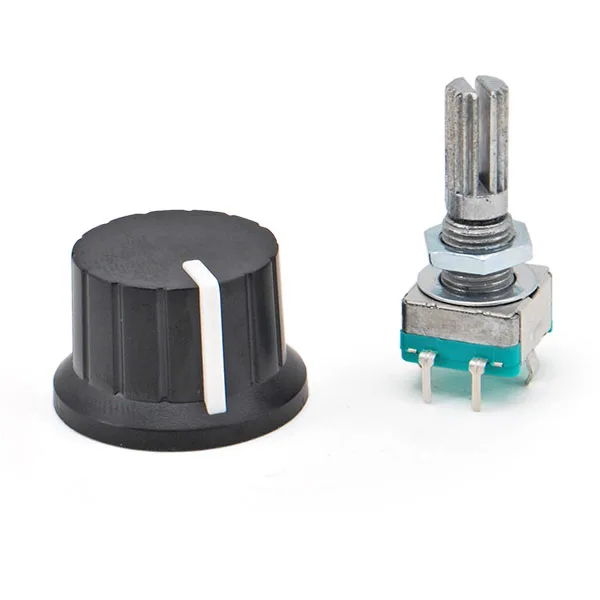

12 mm Rotary Encoder with Knob - Image 3

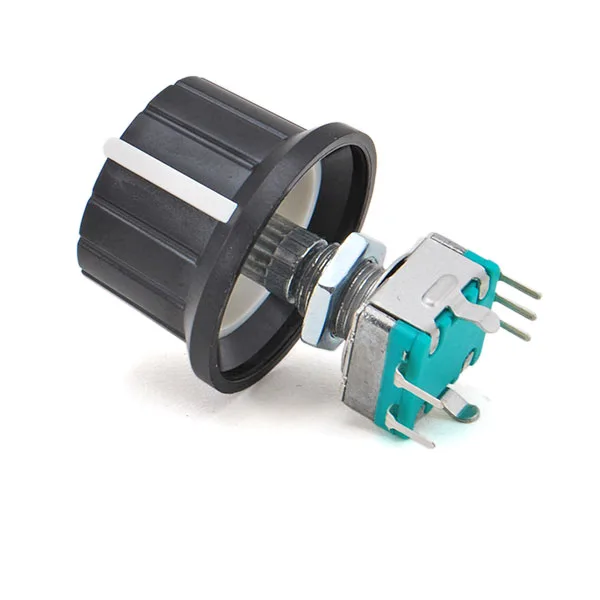

12 mm Rotary Encoder with Knob - Image 4

SKU 7719-ENCODER12MMEAN 8219671043502Item type: Assembled

Description

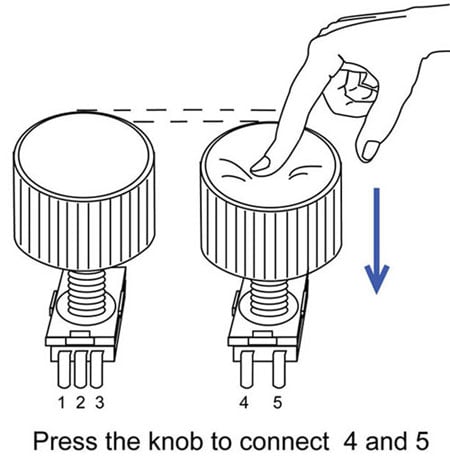

Encoder rotary Encoder rotary 12 mm with knob, 20 steps/360° (18° per step). The output signal is based on Gray code, which lets you tell which direction the encoder has been turned. It also has an N.O. pushbutton that activates when the encoder shaft is pressed down. Knob included.

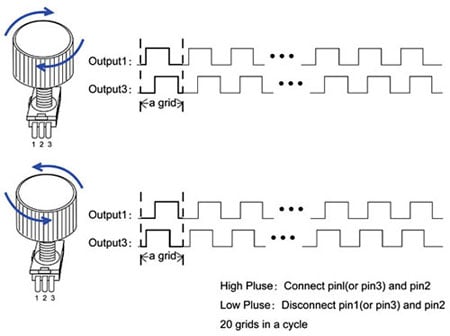

Operation
12 mm rotary encoder with knob
12 mm rotary encoder with knob

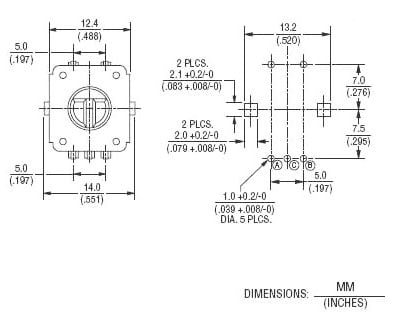

Dimensions
12 mm rotary encoder with knob - dimensions

Technical details

Output 2-bit Gray code
Closed circuit resistance 3 ohm
Insulation resistance 10 Mohm @ 250 VDC
Operating temperature -30°C to +70°C
Storage temperature -40°C to +85°C
Average life over 20,000 cycles
Protection rating IP 40
Weight 20 grams
