12 Vdc Vacuum Pump

It moves 9 to 15 litres a minute and pulls down to 16 inches of mercury, with five hours of continuous running allowed.

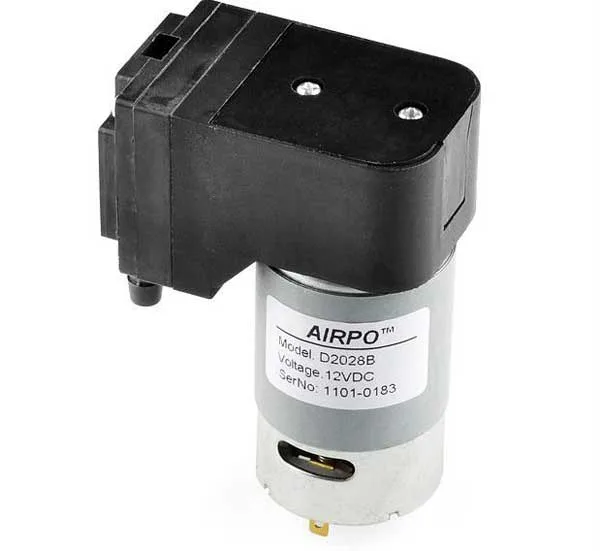

12 Vdc Vacuum Pump - Image 1

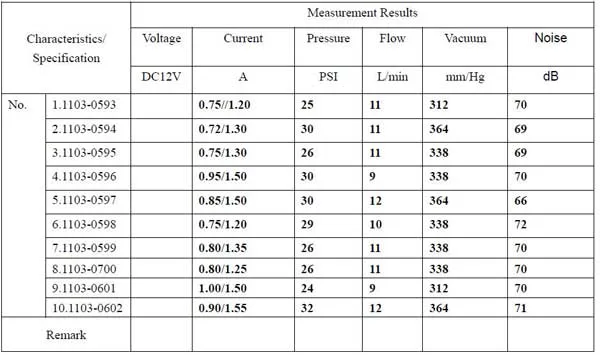

12 Vdc Vacuum Pump - Image 3

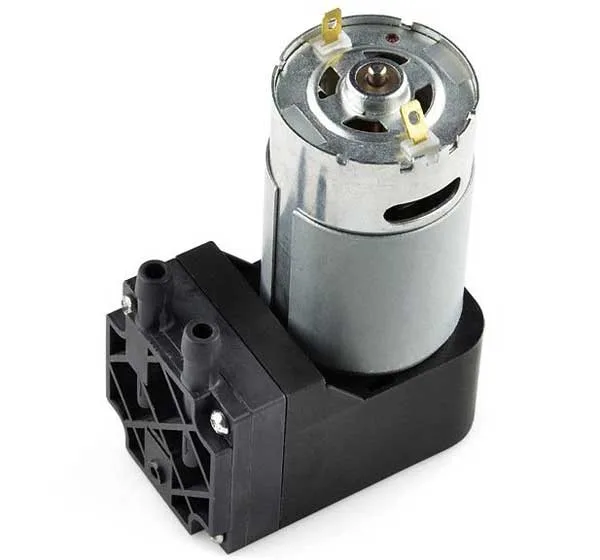

12 Vdc Vacuum Pump - Image 4

SKU 7300-ROB10398EAN 8219671036061Item type: Assembled

Description

Vacuum pump operating at 12 Vdc. Working range: from 9 l/min to 15 l/min, pressure range: from 0 to 32 PSI, vacuum range: from 0 to 16 Hg. Weight: 254 g, average life: 500 hours, operating temperature: from 0°C to 50°C, continuous operation: 5 hours. Maximum dimensions: 62.30 mm x 90 mm.

Documentation and useful links

Technical details

Working range from 9 l/min to 15 l/min
pressure range from 0 to 32 PSI
vacuum range from 0 to 16 Hg
Weight 254 g
average life 500 hours
operating temperature from 0°C to 50°C
continuous operation 5 hours
Maximum dimensions 62.30 mm x 90 mm
