12 Volt – 2 A Power Supply – Plug 2.5 – 2.1

Ultra-compact switching power supply with regulated 12 V - 2 A output and bayonet output plug (fits both 5.5x2.1 mm and 5.5x2.5 mm connectors)

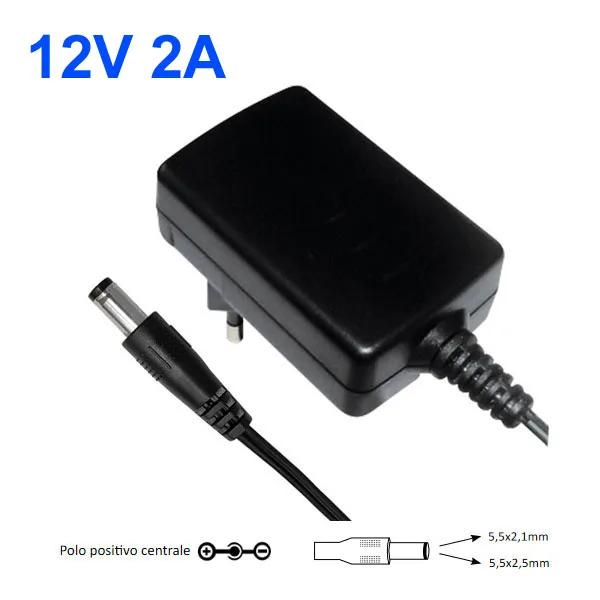

12 Volt - 2 A Power Supply - Plug 2.5 - 2.1 - Image 1

SKU 5600-AP12M2EAN 8059174950705Output voltage: 12 Vdc

Description

Ultra-compact switching power supply with regulated 12 V – 2 A output and bayonet output plug (fits both 5.5×2.1 mm and 5.5×2.5 mm connectors). Protected against short circuit, overload and overvoltage, it offers low ripple and noise, high efficiency and low no-load power consumption.

Technical details

Mains input 100-240 Vac, 50/60 Hz, 0.7 A
Power 24 watts max
Output voltage 12 Vdc - 2 A
No-load consumption 0.07 watts
Cable length approx. 1 m
Bayonet output plug fits both 5.5x2.1 mm and 5.5x2.5 mm connectors
Output plug polarity centre positive
Protections short circuit, overload and overvoltage
Operating temperature from 0°C to +40°C
Humidity from 25% RH (0°C) to 75% RH (40°C)
Dimensions (mm) 78x45.8x31
Weight 118 grams
