128×64 OLED Display – White Characters

Module with a 2.42” OLED (Organic Light Emitting Diode) display, 128x64 pixels, white characters, SPI / I²C interface (SPI by default, for I²C see the table), SSD1309 graphic controller, viewing angle approximately 80°

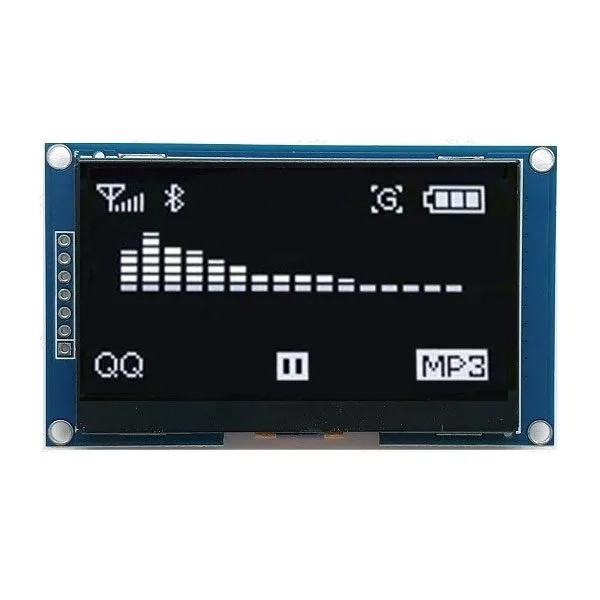

128x64 OLED Display - White Characters - Image 1

SKU 3085-OLED242WEAN 8219671111010Item type: Assembled

Description

Module with a 2.42” OLED (Organic Light Emitting Diode) display, 128×64 pixels, white characters, SPI / I²C interface (SPI by default, for I²C see the table), SSD1309 graphic controller, viewing angle approximately 80°. It offers good contrast and needs no backlight. Power supply: 3.3 VDC, dimensions (mm): 72x43x5.9, weight: 22 grams, operating temperature: from -40°C to +85°C.
Technical specifications

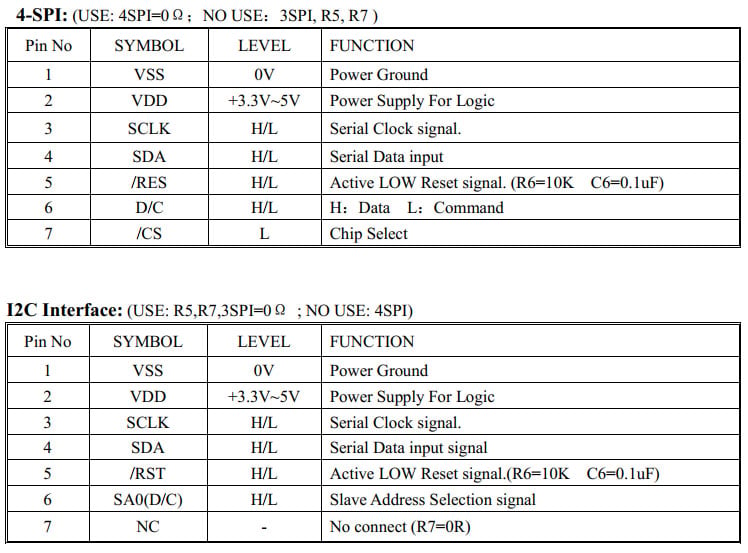

  • Pin assignment:
    1) GND
    2) VCC
    3) SCLK
    4) SDA
    5) RES
    6) DC
    7) CS
How to change the interface from SPI to I²C
Documentation and useful links

Technical details

Power supply 3.3 VDC
dimensions (mm) 72x43x5.9
weight 22 grams
operating temperature from -40°C to +85°C

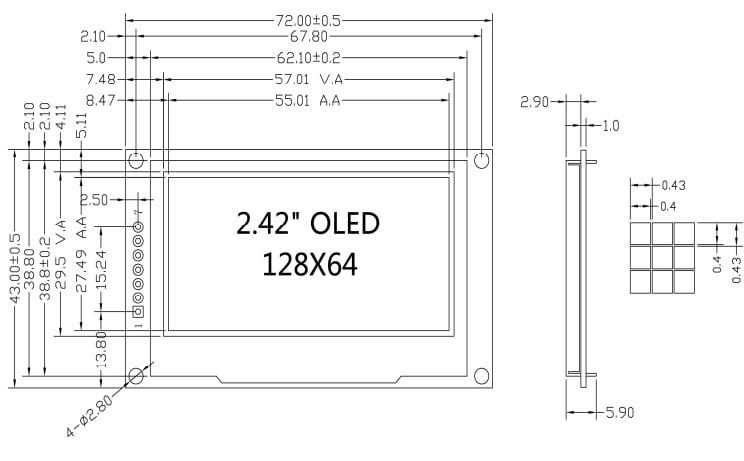

Active area (mm) 55x27.49
printed circuit board 72x43
