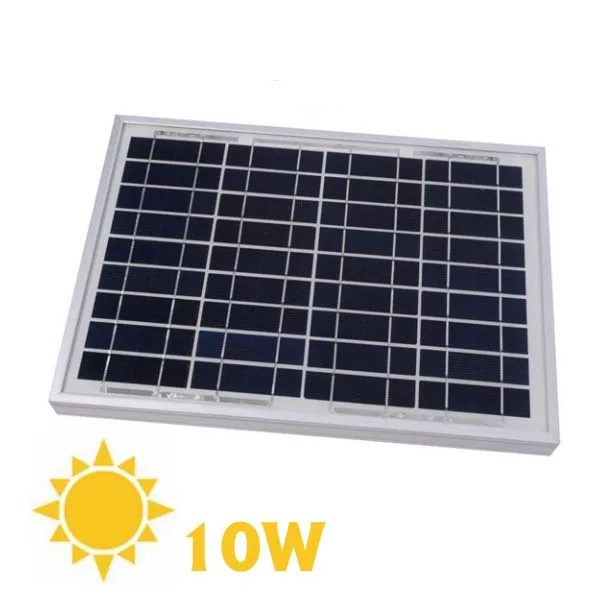

12V-10W Polycrystalline Solar Panel

10 watt polycrystalline module with an aluminium frame and tempered glass protection
12V-10W Polycrystalline Solar Panel - Image 1
12V-10W Polycrystalline Solar Panel - Image 3

SKU 8220-SOL10PEAN 5410329670726Item type: Assembled

Description

10-watt polycrystalline module with aluminum frame and tempered glass protection. Peak power: 10 W, voltage at maximum power point: 17.6 V, maximum current: 0.58 A, dimensions (mm): 356x253x30, weight: 1.16 kg. Easy to install, it can be used for small solar systems such as caravans, campers, lighting, etc.

Technical specifications

  • Voltage at maximum power point (Vmp): 17.6 V
  • Tempered glass
  • Mounted with sturdy aluminum frame

Technical details

Peak power 10 W
voltage at maximum power point 17.6 V
maximum current 0.58 A
dimensions (mm) 356x253x30
weight 1.16 kg
Type polycrystalline silicon
Number of cells 36 (4x9)
Nominal voltage 12 V
Peak power (Pmax) 10 W
Peak current (Imp) 0.58 A
Open-circuit voltage (Voc) 21.8 V
Short-circuit current (Isc) 0.61 A
Operating temperature -40°C to +85°C
