Monocrystalline solar panel 12V-100W

100-watt monocrystalline solar panel with an aluminium frame, protected by tempered glass

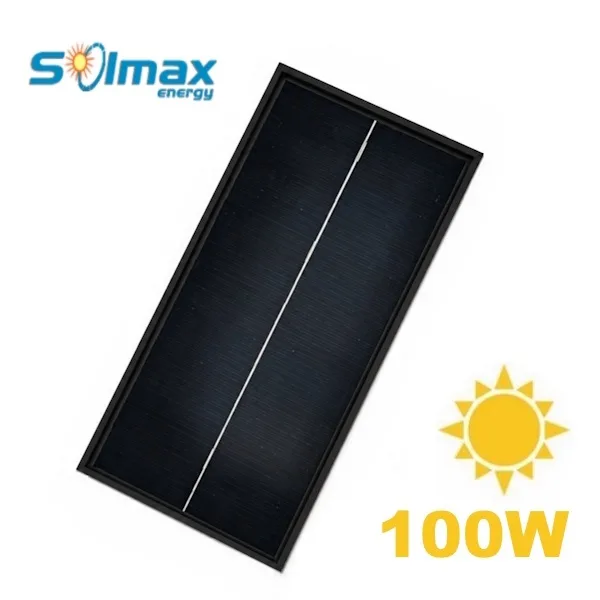

Monocrystalline solar panel 12V-100W - Image 1

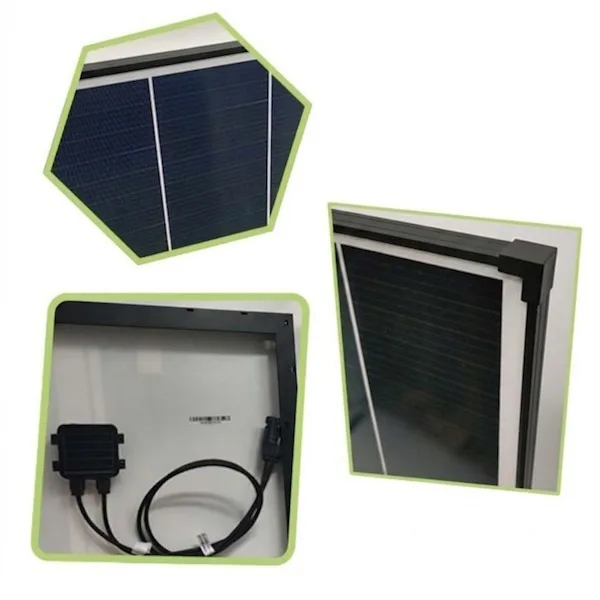

Monocrystalline solar panel 12V-100W - Image 3

SKU 8242-SOL100MNEAN 8219671114387

Description

100-watt monocrystalline solar panel with an aluminium frame, protected by tempered glass. Peak power: 100 W, voltage at maximum power point: 18.56 V, maximum current: 5.39 A, dimensions (mm): 1190x450x30, weight: 5.80 kg. Easy to install, it can be used for small solar systems, boats, yachts, campers, camping, lighting, etc.
Technical features
  • Voltage at maximum power point (Vmp): 18.56 V
  • Tempered glass
  • Fitted with a sturdy aluminium frame
  • Operating temperature: from -40°C to +85°C
  • Weight: 5800 grams

Technical details

Peak power 100 W
voltage at maximum power point 18.56 V
maximum current 5.39 A
dimensions (mm) 1190x450x30
weight 5.80 kg
Nominal voltage 12 V
Type monocrystalline silicon
Efficiency 18.92%
Peak current (Imp) 5.39 A
Open-circuit voltage (Voc) 21.76 V
Short-circuit current (ISC) 5.72 A
Junction box protection rating IP67
Cables 2.5 mm2, cross-section, 50 cm length
Connector type MC4-compatible
