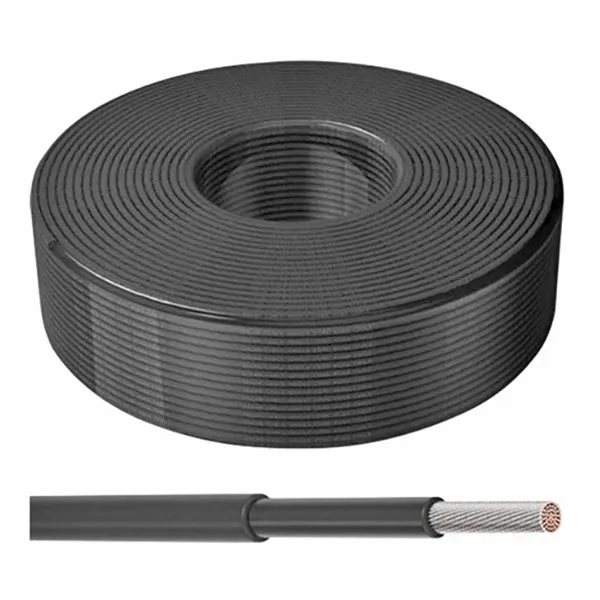

H1Z2Z2-K Solar Cable 6mm², 1500V, Black – 1 m with Double XLPE Insulation

H1Z2Z2-K Solar Cable 6mm², 1500V, Black - 1 m with Double XLPE Insulation - Image 1

SKU 8240-H1Z2Z2KBLACKEAN 4040849500930Item type: Assembled,

Description

H1Z2Z2-K solar cable designed for photovoltaic distribution and DC current conduction. Fitted with reinforced, halogen-free double XLPE insulation, it offers excellent resistance to UV rays, ozone and mechanical stress. Fire-retardant and compliant with EN 50618, it's suitable for both indoor and outdoor use. The sale price refers to one meter of cable.
High-quality H1Z2Z2-K type solar cable, designed for photovoltaic distribution and DC current conduction. The reinforced, halogen-free double XLPE insulation ensures excellent resistance to UV rays, ozone, oxygen, oils and mechanical stress. This cable is fire-retardant and self-extinguishing, compliant with EN 50618, and suitable for both outdoor and indoor use.

Note: The sale price refers to one meter in length and, if you purchase more than one meter, the cable will be shipped in a single piece.

Technical details

Cable type H1Z2Z2-K
Conductor cross-section 6 mm²
Maximum conducted voltage 1500Vdc
Maximum current 70A
Color black
Sheath double, halogen-free XLPE
Outer diameter 7.1 mm
Core 99.9% oxygen-free copper, made up of 78 strands
Maximum DC resistance Ω/km 3.52
Operating temperature -40°C to +90°C
Certifications TUV, ISO, CE
Protection rating IP65
