MC4 Branch Connector 2M/1F for Parallel Connection of Solar Panels

Ideal for connecting solar panels in parallel, ensuring safe and reliable connections in high-performance photovoltaic systems.

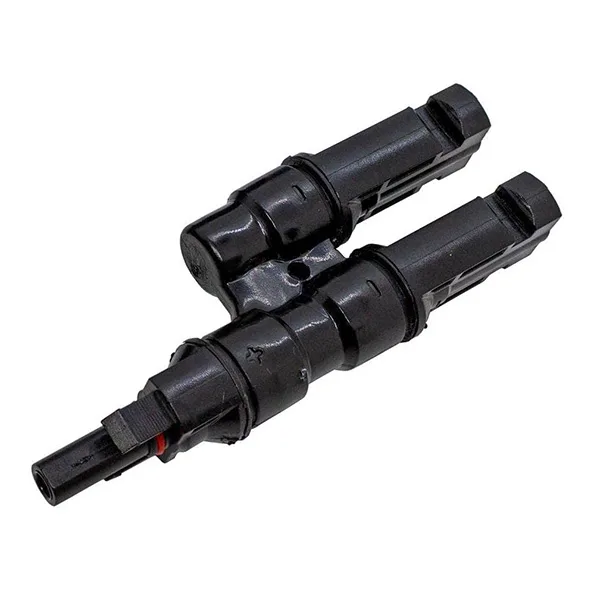

MC4 Branch Connector 2M/1F for Parallel Connection of Solar Panels - Image 1
MC4 Branch Connector 2M/1F for Parallel Connection of Solar Panels - Image 3

SKU 1606-SOLCONT1F2MEAN 8219671117272Item type: Assembled

Description

MC4 branch connector with 1 female connector and 2 male connectors, ideal for combining the output of multiple panels and increasing the overall power of the system. Thanks to its ability to handle voltages up to 1500 V DC and currents up to 50 A, it offers high performance and reliability.

Technical details

Operating voltage 1500 Vdc
Rated current 50 A
Protection rating IP67 (water and dust resistant)
Transition resistance <0.5mΩ
Cable compatibility 2.5mm², 4mm², 6mm²
Operating temperature -40° ~ 90°C
