MC4 Branch Connector 1M/2F for Parallel Solar Panel Connections

Ideal for connecting solar panels in parallel, giving safe, reliable connections in high-performance photovoltaic systems.

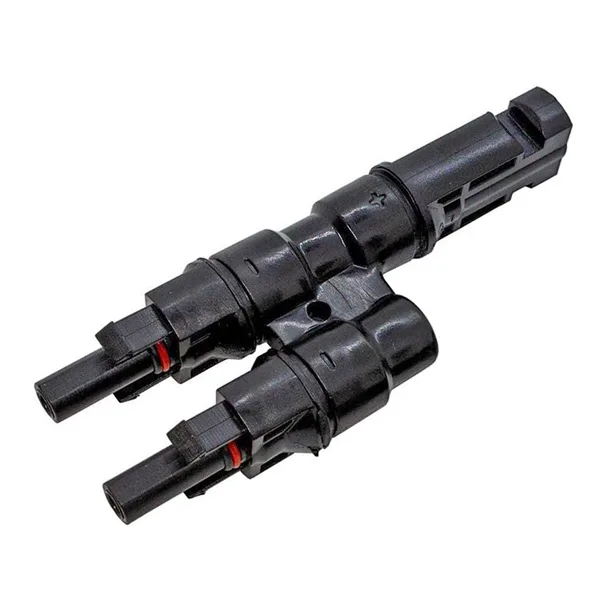

MC4 Branch Connector 1M/2F for Parallel Solar Panel Connections - Image 1

SKU 1606-SOLCONT1M2FEAN 8219671117272Item type: Assembled

Description

MC4 branch connector with 1 male connector and 2 female connectors, ideal for combining the output of several panels and increasing the total power of the system. Able to handle voltages up to 1500 V DC and currents up to 50 A, it offers high performance and reliability.

Technical details

Operating voltage 1500 Vdc
Rated current 50 A
Protection rating IP67 (water- and dust-resistant)
Transition resistance <0.5mΩ
Cable compatibility 2.5mm², 4mm², 6mm²
Operating temperature -40° ~ 90°C
