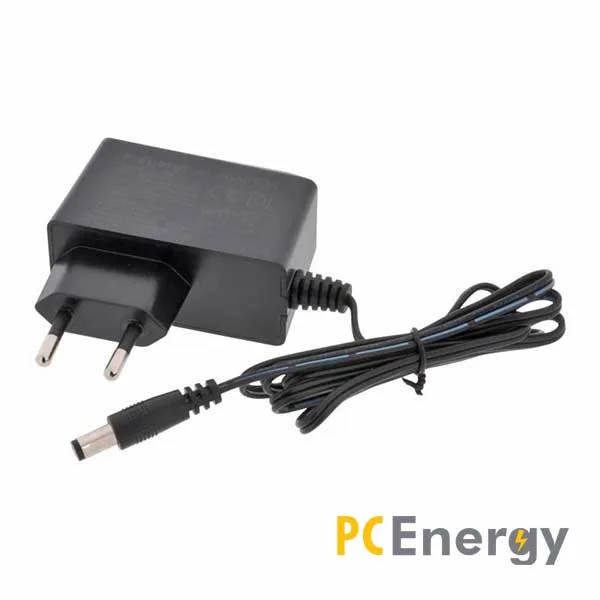

12V / 1A Switching Power Supply – 12W

Description

Compact mains switching power supply with a regulated 12V DC output, a maximum current of 1A and a power rating of 12W. Thanks to its standard 5.5 x 2.1 mm DC connector, it is compatible with a great many electronic devices such as routers, docking stations, media players, motor control systems and office equipment.

The 83% energy efficiency helps keep consumption and heat production down during continuous operation. To guarantee reliability and safety, it has built-in protection against overload, overvoltage, overheating and short circuit.

Compliant with the RoHS and REACH directives, certified TÜV / GS and meeting the main European safety and electromagnetic emission standards, it is a reliable solution for powering devices that require a DC voltage of 12V.

Key features

• High energy efficiency (83%)

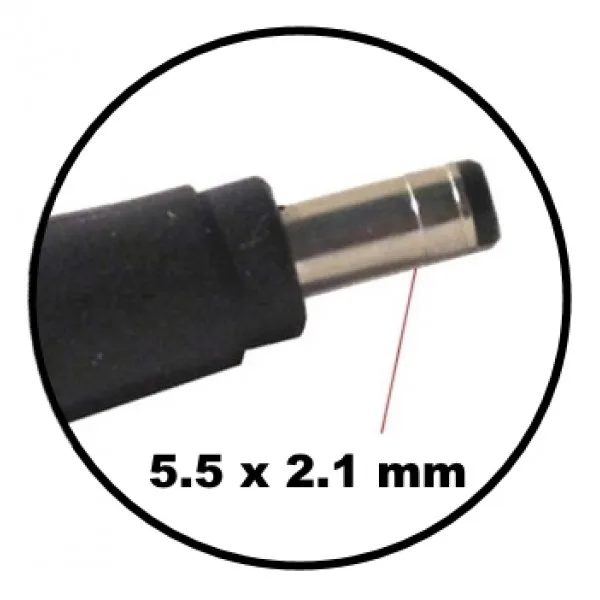

• P1J-type DC power connector (5.5 × 2.1 × 10 mm)
• Protection against overload, overheating, overvoltage and short circuit
• Compliant with the RoHS and REACH directives
• TÜV certified /
• GS Compliant with the standards:
  • EN IEC 55014-1
  • EN IEC 55014-2
  • EN IEC 61000-3-2
  • EN 61000-3-3

Technical specifications

• Dimensions (body without cable): 63.5 × 28.6 × 40 mm (77.6 mm with the power connector) (L × D × H)
