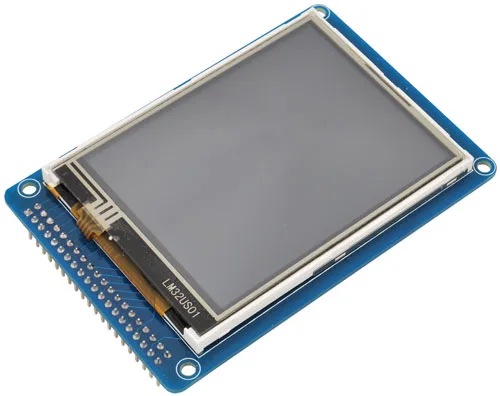

3.2” touch screen display module with SD Card slot

Description

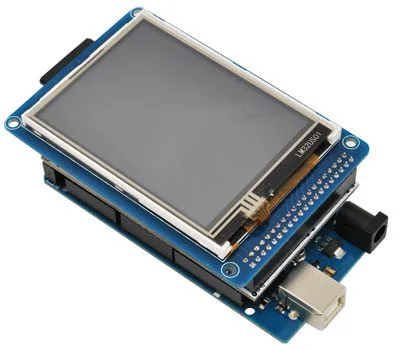

3.2″ TFT LCD display with resistive touch screen, SSD1289 graphic controller, 320×240 pixel resolution, 262,000 colors, white LED backlight, 2×20 pin connector and SD card slot. All control pins for the LCD, SD card and Touch are available on the 2×20 connector. Ideal for applications that need to display data, photos and videos, it can be interfaced to PIC, 8051, Arduino microcontrollers, etc. Power supply: 3.3 Vdc, dimensions (mm): 94.50 x 65.00 x 9, weight: 100 grams. The touch display can be paired, for faster and easier use with Arduino Mega REV3, with the dedicated shield sold separately with code 2846-SHIELDTFTLCD32. Note: the package includes only the touch screen display module.

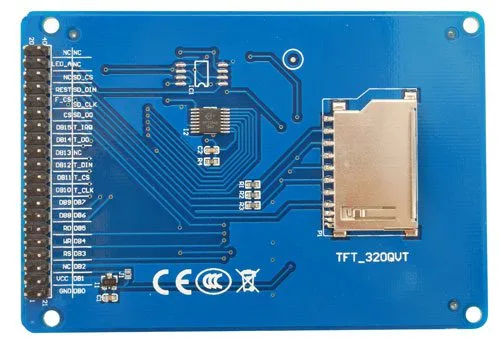

Technical specifications

• Pin 15: LCD_CS
• Pin 16: F_CS
• Pin 17: LCD_RESET
• Pin 18: N.C.
• Pin 19: LED_A
• Pin 20: N.C.
• Pin 21: LCD_DB0
• Pin 22: LCD_DB1
• Pin 23: LCD_DB2
• Pin 24: LCD_DB3
• Pin 25: LCD_DB4
• Pin 26: LCD_DB5
• Pin 27: LCD_DB6
• Pin 28: LCD_DB7
• Pin 29: TouchP_CLK
• Pin 30: TouchP _CS
• Pin 31: TouchP _DIN
• Pin 32: N.C.
• Pin 33: TouchP _DOUT
• Pin 34: TouchP _Penirq
• Pin 35: SD_DOUT
• Pin 36: SD_CLK
• Pin 37: SD_DIN
• Pin 38: SD_CS
• Pin 39: N.C.
• Pin 40: N.C.

Documentation and useful links

• SSD1289
• UTFT library and examples
• UTFT library for display marked TFT_320QVT_9341 (replace the graphic controller in the sketch, click here)
