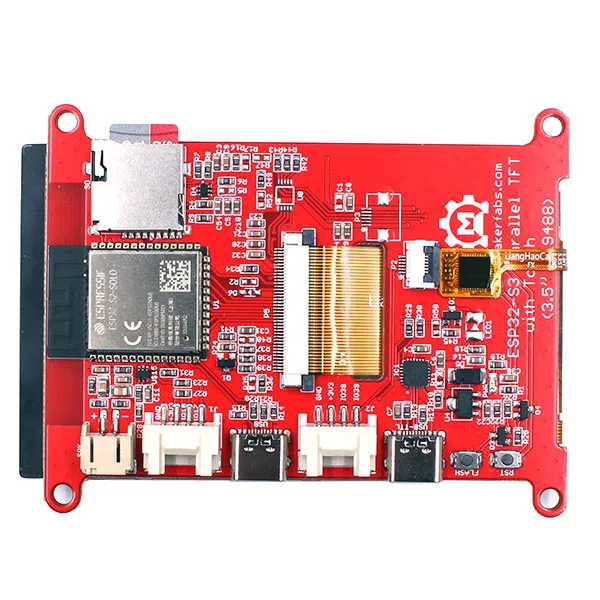

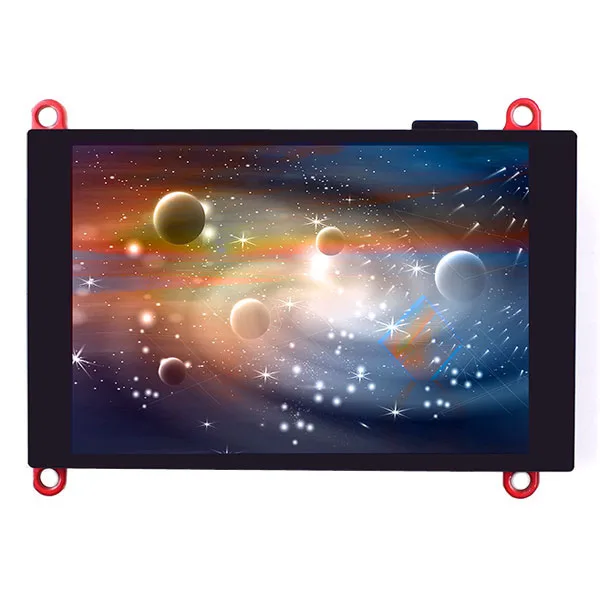

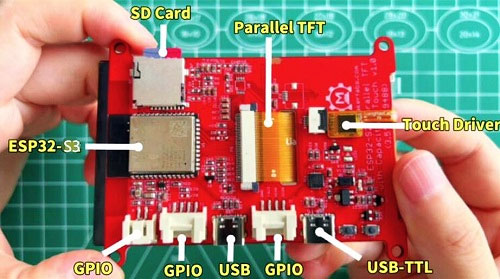

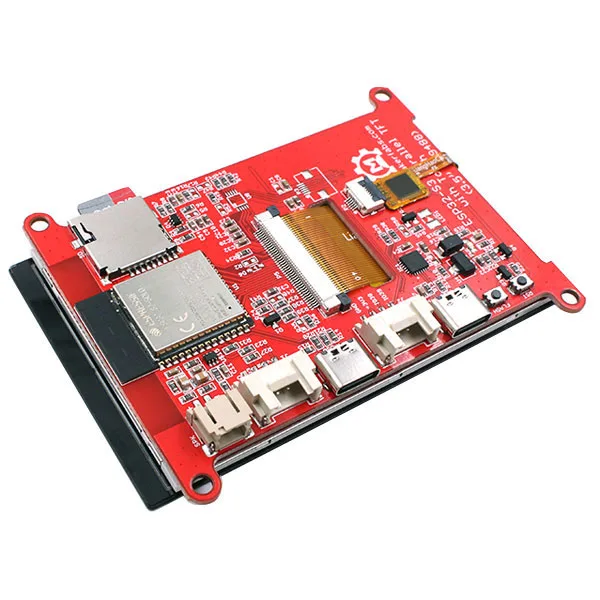

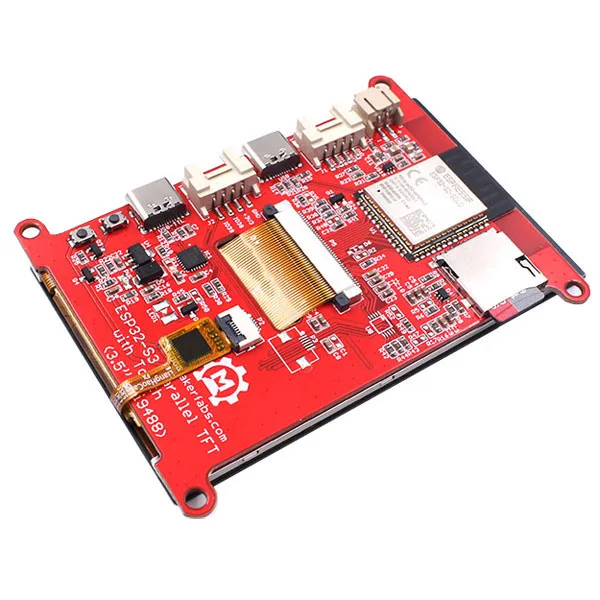

3.5″ Parallel TFT Display with ESP32-S3
3.5-inch TFT display with a capacitive touch screen, ILI9488 graphics controller, ESP32-S3 module and SD card slot.
SKU 3085-ESP32S335DEAN 8219671104517Item type: Assembled, BoardDisplays, ESP8266 / ESP32, IoT (Internet of Things)
Description
| Take your IoT projects to a new level with this 3.5-inch TFT display with capacitive touch screen and ILI9488 graphics controller. This high-quality module carries the powerful ESP32-S3 module and an SD card slot, giving you a complete solution for every project that needs a good display. Thanks to the 16-bit parallel bus to the ESP32-S3 and its clock rate of up to 20 MHz, the display gives extremely smooth video playback. Every detail is sharp and lifelike, for a truly immersive viewing experience. On top of that, the ESP32-S3 module has Bluetooth 5.0, which makes it ideal for local monitoring and control applications. You can connect the display to your IoT devices and control them simply and intuitively. Get the most out of your viewing experience and make the most of your IoT projects with this 3.5-inch TFT display with capacitive touch screen and ILI9488 graphics controller. Choose quality, versatility and power for your display projects. |
|
Technical specifications
|
 |
|
|
Documentation and useful links
|
Technical details
| Controller | ESP32-S3-WROOM-1, PCB antenna, 16 MB flash, 2 MB PSRAM, ESP32-S3-WROOM-1-N16R2 |
|---|---|
| Wireless | Wi-Fi and Bluetooth 5.0 |
| LCD | 3.5-inch TFT LCD |
| Resolution | 480*320 |
| Colour | RGB |
| LCD interface | 16-bit parallel |
| LCD driver | ili9488 |
| Touch panel | capacitive |
| Touch panel driver | FT6236 |
| UART-to-UART chip | CP2104 |
| Power supply | USB Type-C 5.0 V (4.0 V ~ 5.25 V) |
| Buttons | Flash button and reset button |
| Mabee interface | 1xI2C; 1xGPIO |
| Backlight controller | Yes |
