30-90 second voice recorder/player

Single-message voice recorder/player

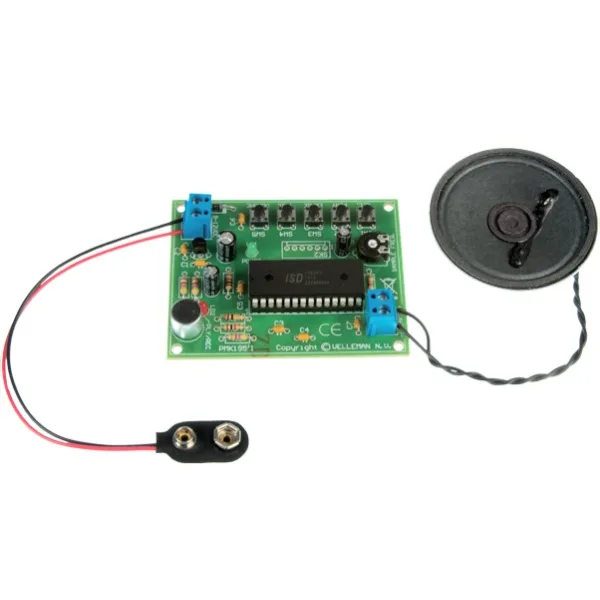

30-90 second voice recorder/player - Image 1

SKU 8220-MK195EAN 5410329558321Item type: Kit

Description

Single-message voice recorder/player. Recording time from 30 to 90 seconds, external open-collector inputs (record, play, erase, next message, and volume), trimmer for adjusting playback speed. Microphone and 57 mm speaker. Can be used for welcome messages, message playback, etc.

Technical details

Power supply 9 to 12 V
Current consumption max. 150 mA (playback) - max. 6 mA in standby
Sampling rate adjustment 5 to 12 kHz
Speaker output 500 mW max., 8 ohm
Dimensions 77 x 60 x 15 mm
