4.3 inch touch screen display 800×480

Description

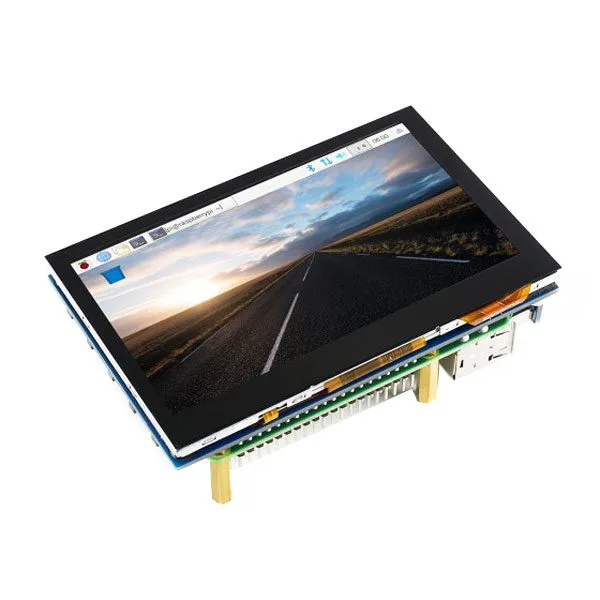

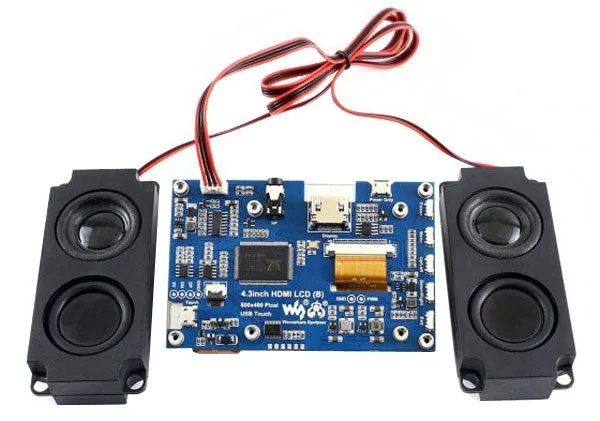

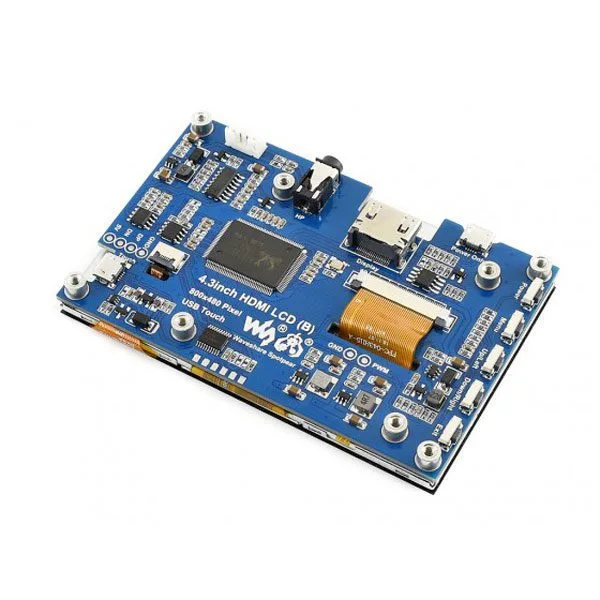

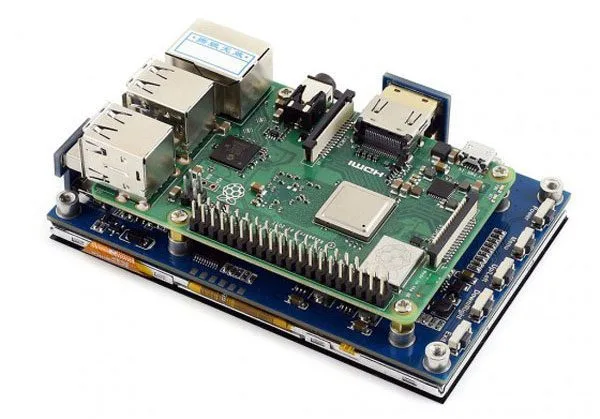

4.3″ color IPS display (In-Plane Switching) with capacitive touch screen for Raspberry Pi (which can be mounted directly on the back). It features a resolution of 800×480 pixels (software-configurable up to 1920×1080), HDMI port (supports audio output), micro USB port for touch screen control, micro USB port for power, control buttons (backlight on/off, multilingual OSD menu, Up/Left and Down/Right navigation, exit), 3.5 mm jack for earphones and speaker connector. When working with Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie / WIN10 IOT.
It can also be used with Jetson Nano, Beagle Board Black, Banana Pi. This monitor is suitable not only for Raspberry Pi, but can work as a computer monitor (for Windows 10 / 8.1 / 8 / 7), just like any other generic HDMI screen (touch function not available in this case). Thanks to the backlight control, it is possible to reduce power consumption.

The package includes:

• the 4.3″ monitor
• USB (A) – micro USB (B) cable
• HDMI cable (B)
• USB adapter
• HDMI adapter
• four M/F spacers 8 mm long, four 4 mm long and four screws.

Warning! Raspberry is not included and speakers are not included (see related products).

Speakers not included (see related products)

Documentation and useful links

• www.waveshare.com/wiki/4.3inch_HDMI_LCD_(B)
