4” 7-Segment LED Display Control Board with I²C Interface and Arduino Nano Support
It is modular up to 8 digits and mounts on the back of 4-inch (about 10 cm) common-anode 7-segment LED displays.
SKU 7100-FT1633KEAN 8219671093019Item type: AssembledDisplays
Description

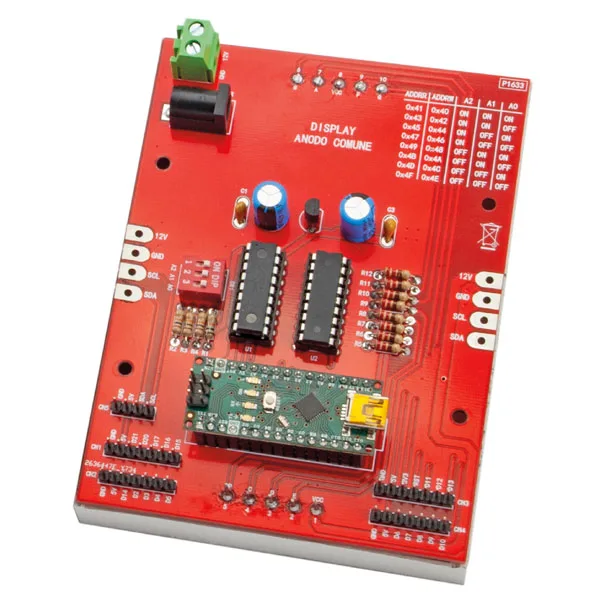

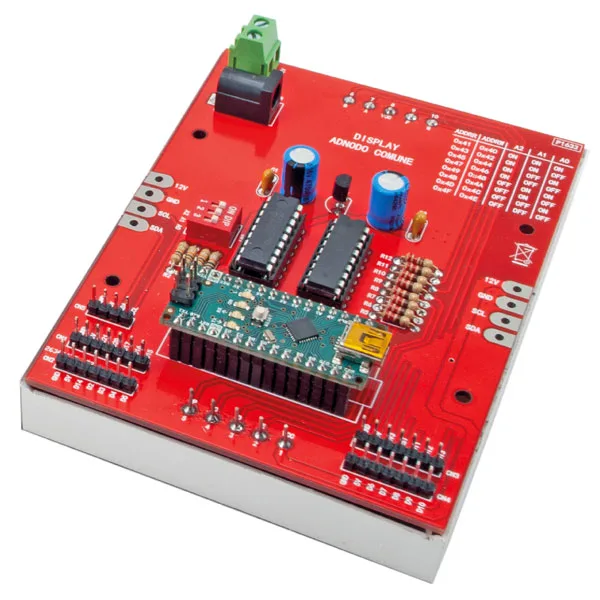

| Control board with a 4-inch (about 10 cm) common-anode red 7-segment LED display. It lets you add electronics that turn a single digit into a display unit with an I²C-Bus interface and, if you wish, make it “smart” by fitting an Arduino Nano (not included, see related products); in that case the display can not only become a subsystem able to talk, for example, to sensors and to a radio remote control (to build a queue-management system) or to WiFi modules for wireless control, but it can also become modular, with the Arduino-equipped digit acting as the Master of the I²C bus and driving up to seven further displays (these without an Arduino board). It is modular up to 8 digits and mounts on the back of the display.

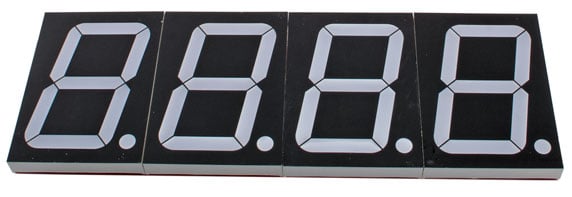

The kit includes the common-anode red 7-segment LED display |

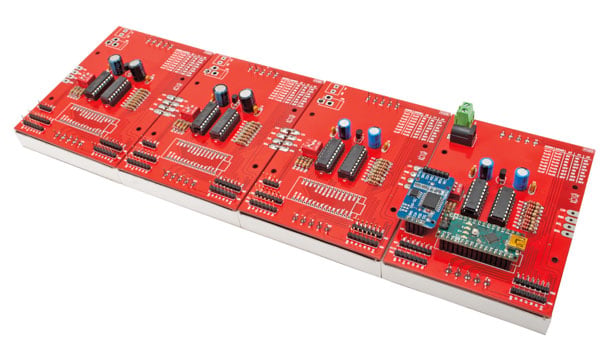

| Example of use |
|

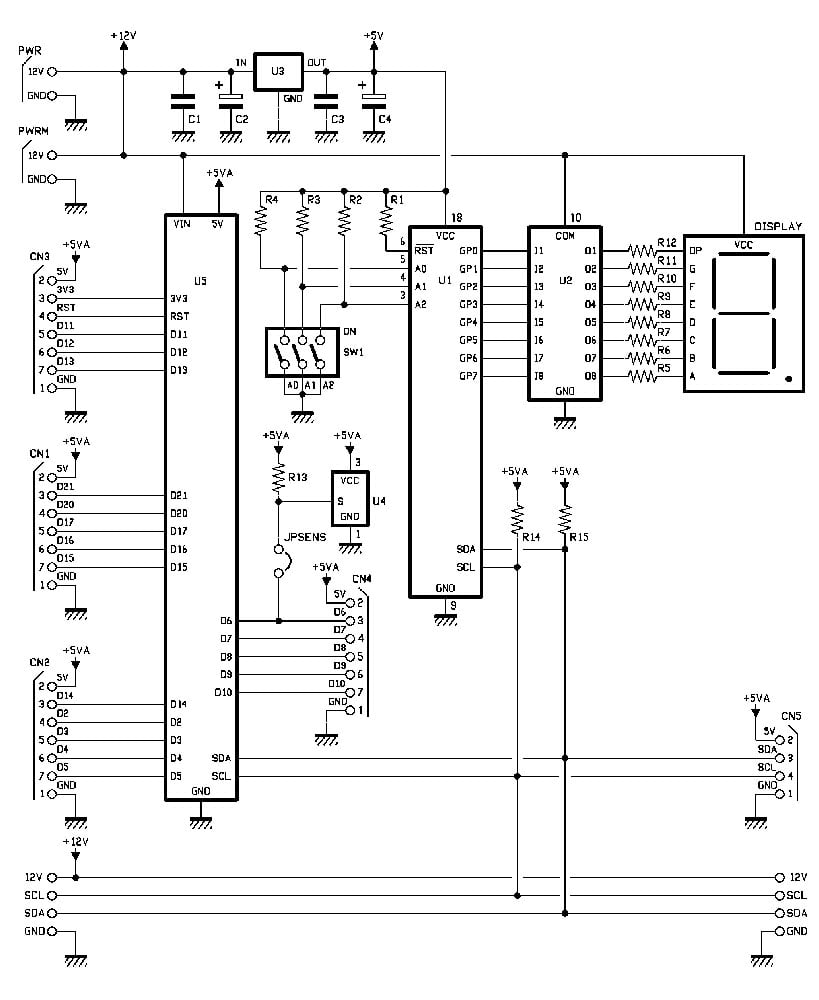

| Circuit diagram (click the image to enlarge) |
 |
| Technical specifications |
|
Technical details
| Supply voltage | 12 Vdc |
|---|---|
| Max current draw | 1A |
| Display | 7-segment LED |
| Digit size | 101x60 mm |
| Digits that can be linked | 8 |
