4-digit 7-segment display – green

Name: 4-digit 7-segment display - green
SKU: 2846-4DIGMODI2CGR
Price: 4.50 EUR
Availability: InStock

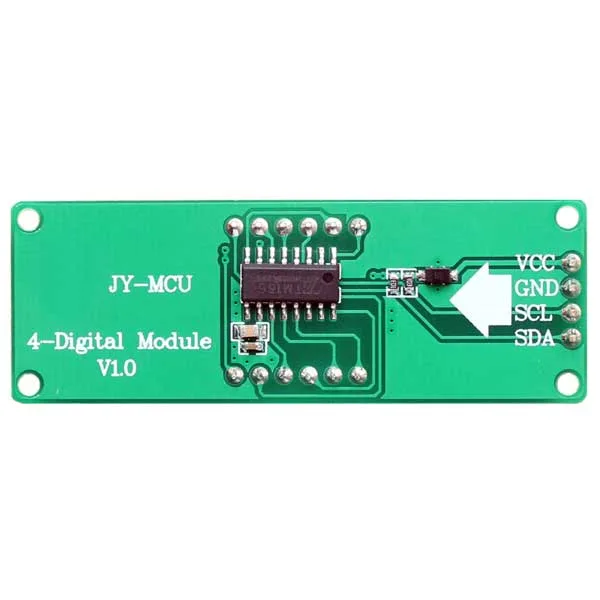

Module built around a 4-digit common cathode green 7-segment LED display with an I²C interface based on the TM1650 chip

SKU 2846-4DIGMODI2CGREAN 8219671105439Item type: AssembledDisplays

Description

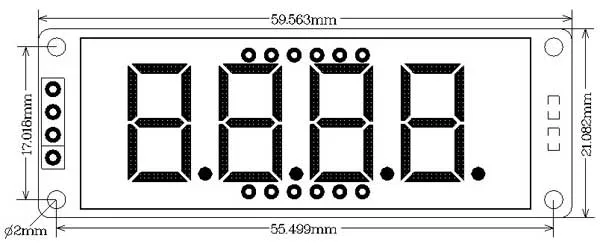

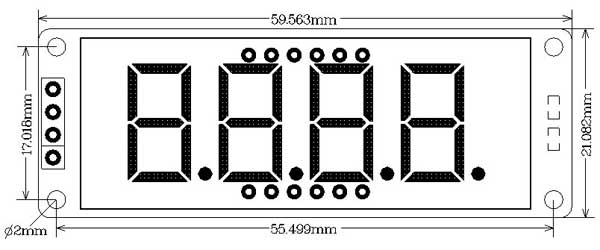

Module built around a 4-digit common cathode green 7-segment LED display with an I²C interface based on the TM1650 chip. Brightness can be set over 8 levels (through external control), and the board has reverse polarity protection on the supply and four decimal points (one per digit). Size (mm): 59,56x21x17 Display size (mm): 50x19x8 Digit height: 14.2 mm Power supply: 3.3 Vdc to 5.5 Vdc Weight: 15 grams. Well suited to use with Arduino, Fishino or any other microcontroller. The documentation and useful links section carries the Arduino/Fishino library and a worked example for an irrigation system (some of the parts are listed under “Related Products”).



Technical specifications

4-digit common cathode green 7-segment LED display with one decimal point per digit Four 2 mm mounting holes Reverse polarity protection on the supply

Documentation and useful links
TM1650 driver library Irrigation system example

Size (mm)	59,56x21x17
Display size (mm)	50x19x8
Digit height	14.2 mm
Power supply	3.3 Vdc to 5.5 Vdc
Weight	15 grams
Driver chip	TM1650, supports 8 brightness levels
Interface	I²C
