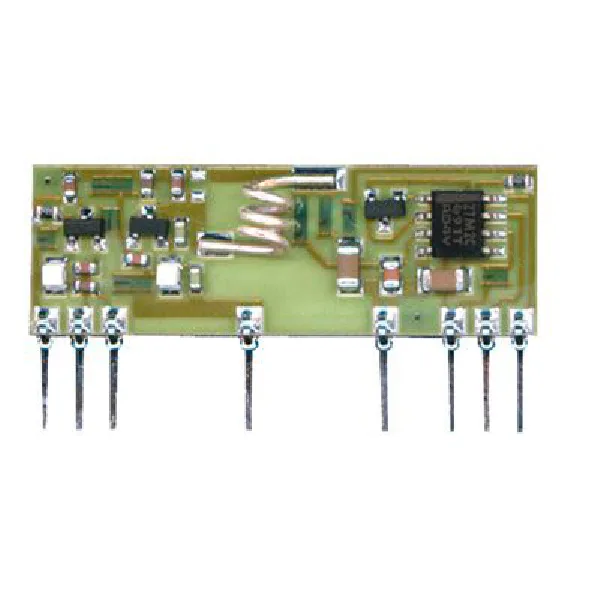

433 MHz 3V RECEIVER

Description

Low-cost, low-consumption receiver with a 3 volt (± 10%) supply voltage, narrow RF band, high immunity to supply noise and low antenna radiation. Operating frequency 433.92 MHz, RF bandwidth of ± 1.5 MHz (within 3 dB), AF bandwidth 2.5 KHz. Mid-band sensitivity better than 5 µV. Power supply with RC filter for noise elimination, typical consumption of 0.4 mA. Output logic level normally low in the absence of an RF signal, turn-on time less than 2.5 seconds. “In line” format with dimensions of 38.1 x 13.7 x 5.5 mm pins with 2.54 mm pitch.
