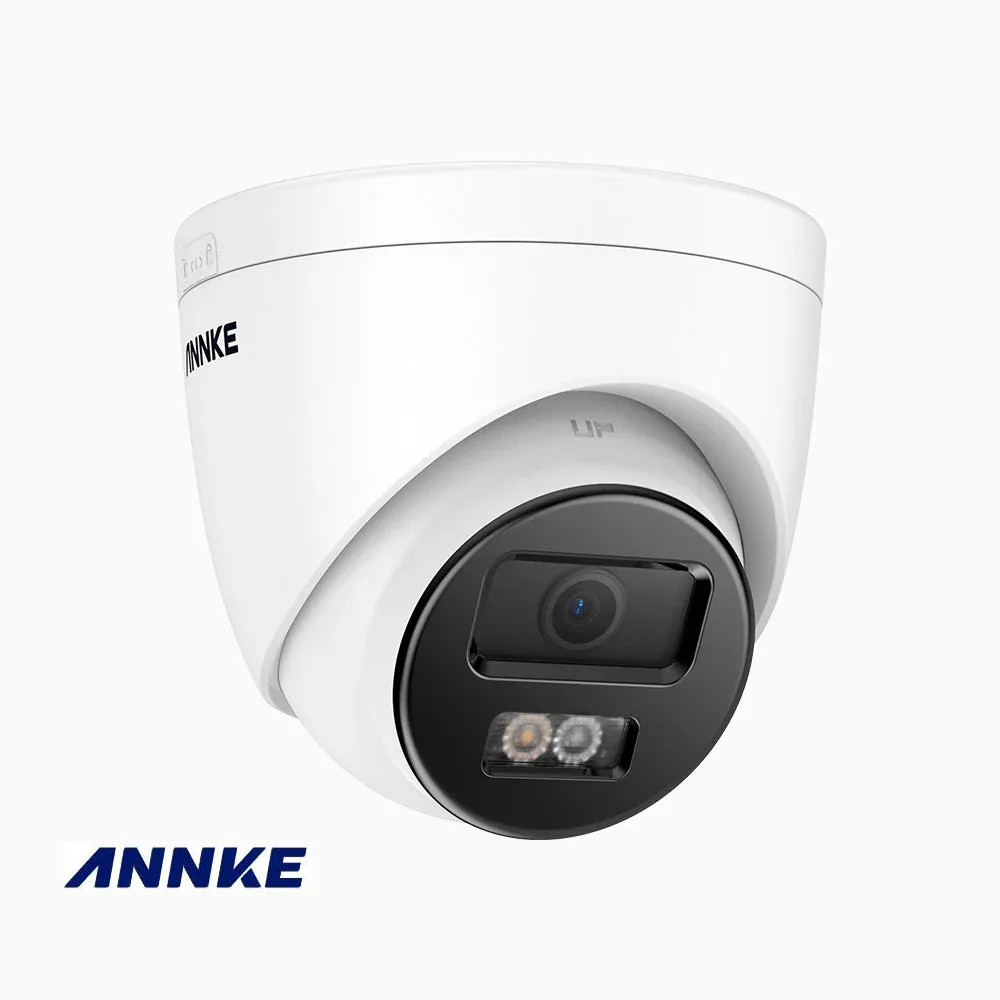

4K PoE Outdoor Dome Camera with AI Detection

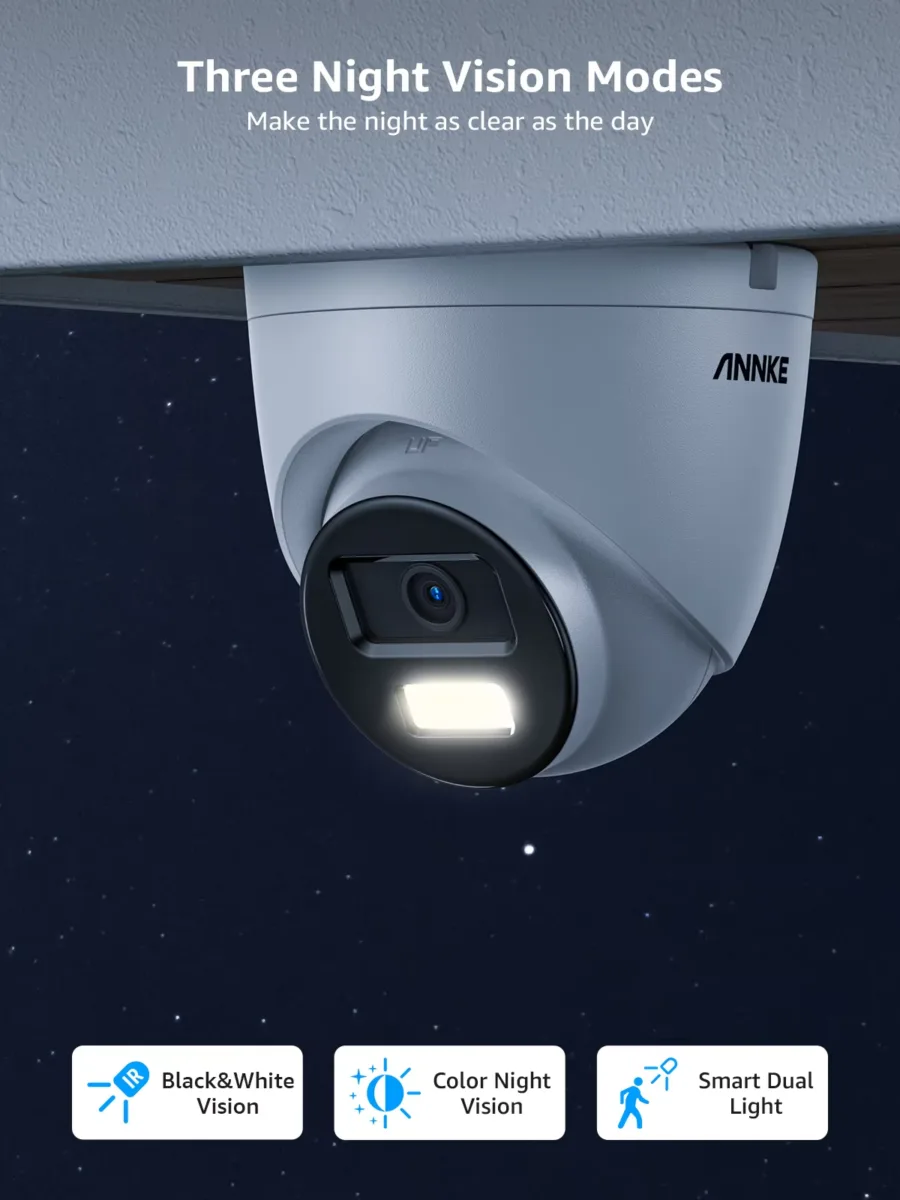

Catch the Smallest Details at Night Too, with Smart Dual Light

Smart Dual Light is the default mode: when filming at night, the camera uses infrared light to pick out the subject precisely. The moment movement is detected, the white light comes on automatically and infrared mode is switched off, giving colour images of outstanding clarity.
You can also select infrared-only or white-light-only mode, to suit different lighting conditions and give an excellent picture even in the most demanding situations.

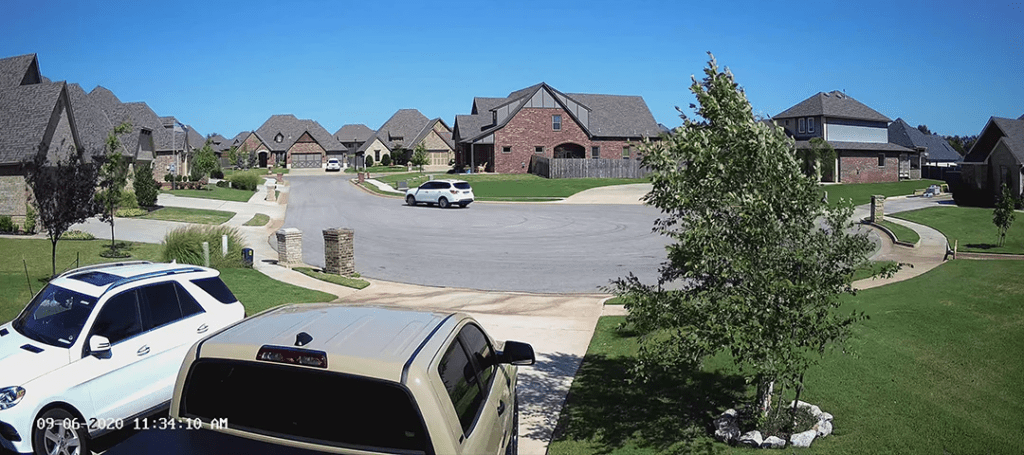

4K Ultra HD Resolution

The 4 mm lens, paired with a high-end 1/2.4″ Progressive Scan CMOS sensor, gives a field of view of up to 96° and the best footage in 4K Ultra HD in any setting. Advanced image enhancement algorithms, including 120 dB of WDR, 3D DNR, BLC and HLC, let the camera capture stunning 4K images at any light level.

Person and Vehicle Detection

Advanced person and vehicle detection picks out people and vehicles only, helping to cut down unwanted alarms caused by animals or by inanimate objects such as swaying branches, falling leaves, raindrops and the like.

Real-Time Notifications

Notifications are sent out the moment suspicious movement is detected, so you can react to any intrusion straight away.
Thanks to advanced artificial intelligence, people, vehicles and random movement are told apart accurately, avoiding false alarms caused by animals or by objects moved by the wind. The detection zones can also be customised, so you are alerted only when someone enters a sensitive area, such as your front door or the driveway.

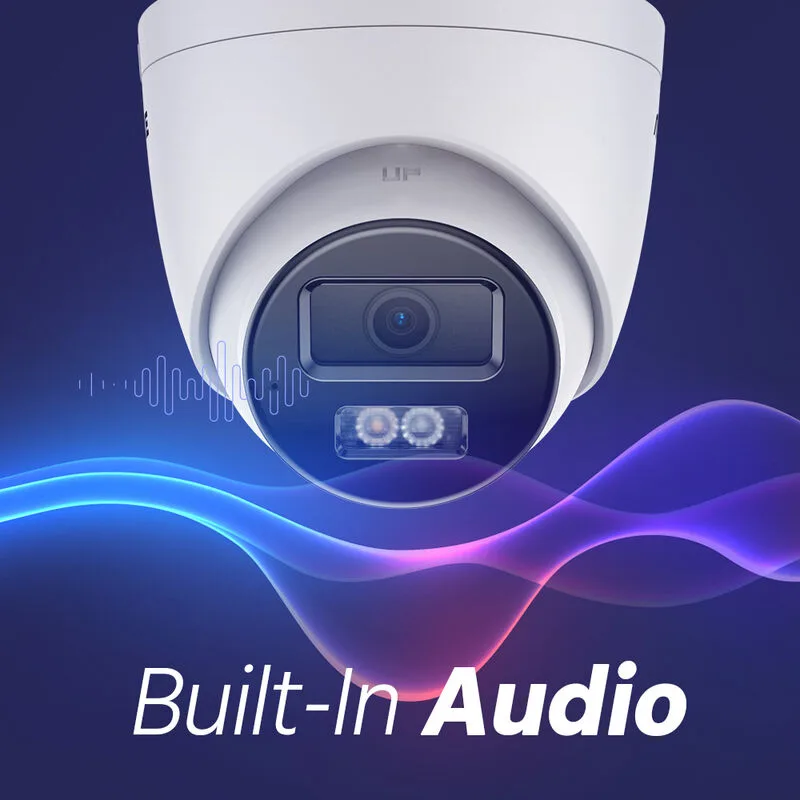

Noise-Cancelling Audio

The built-in noise-cancelling microphone automatically filters out background sound, picking up voices from as far as 6 metres away.
Listening: audio recording strengthens your security coverage and makes events easier to interpret, letting you record video with vivid sound instead of silent footage.
Mute function: audio recording may be subject to local regulations. If audio surveillance is not allowed, or you would rather not record sound, simply switch on the mute function.

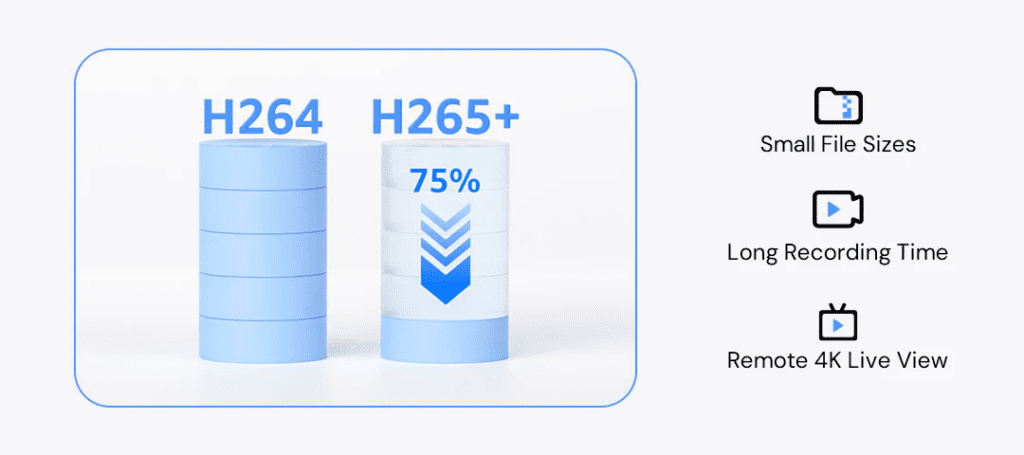

H.265+ Video Format

ANNKE’s H.265+ encoding lets the camera record longer video using less storage.

Weatherproof

Built to the IP67 standard, this IP camera performs perfectly even when submerged in 1 metre of water for 30 minutes.
Tested in extreme conditions, in very hot and very cold environments alike (-30 °C – 60 °C / -22 °F – 140 °F), it goes on recording in outstanding 4K Ultra HD, with no blurring or image distortion.

• 1 Security camera
• 1 Set of mounting screws
• 1 User manual
• 1 Screwdriver

Video Streams

• Main stream:
  • 50 Hz: 12.5 fps @ 3840×2160, 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
  • 60 Hz: 15 fps @ 3840×2160, 20 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
• Sub stream:
  • 50 Hz: 20 fps (1280×720, 640×480, 640×360)
  • 60 Hz: 20 fps (1280×720, 640×480, 640×360)

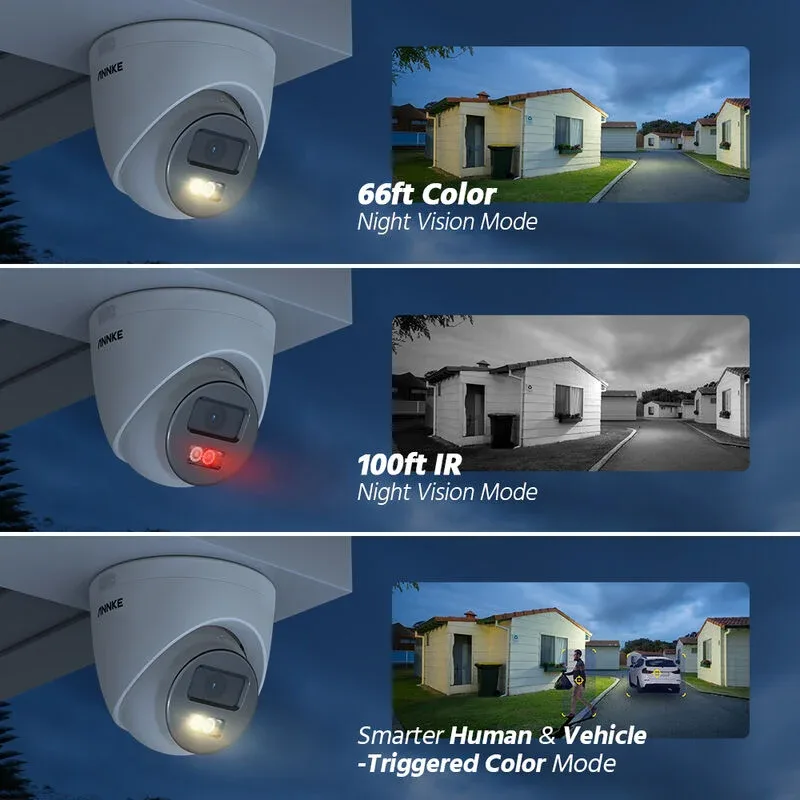

Lighting and Vision

• Supplementary light range:
  • IR: up to 30 m
  • White light: up to 20 m

Advanced features

• Motion detection 2.0: Supports person and vehicle detection
• Image enhancement: BLC, HLC, 3D DNR
• Wide dynamic range: 120 dB WDR
• Region of interest (ROI): 1 fixed area for the main stream
• Privacy mask: 4 programmable polygonal masks

Connectivity and Protocols

• Supported protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• API: ONVIF support (Profile S, Profile T, Profile G)
• Ethernet: 1 self-adaptive 10 M/100 M RJ45 port

General features:

• Material: Metal & Plastic
• Colour: White
• App: Annke Vision

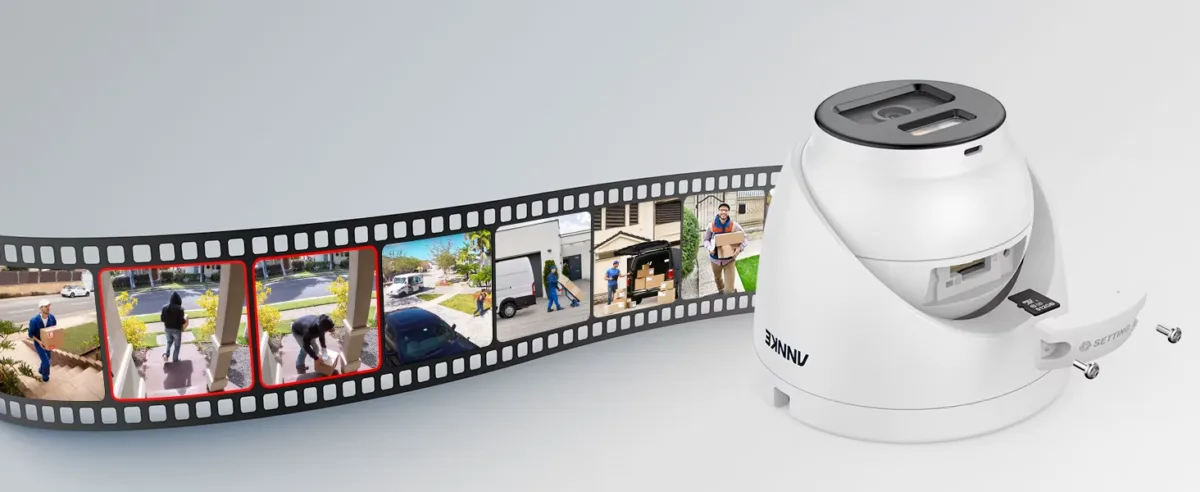

• Storage: Built-in microSD/SDHC/SDXC slot, up to 256 GB
• Hardware reset: Yes
• Power: DC 12V ± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
• Operating temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
• Use: Indoor/Outdoor
• Protection rating: IP67
• Dimensions (W x D x H): Ø110 mm × 89.2 mm (Ø4.3″ × 3.5″)
• Weight: 0.7 lb (340 g)
• 100% compatible with Hikvision

• I have added the camera to an ONVIF-compatible DVR/NVR, but no picture from the camera appears
  The DVR/NVR probably does not work at a resolution of 8MPx (4K), so check the settings of your recording system. If necessary, once the camera has been added through the Annke Vision app you can open its settings and change the video resolution.
  If the recorder uses an ONVIF protocol that is too old, it may not be compatible with the more recent version on the camera.
• The camera cannot be seen on the network
  The camera leaves the factory set to DHCP, so the router assigns it an IP address automatically. If that does not happen, check that there are still free addresses in the DHCP pool. If there is room for new devices, try resetting the camera.
• How do I reset the camera?

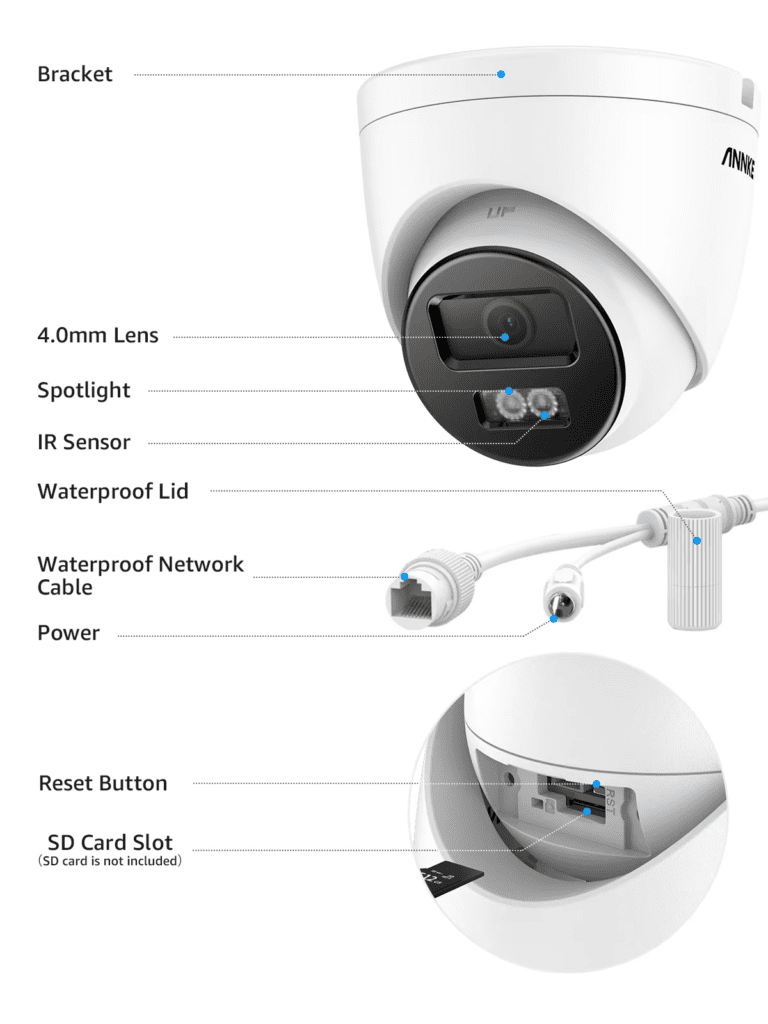

  Undo the two screws of the microSD compartment, then, with the camera powered, press and hold the reset button for about 5 seconds and release it. The camera will restart and return to its factory settings.
• The camera cannot be seen on the network when it is connected to a PoE port
  Make sure the PoE port is not overloaded.
