5 Vdc Relay – 10 A

Miniature single-changeover PCB-mount relay
5 Vdc Relay - 10 A - Image 1
5 Vdc Relay - 10 A - Image 3

SKU 3085-RL5VDCSLEAN 8219671100052Item type: Assembled

Description

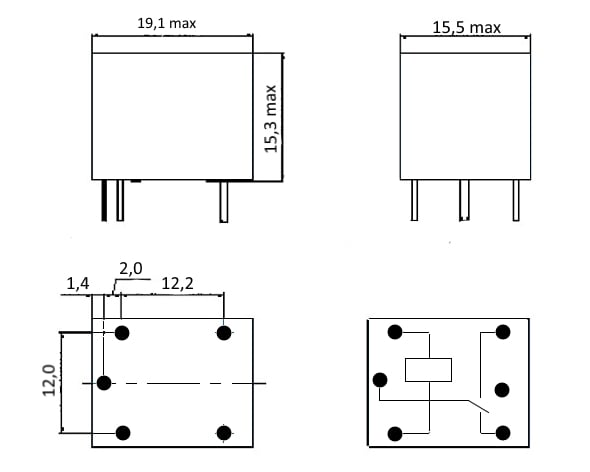

Miniature single-changeover PCB-mount relay. Coil voltage 5 VDC, coil resistance 89.3 ohm, rated coil power 450 mW, contact rating 10 A / 28 VDC – 125 VAC, 10 A / 220 VAC, dielectric strength 1000 VAC / 50 Hz (1 minute), contact material AgCdO. Dimensions (mm): 19×15.2×15.3.
