50-metre laser distance meter

Measures distances with two millimetres of error and calculates areas, volumes and indirect measurements, storing up to 99 readings in memory.

SKU 8240-TP245Brand: UNI-TProduct type: Distance meters & rangefinders, Wall & pipe detectors

Description

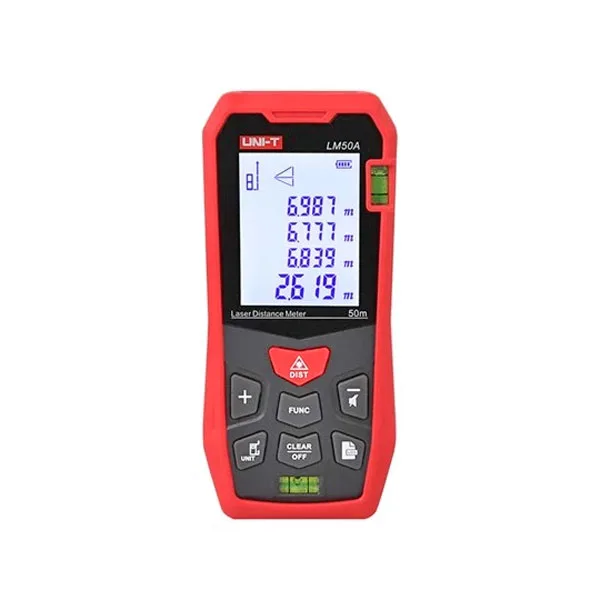

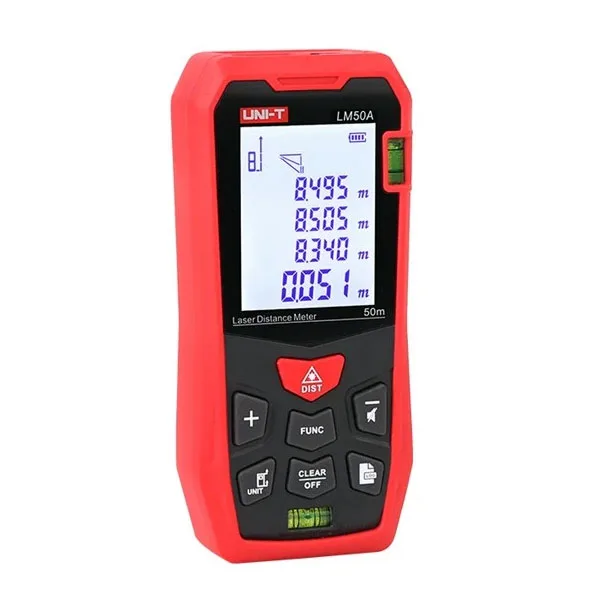

Compact LASER tape measure with backlit LCD display. Makes it extremely quick and easy to measure distance (max. 50 metres), area and volume; in rooms, buildings under construction, etc. Just press a button to select the type of measurement (distance, area, volume, indirect), take the reading and view it on the LCD display. Readings can also be added or subtracted, and measured data can be stored in the device’s memory. Features a horizontal and vertical level, automatic shut-off of the LASER and the device, and also shows battery charge status.

Technical specifications
  • LASER:
    – Class 2
  • Area / addition / subtraction of volume: Yes
  • Storage temperature: -20°C to +60°C
  • Humidity: 20 ~ 80% RH
  • Power supply: 2 AAA 1.5-volt batteries (included)
  • Battery life: up to 8000 measurements
  • Dimensions (mm): 112x50x25
  • Weight: 90 grams

Technical details

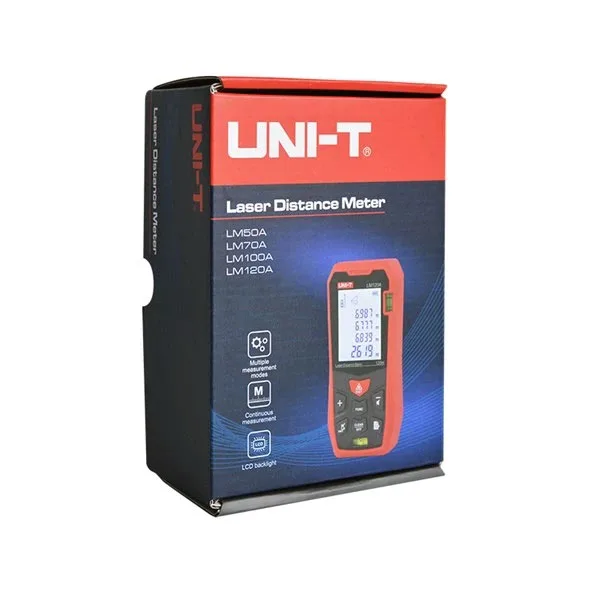

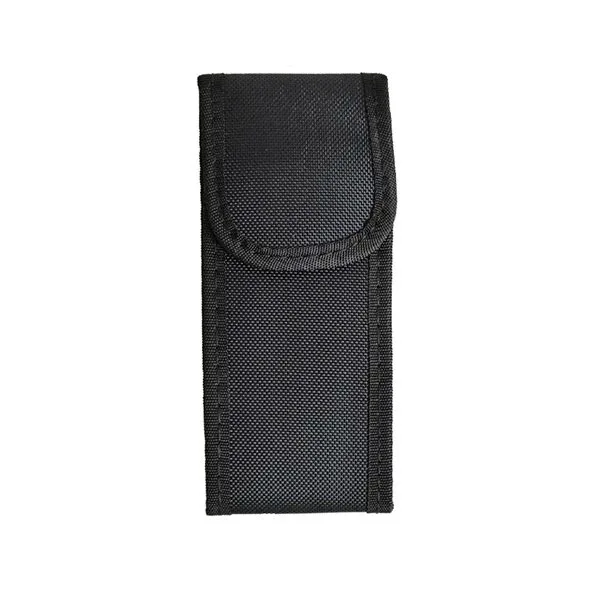

The package includes the LASER tape measure, soft carrying case, 2 AAA 1.5-volt batteries
Measurement max. 50 metres
Accuracy ± 2 mm
Power < 1mW
Wavelength 630-670 nm
Data storage 99 groups
Self-calibration Yes
Continuous measurement Yes
Area/volume measurement Yes
Pythagorean measurement Yes
Addition/subtraction Yes
Auto power-off Yes, after 150 seconds
Automatic LASER shut-off 20 seconds (one measurement)
Operating temperature 0°C to +40°C
