500mA solar charge controller – MPPT for LiPo lithium batteries

500mA solar charge controller - MPPT for LiPo lithium batteries - Image 1

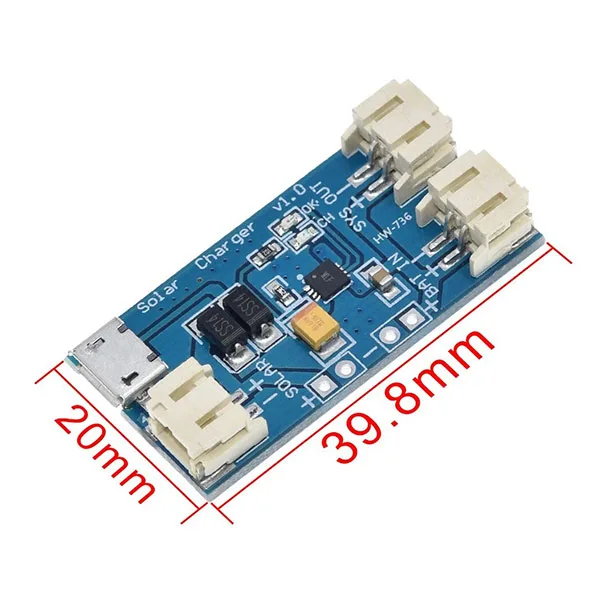

500mA solar charge controller - MPPT for LiPo lithium batteries - Image 3

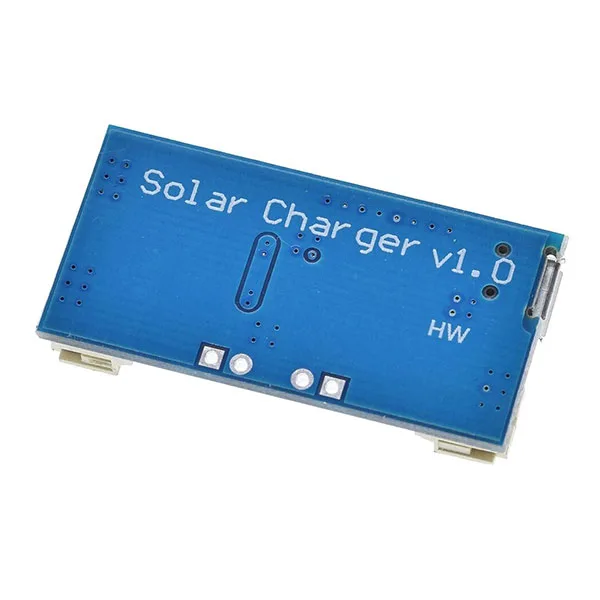

500mA solar charge controller - MPPT for LiPo lithium batteries - Image 4

SKU 1606-HRS1358EAN 8219671117623Format: RectangularPin pitch: 2 mmOutput voltage: 3.7 Vdc

Description

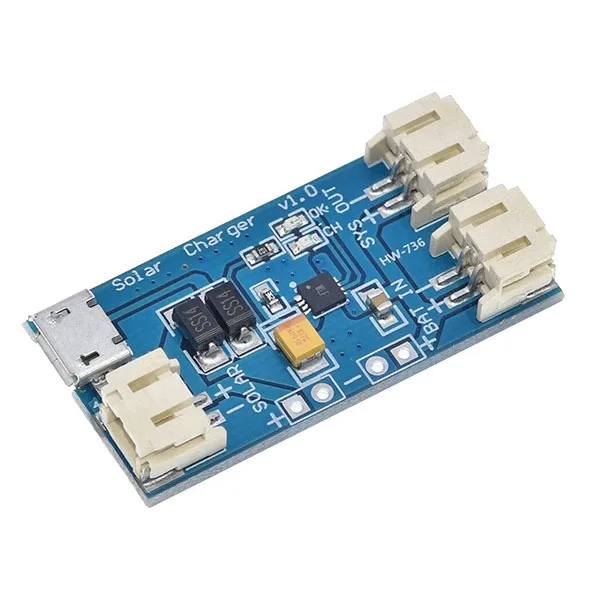

MPPT solar charge controller with a built-in USB socket, to charge lithium-ion batteries straight from a solar panel or over USB. It has short-circuit protection, an LED battery charge indicator and a JST or PH2.0 connector interface. Compact and easy to fit, it is an effective way to run battery-powered devices on solar energy.
This solar charge controller uses MPPT technology to get the most out of charging a lithium-ion battery straight from a solar panel. It also has a built-in USB socket, so the battery can be charged when there is no sunlight.

Built around the CN3065 charge management chip, it charges efficiently and safely. Its features include short-circuit protection, a maximum charge current of 500mA and a wide solar input range from 4.4V to 6V.

The LED indicator shows the state of charge of the battery: red while charging, green when the battery is fully charged. With a JST or PH2.0 connector interface, this solar charge controller is compact (2cm x 4cm) and easy to fit, a practical and reliable way to run battery-powered devices on solar energy.
MPPT
MPPT stands for Maximum Power Point Tracker. This point shifts constantly with the level of solar radiation reaching the surface of the cells. This kind of charge controller keeps measuring the power (V*I) produced by the photovoltaic panel, always giving the battery the highest charge current available, which cuts charging times considerably.

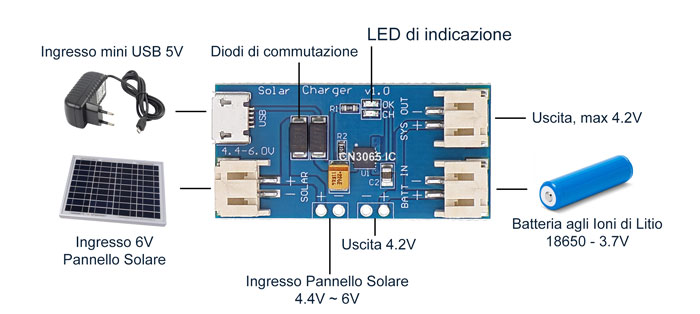

Wiring diagram

HRS1358 - Wiring diagram

Technical details

Chip CN3065
Solar panel input 4.4-6V
Maximum charge current 500mA
Interface 2-pin JST connectors, 2mm pitch
Battery status indication (Red: charging
Green fully charged)
SOLAR+ solar panel positive input
SOLAR solar panel negative input
BATT IN+ battery positive terminal
BATT battery negative terminal
SYS OUT+ positive output
SYS OUT negative output
