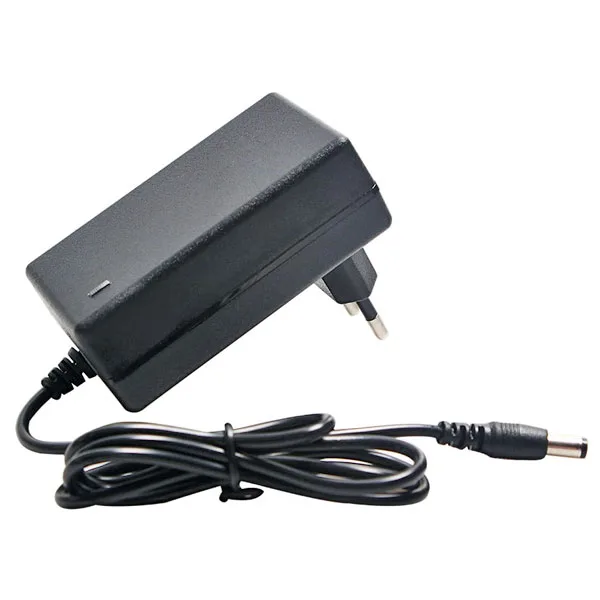

Battery Charger 12.6 V – 2 A

Charges packs of three lithium cells in series, 18650 or 18500 type: universal 100-240 Vac input, 180 cm cable, protected against short circuit and overload.
Battery Charger 12.6 V - 2 A - Image 1
Battery Charger 12.6 V - 2 A - Image 3

SKU 1606-HR1259EAN 8219671107693Format: 3S, Battery packOutput voltage: 11.1 Vdc

Description

Charger for battery packs made up of 3 lithium-ion batteries (series connection) rated at 3.7 volts (18500, 18650, etc.). Protected against short circuit and overcharge, with low power consumption when no load is present.

Technical details

Power supply 100-240 VAC, 50/60 Hz, 0.8 A max
Power 25.2 W max
Output voltage 12.6 VDC - 2 A max
Efficiency 83%
Protections short circuit and overcharge
Operating temperature -10°C to +40°C
Storage temperature -20°C to +65°C
Cable length 180 cm

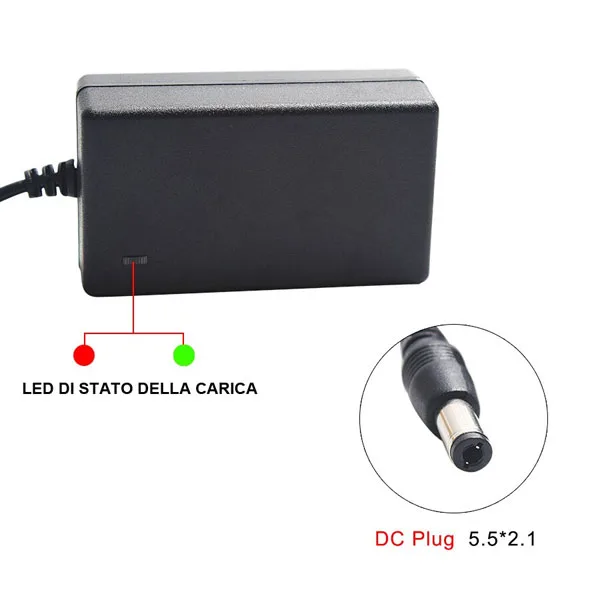

Output connector DC plug 5.5x2.1 mm (center positive)
Certifications CE, RoHS, FCC
Dimensions (mm) 78x72x35
Weight 141 g
