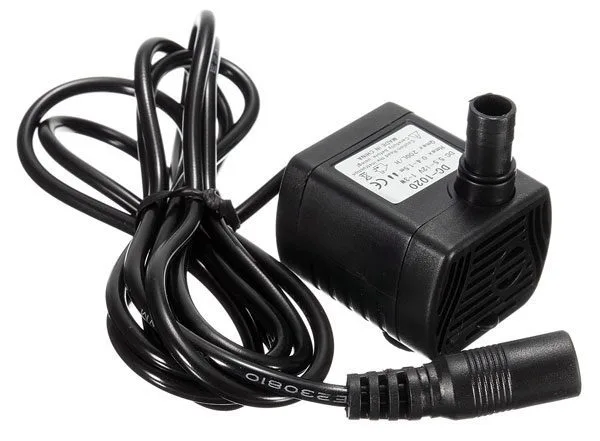

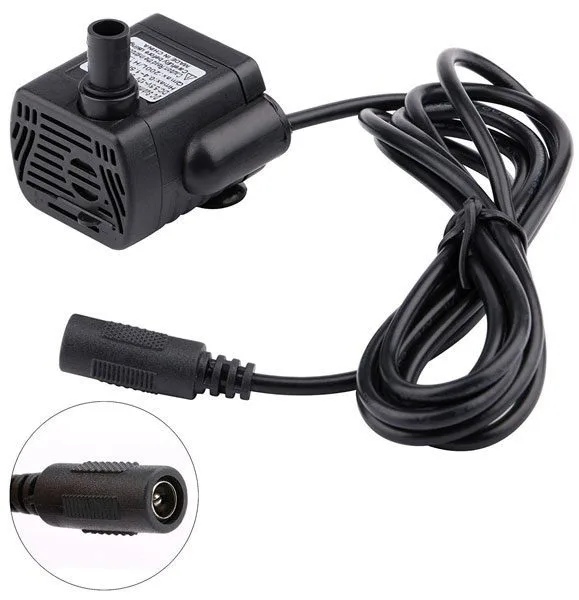

Mini submersible pump 5.5-12 VDC 3W

Mini submersible pump that lifts liquid to the surface with a flow rate of 200 litres/hour (about 3.3 litres/minute)

SKU 1606-DC12V3WPUMPEAN 8219671105996Item type: Assembled

Description

Mini submersible pump capable of raising a liquid to the surface with a flow rate of 200 liters/hour (about 3.3 liters/minute). Made of ABS, equipped with a DC motor, stainless steel motor shaft, stator and circuit sealed with epoxy resin. On the front there is a hole with an adjustable suction opening, while on the top there is the connection for the liquid outlet hose. Small size, high efficiency, low consumption and noise (less than 35 dB), excellent durability: more than 30,000 hours. It is widely used in aquarium water temperature control, for making small fountains, in household appliances, for water cooling of computers, etc.

Technical specifications

  • Fluids: Water, oil, gasoline, alkaline solution, etc.
  • Head: from 0.4 to 1.5 meters

Technical details

Body material ABS
Operating conditions continuous
Operating temperature max. 60°C
Flow rate 200 liters/hour (about 3.3 liters/minute)
Head from 0.4 to 1.5 meters
Noise less than 35 dB
Outlet fitting diameter 8 mm (external)
Protection rating IP68
Average life over 30,000 hours
Power supply from 5.5 to 12 VDC – 3 watts
Dimensions (mm) 37.65x40x44
Weight 87 grams
