64×32 3 mm RGB LED Panel

2,048 individually addressable LEDs for text and animations: measures 192 x 96 mm and daisy-chains with other identical panels.

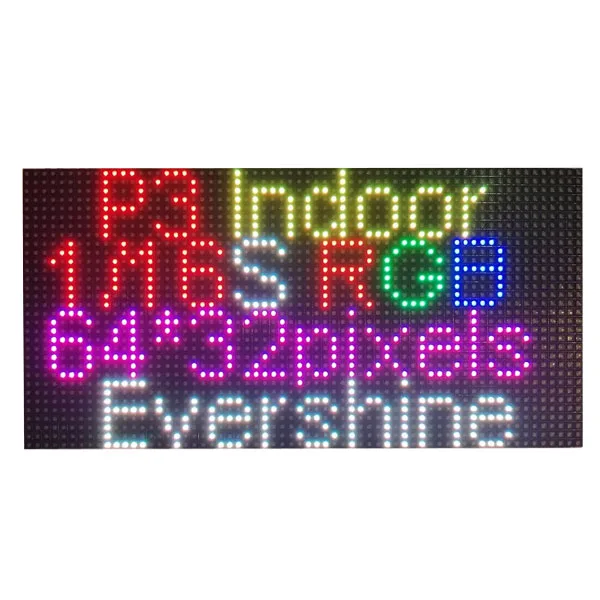

64x32 3 mm RGB LED Panel - Image 1

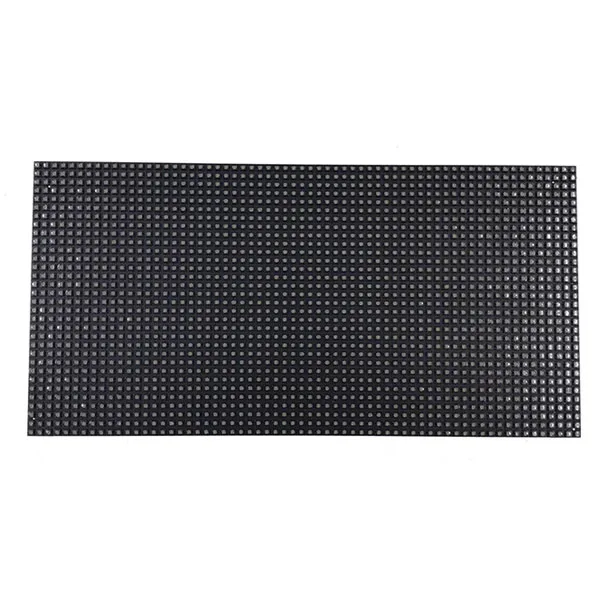

64x32 3 mm RGB LED Panel - Image 3

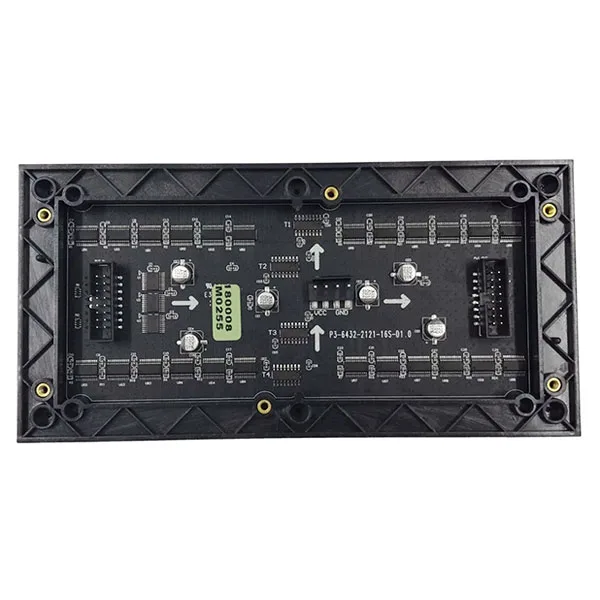

64x32 3 mm RGB LED Panel - Image 4

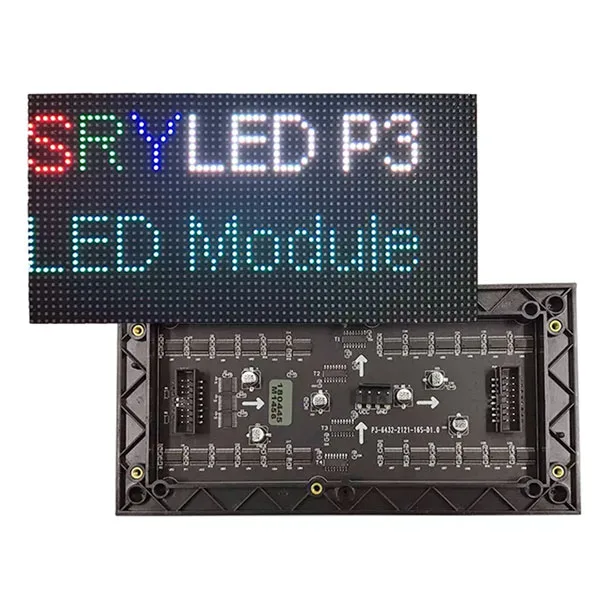

64x32 3 mm RGB LED Panel - Image 5

SKU 3085-RGBLEDPAN64323

Description

Paired with Arduino, Raspberry Pi or another microcontroller, this panel with 2048 (64×32) 3 mm RGB LEDs lets you create animations, text, drawings, and more. It has two IDC connectors, one as input and the other as output, allowing multiple panels to be daisy-chained to form even larger screens. Power supply: 3.3V-5V/2A. The package includes the LED panel, the power cable, and a flat cable with 16-pin (2×8) IDC connectors. Dimensions (mm): 192x96x14.5.

Documentation and useful links

Technical details

Pixel pitch 3 mm
LED package SMD2121
Module resolution 64 dots x 32 dots
Drive mode 1/16 scan
Constant-current LED driver ICN2037 or equivalent
Brightness >1200 cd/m²
Viewing angle H:140°; V:140°
Refresh rate 1920 Hz (software adjustable)
Average lifetime >100,000 hours
Protection rating IP20
Operating temperature -20°C to +50°C
Storage temperature -30°C to +70°C
Humidity 10%-90% RH
