8-Channel 24 MHz Logic Analyzer
SKU 8300-AN248CHEAN 8219671109697Brand: VariousProduct type: Oscilloscopes & signal analysisSpecial test instruments
Description
Compact 8-channel logic analyzer for testing and analysing digital circuits; it plugs into the PC's USB port so the captured data can be studied in detail. Maximum sampling rate 24 MHz. It supports 10 different communication standards: CAN, DMX-512, I²C, I2S/PCM, Manchester, 1-Wire, Async Serial, Simple Parallel, SPI, UNI/O. Fully compatible with the Saleae Logic software.
Compact 8-channel logic analyzer for testing and analyzing digital circuits. It connects to the PC’s USB port, allowing data acquisition for more detailed analysis. Maximum sampling frequency 24 MHz. Supports 10 different communication standards: CAN, DMX-512, I²C, I2S/PCM, Manchester, 1-Wire, Async Serial, Simple Parallel, SPI, UNI/O. Fully compatible with Saleae Logic software.
Technical specifications
- Communication standards: CAN, DMX-512, I²C, I2S/PCM, Manchester, 1-Wire, Async Serial, Simple Parallel, SPI, UNI/O
Documentation and useful links
- Saleae Logic software
- Wiki page
Technical details

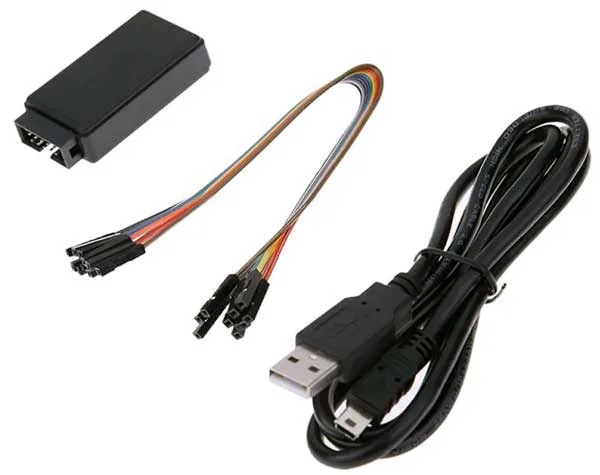

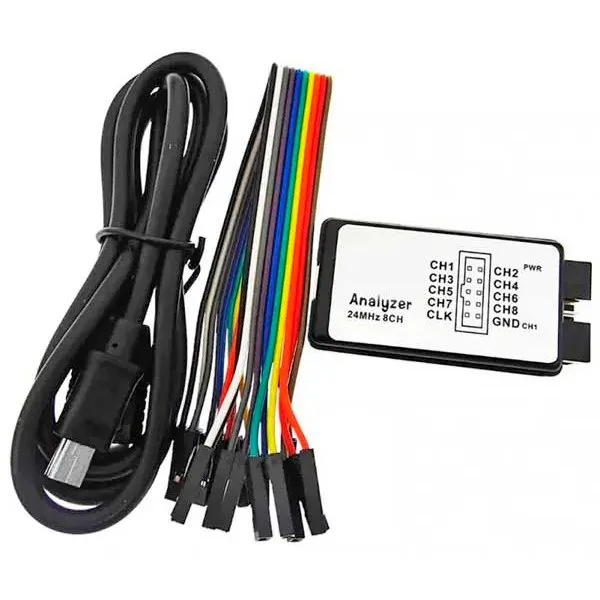

| The package includes | the analyzer, 10 female-to-female test cables, and a USB-mini USB cable |
|---|---|
| Channels | 8 |
| Input voltage range | 7 VDC to 14 VDC |
| Sampling frequency | 24 MHz |
| Conversion efficiency | 98% |
| Interface | USB port |
| Dimensions (mm) | 56.5x28x14 |
| Weight | 12 grams |
