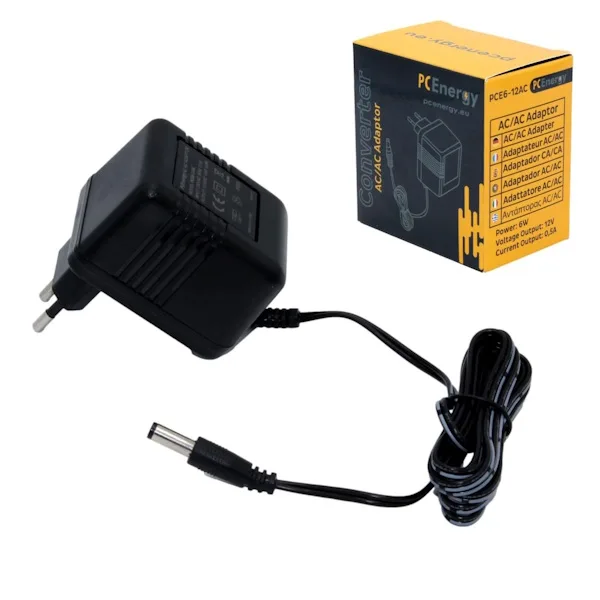

AC-AC mains adapter – 12VAC 6W

Compact AC-AC adapter/converter rated at 6 W that delivers 12 V AC / 0.5 A, with built-in protection. Ideal for low-voltage devices that need an AC supply.

SKU 8244-PCE6-12ACEAN 5410329711245Output voltage: 12 Vac

Description

This mains adapter is the perfect solution when you need an alternating 12 V voltage with current up to 0.5 A, for a total of 6 W of power. Internal transformer built with high-quality materials, designed to offer reliable performance in applications requiring constant power and good insulation. The compact design makes it easy to place even in tight spaces. The low-voltage connector has a standard size of 5.5 × 2.1 mm with a 14 mm pin, compatible with many common devices. From a safety standpoint, this adapter is equipped with multiple protection systems: against short circuits, overvoltages, overcurrents, and overheating, thus ensuring protection not only for the powered device but also for the converter itself. Furthermore, it complies with current EU regulations on electrical safety.

Technical details

Input voltage 230 VAC - 50 Hz, 0.1 A
Power 6 W
Output voltage 12 Vac
Maximum output current 0.5 A
Cable length 1.5 meters

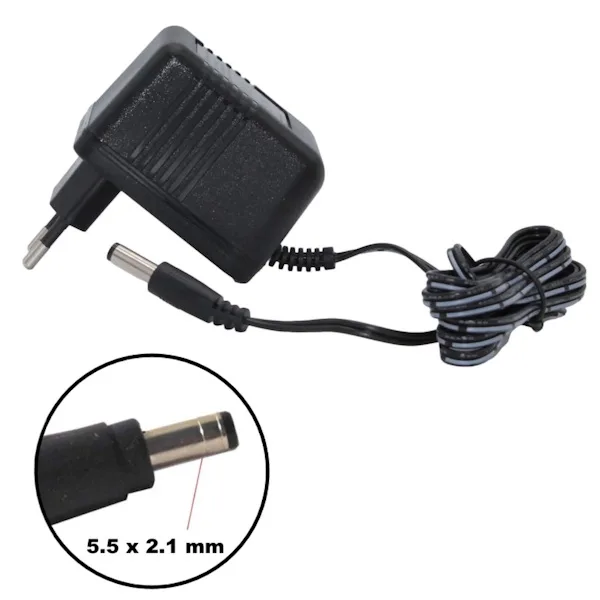

Plug 5.5 x 2.1 mm
Operating temperature 0°C ÷ 40°C
Dimensions (mm) 64.1 x 55.5 x 78.1 (L x W x H)
Weight 250 grams
