Aluminium Corner Plate – 160x160x1.5 mm

Natural aluminium plate, 1.5 mm thick, ideal for making flat corner joints and reinforcements fixed with rivets or screws
Aluminium Corner Plate - 160x160x1.5 mm - Image 1
Aluminium Corner Plate - 160x160x1.5 mm - Image 3
Aluminium Corner Plate - 160x160x1.5 mm - Image 4

SKU 8856-PIASTRA160X160EAN 8219671098328Item type: Assembled

Description

Natural aluminium plate, 1.5 mm thick, ideal for making flat corner joints and reinforcements quickly, fixed with rivets or screws. The plate has 3 parallel scribed lines along the sides and one in the centre, to help line up the holes for the fasteners.
Technical specifications

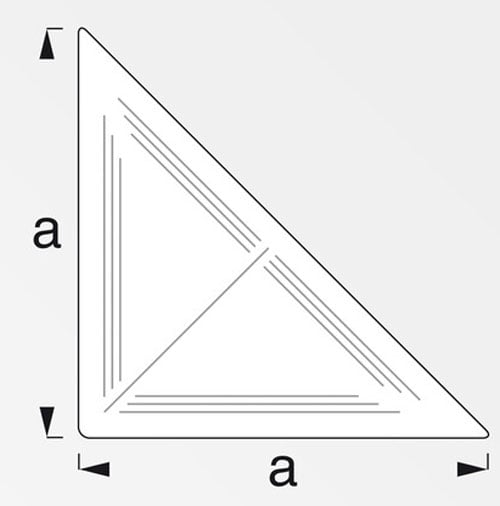

  • Length of the short sides (a): 160 mm
  • Scribed guidelines for aligning the fixing holes

Technical details

Material natural aluminium
Thickness 1.5 mm
Length of the long side 225 mm
Angle between the short sides 90°
