Recessed corner bracket for 2020 profiles

L-shaped bracket, made of zinc alloy, perfect for creating a right-angle joint between two 2020 series aluminium profiles

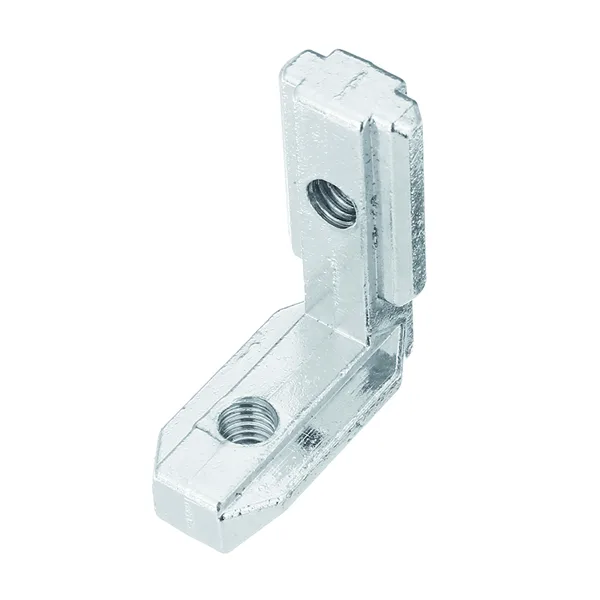

Recessed corner bracket for 2020 profiles - Image 1

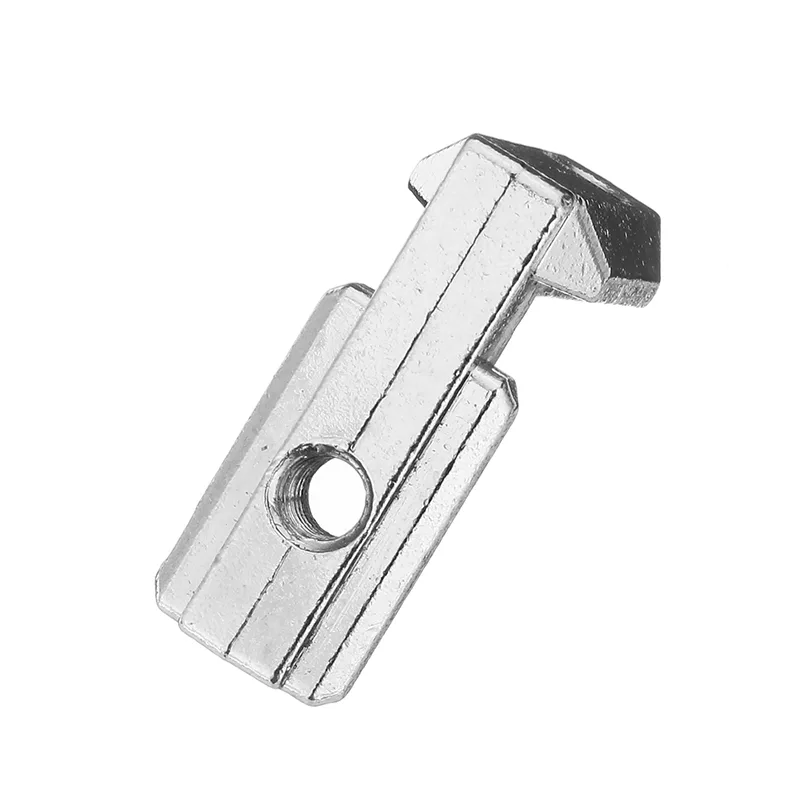

Recessed corner bracket for 2020 profiles - Image 3

SKU 1606-ANGSCOMP2020EAN 8219671097567Item type: Assembled

Description

L-shaped bracket, made of zinc alloy, perfect for creating a right-angle joint between two 2020 series aluminium profiles. Fitting into the profile grooves conceals the bracket, leaving the joint free of protrusions. Fastened with 2 grub screws (not included).

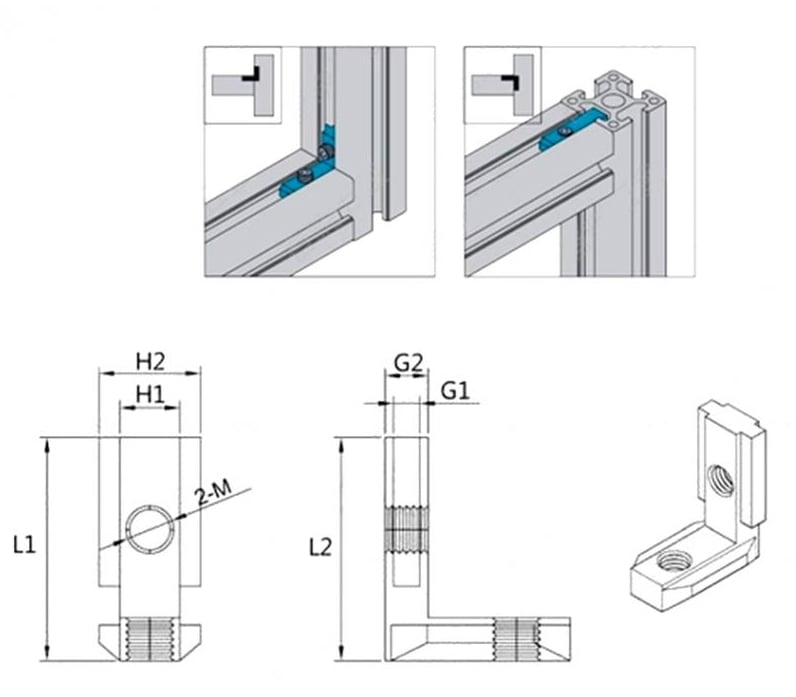

L1

L2

H1

H2

G1

G2

26 mm

25 mm

6 mm

9.5 mm

2.5 mm

5 mm
