Steel turntable bearing 71×71 mm

Sturdy galvanised steel turntable bearing, 0.8 mm thick, with a single-row ball bearing and 4 Ø4 mm fixing holes (in each ring)

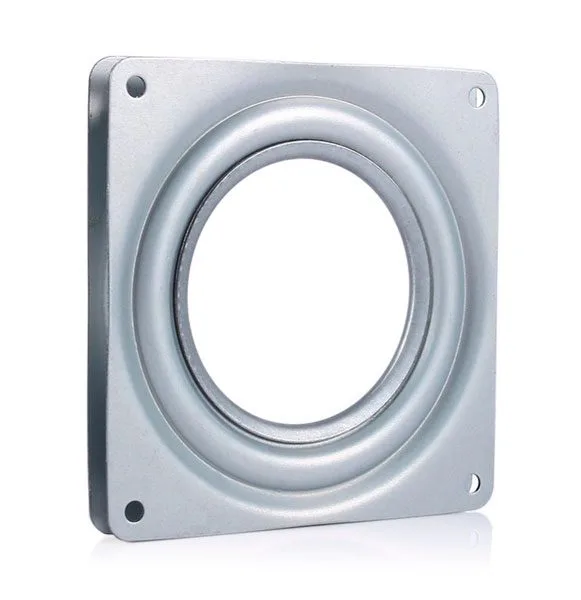

Steel turntable bearing 71x71 mm - Image 1

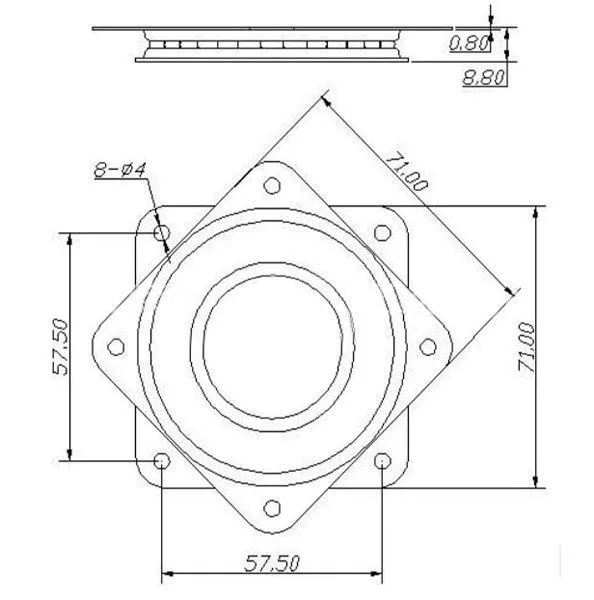

Steel turntable bearing 71x71 mm - Image 3
Steel turntable bearing 71x71 mm - Image 4

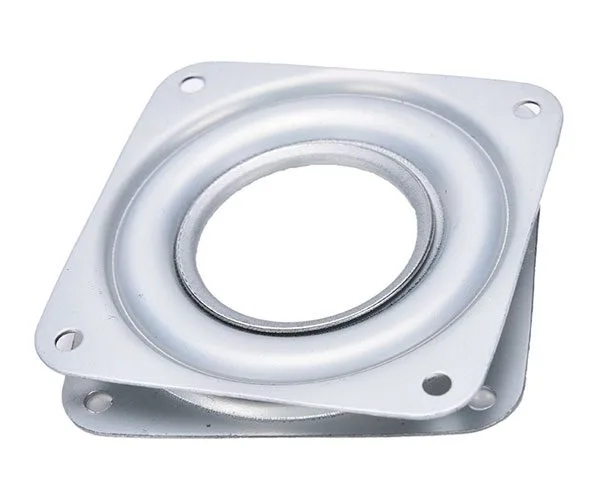

Steel turntable bearing 71x71 mm - Image 5

SKU 2846-BASEGIREVOLEEAN 8219671100090Item type: Assembled

Description

Robust turntable in galvanized steel, 0.8 mm thick, with a single-row ball bearing and 4 mounting holes Ø4 mm (per ring). Resistant to corrosion and wear, it is perfect for building rotating platforms for TVs, monitors, displays, sculptures, centerpieces, etc.

Technical specifications

  • Stamped galvanized steel rings (0.8 mm thick)
  • Single-row ball bearing with high-slide steel balls

click on the image to enlarge

Technical details

Inner diameter 35 mm
Side dimension 71 mm
Mounting hole diameter 4 mm
Mounting hole spacing 57.5 mm
Thickness 8.8 mm
Weight 90 g
