ATLAS DCA55 – Component analyser

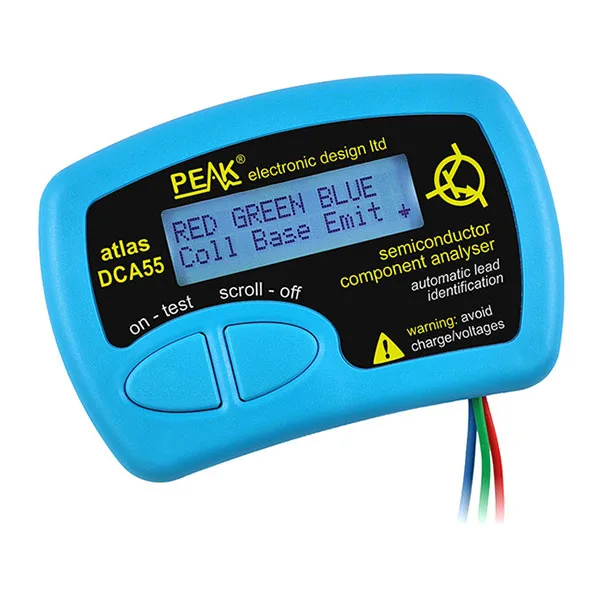

It automatically works out the type of component and its pinout, shows special details of the part such as protection diodes and shunt resistors, and parameters such as gain and leakage current in transistors, the gate threshold voltages of MOSFETs, forward voltage drops, and so on.

It has both manual and automatic power-off (it switches itself off if left idle for more than 30 seconds). Battery powered: 12 V (included). Dimensions (mm): 103x70x20.

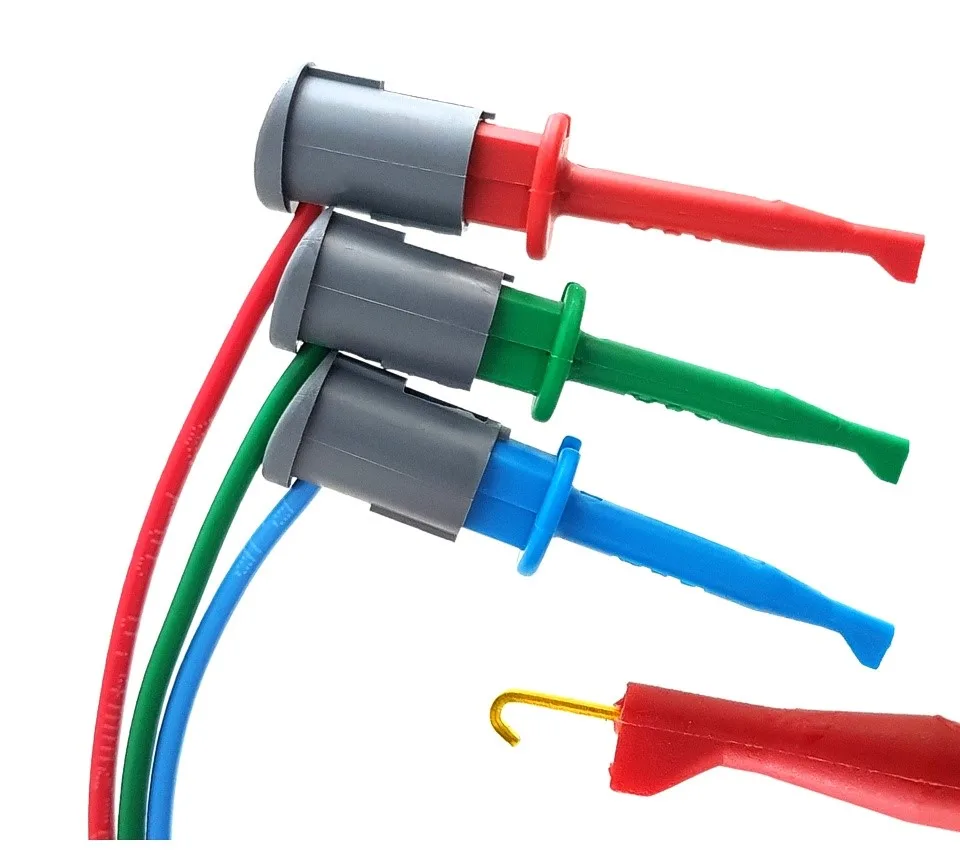

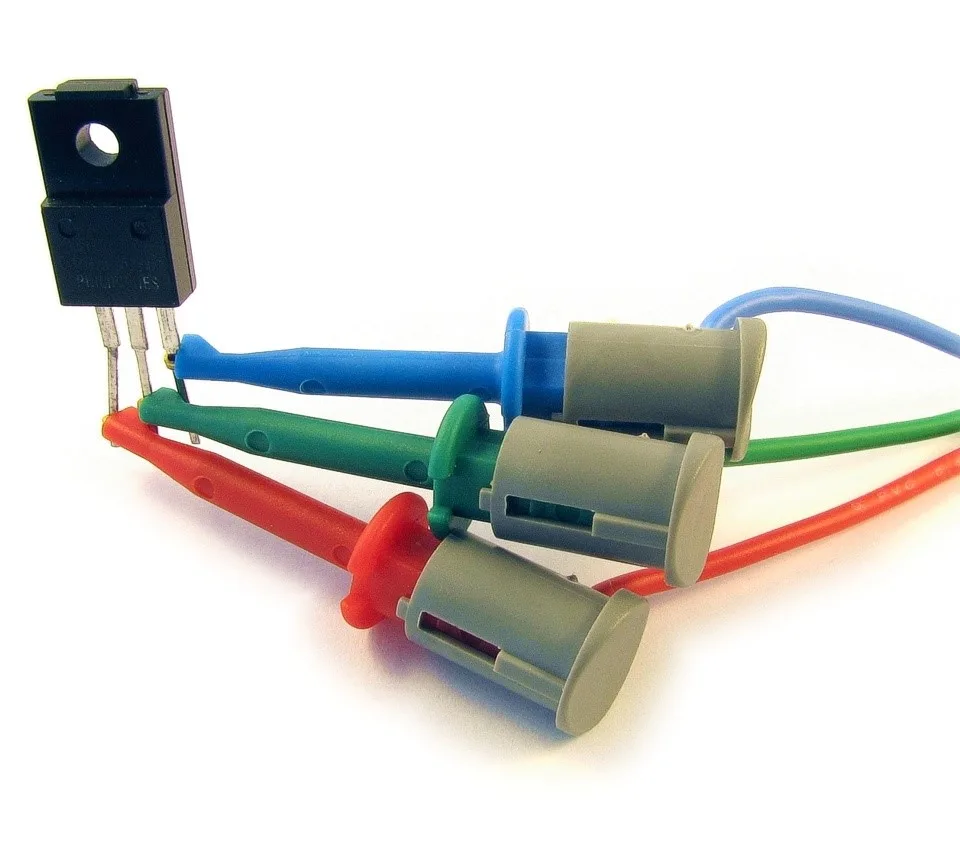

The package includes: the component analyser, the three test leads and the instructions.

• MOSFET :
  – drain test current: 2.45 mA ~ 255 mA
  – gate resistance: 8 kOhm
  – drain test current: 4.5 mA
  – JFET source-drain test current: min. 0.5 mA ~ max. 5.5 mA
• SCR/Triac:
  – gate test current: 4.5 mA
  – load test current: 5 mA
• Diodes:
  – test current: 5 mA
  – voltage accuracy: -2%-20mV ~ +2%+20mV
  – Vf for LED identification: min. 1.5 V ~ max. 4 V
  – short-circuit threshold: 10 Ohm
• Battery (included):
  – type: MN21 / L1028 / GP23A 12V alkaline
  – voltage: min. 7.50 V – typical 12 V
