ATLAS ESR70 – Capacitance and ESR Meter
With its LCD display, the Peak Atlas ESR70 measures the capacitance and the ESR (Equivalent Series Resistance) of any type of capacitor with a value between 1 uF and 22,000 uF
SKU 6601-ESR70EAN 5410329460631Brand: PeakProduct type: Component & LED testersSpecial test instruments
Description

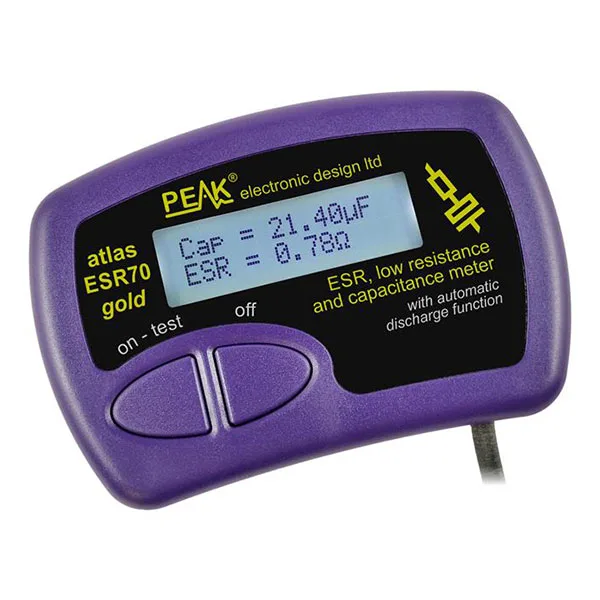

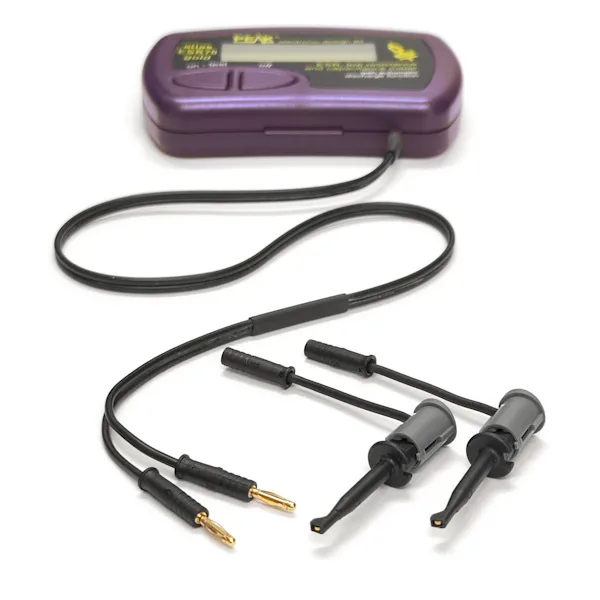

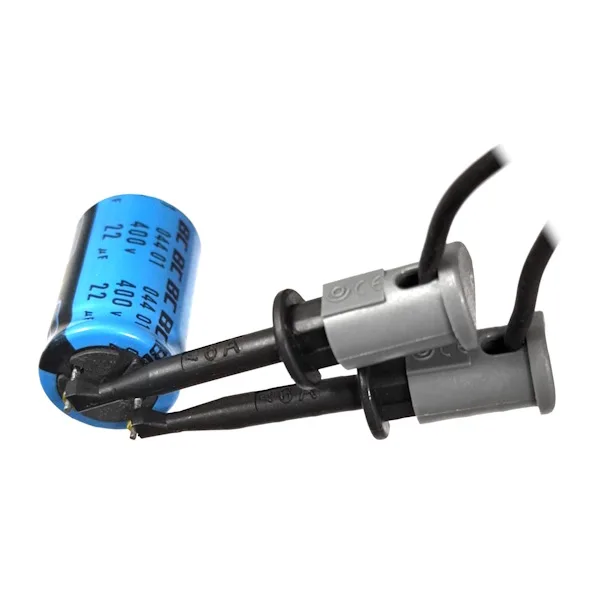

| With its LCD display, the Peak atlas ESR70 gold measures the capacitance and the ESR (Equivalent Series Resistance) of any type of capacitor with a value between 1 uF and 22,000 uF. It offers a wide measuring range and audible signals. Every reading is shown on the display, and a series of tones is produced according to the ESR value. The ESR measuring range runs from 0 to 40 ohm with a resolution starting at 0.01 ohm. Capacitor ESR can also be measured in-circuit, so there is no need to unsolder the part. Please note: during in-circuit measurement only the ESR value is shown, not the capacitance. Power supply: 12 V battery (included), dimensions (mm): 103x70x20. |
| Technical specifications |
|

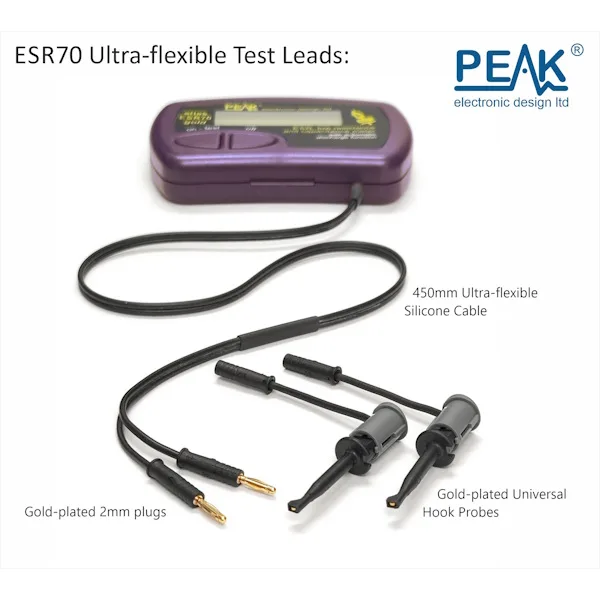

| What is in the box |
|
Technical details
| Power supply | 12 V battery (included) |
|---|---|
| dimensions (mm) | 103x70x20 |
| In-circuit measurement | ESR only |
| ESR measuring range | 0 to 40 ohm |
| ESR resolution | 0.01 ohm |
| Capacitance measuring range | 1 uF to 22,000 uF |
| Automatic power-off | yes, after 45 seconds of inactivity |
