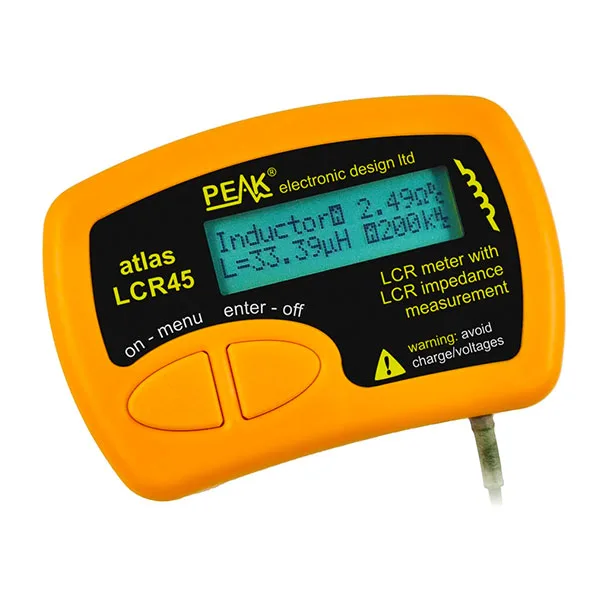

ATLAS LCR45 – Inductance, capacitance, resistance and impedance meter
The Peak Atlas LCR45 has an LCD display and is an intelligent meter for inductances, resistances and arbitrary impedances, easy to use and packed with functions
SKU 6601-LCR45EAN 7001532229696Brand: PeakProduct type: Component & LED testersSpecial test instruments
Description
| The Peak Atlas LCR45 is a sophisticated inductance, capacitance and resistance meter. It automatically identifies the connected component and measures its values accurately, showing them on a graphic LCD display. The instrument can take measurements at different frequencies, providing detailed data for accurate analysis.
The Peak Atlas LCR45 also works with polarised and non-polarised electrolytic capacitors in either orientation. |
| Technical features |
|
| What the pack contains |
|
|
Documentation and useful links
|
Technical details
| Component type detection | automatic and manual |
|---|---|
| Inductance resolution | 0.2 uH |
| Capacitance resolution | 0.2 pF |
| Resistance resolution | 0.2 Ohm |
| Complex impedance readout | yes |
| Admittance readout | yes |
| Magnitude and phase readout | yes |
| Power supply | 12V battery (included) |
| Dimensions | 103x70x20 mm |
