Bidirectional HDMI Switch

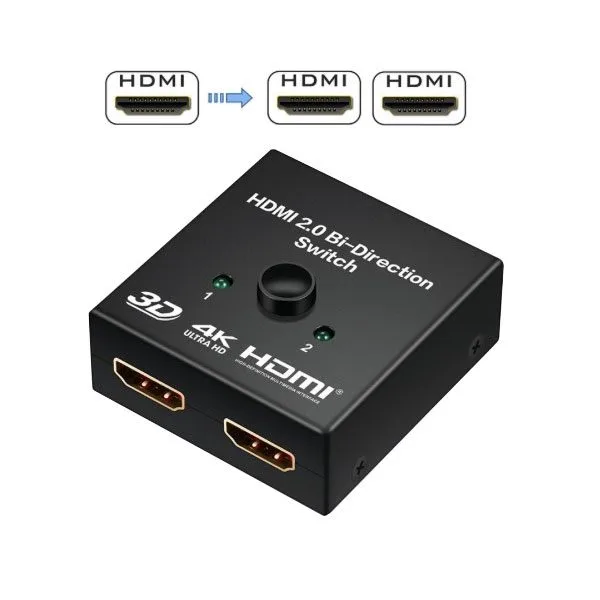

Manually operated bidirectional HDMI switch with two status LEDs
Bidirectional HDMI Switch - Image 1
Bidirectional HDMI Switch - Image 3
Bidirectional HDMI Switch - Image 4
Bidirectional HDMI Switch - Image 5
Bidirectional HDMI Switch - Image 6

SKU 1606-HDMIBSEAN 8219671114721Item type: Assembled

Description

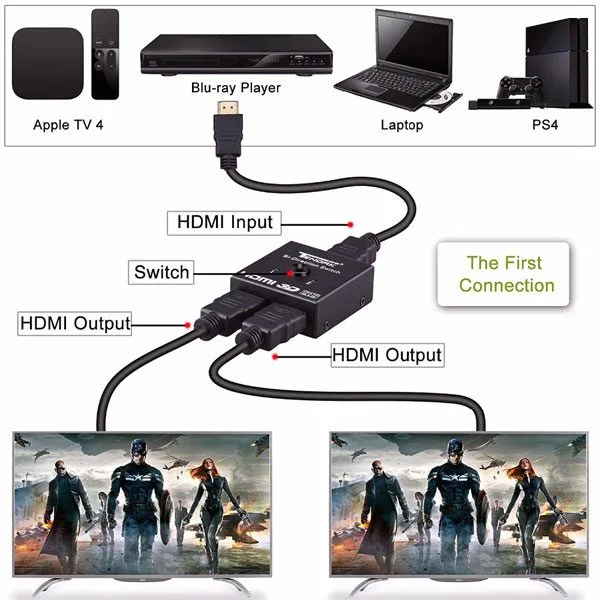

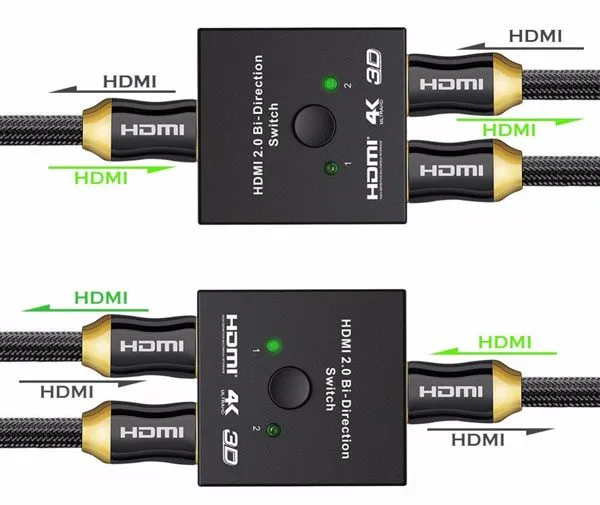

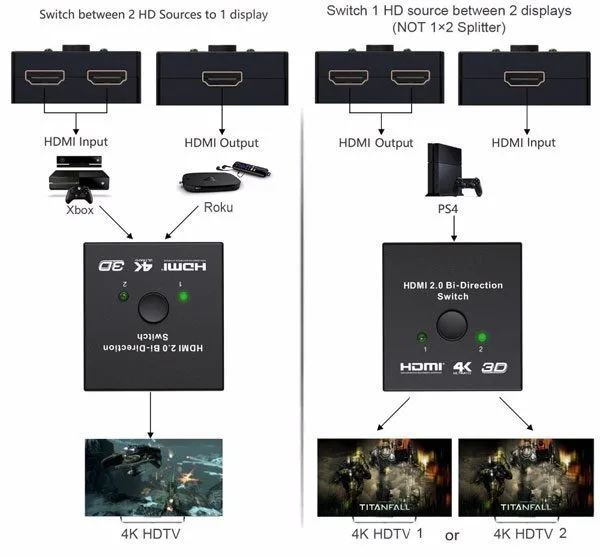

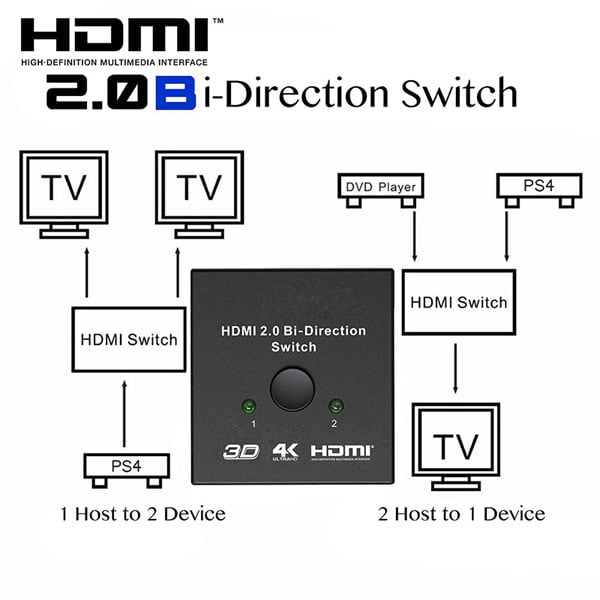

Manually operated bidirectional HDMI switch with two status LEDs. It can switch two HDMI sources (a DVD player, PS4, PS5 and so on) to a single monitor or TV with an HDMI input, or it can switch one HDMI source (a DVD player, PS4, PS5 and so on) to two monitors or TVs with an HDMI input. No external power supply is needed. Fully compliant with the HDMI V1.0, V1.1, V1.2, V1.3, V1.4 and V2.0 specifications. Input and output transmission distance up to 5 metres.
Technical specifications
  • Up to 2 HDMI devices can be connected
  • Supports UHD 4K @ 60Hz & 3D, fully compatible with HDMI 2.0, 1.4, 1.3, 1.2, 1.1, 1.0
  • HDCP version: HDCP1.2
  • Supported HDMI resolutions: 2160 / 1080P 24fs / 1080P / 1080i / 720P / 576P / 576i / 480P / 480i

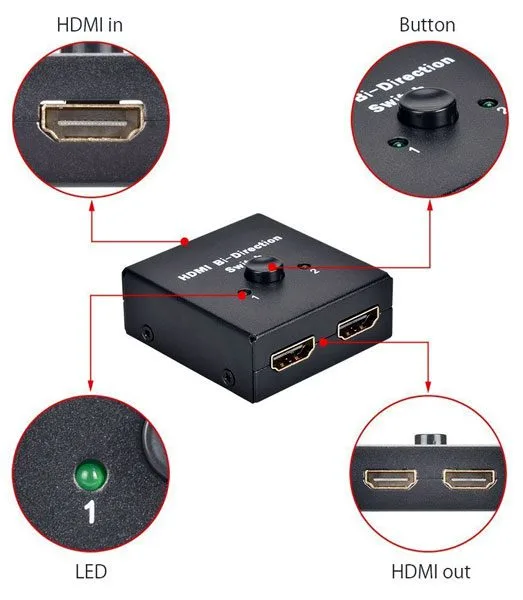

  • Status LED for the active input
  • No power supply required

Technical details

HDCP version HDCP1.2
Supported video colour format 24 bit
Supported audio formats LPCM7.1 / Dolby-AC3 / DTS / DSD
Data transfer rate 5.1 Gbps
Switching method pushbutton
Dimensions (mm) 52.6x49x20.3
Weight 66 grams
