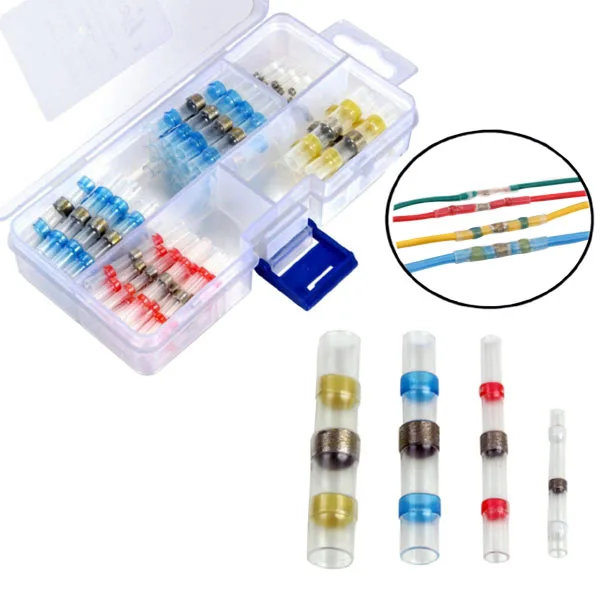

Box of 50 Solder-Seal Heat Shrink Butt Connectors
Clear plastic box containing 50 heat-shrink sleeves, each with a solder ring and two adhesive rings inside.
SKU 8300-YSTS50EAN 8219671117838Electronic components, Heat-shrink tubing
Description
Transparent plastic box containing 50 heat-shrink tubes with a tin ring and two adhesive rings inside. Shrink ratio: 2:1, working temperature: from -55°C to +105°C, temperature for complete tin melting: 115°C. It allows the electrical connection (soldering) of two conductors by heat treatment (via industrial heater), providing the seal of the two conductors and making the solder waterproof.
The package includes:
- 5 pieces (yellow): AWG 10-6 (4.0-6.0 mm2) – length 40 mm
- 12 pieces (blue): AWG 16-14 (1.5-2.5 mm2) – length 40 mm
- 23 pieces (red): AWG 22-18 (0.5-0.1 mm2) – length 40 mm
- 10 pieces (white): AWG 26-24 (0.25-0.34 mm2) – length 26 mm
Technical details
| Shrink ratio | 2:1 |
|---|---|
| working temperature | from -55°C to +105°C |
