Bracket for MOTRID22RPM gearmotor
Bracket for mounting the MOTRID22RPM gearmotor (not included, see related products). Made of steel, 1.5 mm thick, it is sturdy enough to hold the motor firmly in place
SKU 1686-STAFFA1EAN 8219671103145Item type: AssembledAccessories
Description

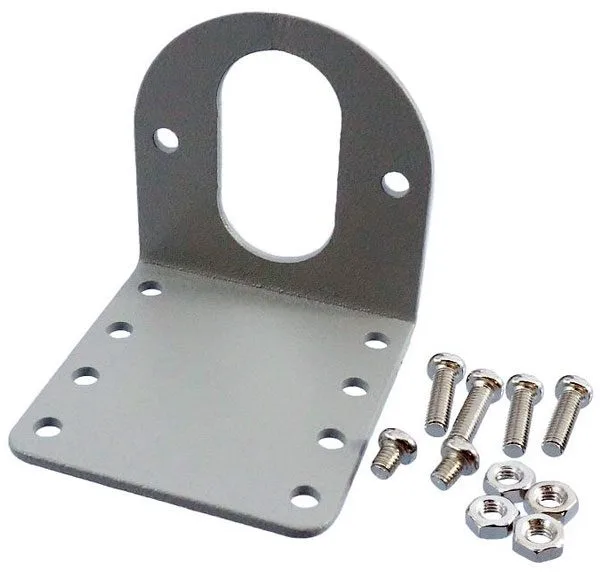

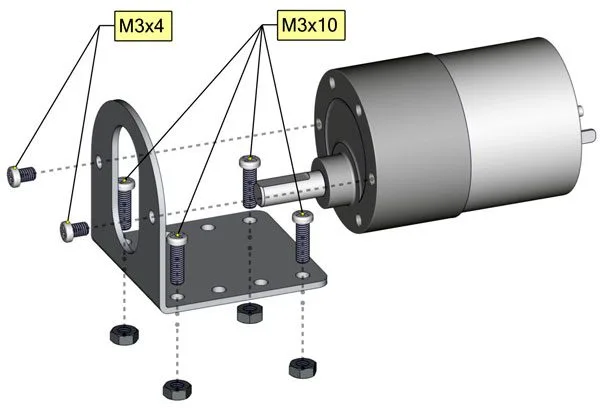

Mounting bracket for the MOTRID22RPM gear motor (not included, see related products). Made of steel, 1.5 mm thick, sturdy and durable enough to hold the motor in place. It has ten mounting holes for M3 screws: eight to fix the bracket to a base (robot chassis, etc.) and two to secure the motor to the bracket. The package includes: the bracket, 2 M3x4 mm screws, 4 M3x10 mm screws, 4 M3 nuts.
Technical details
| Material | steel |
|---|---|
| Thickness | 1.5 mm |

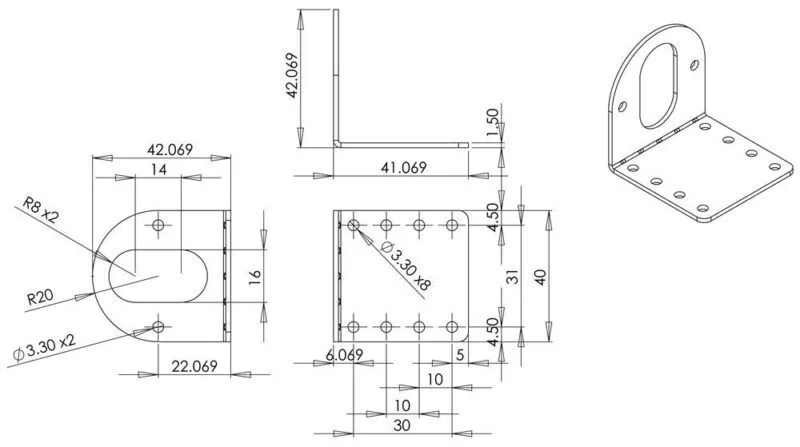

| Dimensions (mm) | 42x41x40 |
