CMOS trail camera 8 Megapixel with 2″ TFT monitor, IR and 3 PIR sensors

8 Megapixel CMOS trail camera with a 2" TFT monitor and IR illuminator. With three PIR sensors and 2 high-power LEDs, it is made for watching nature and wildlife by day and by night. Easy to install and to use, it suits nature lovers and hunters alike.

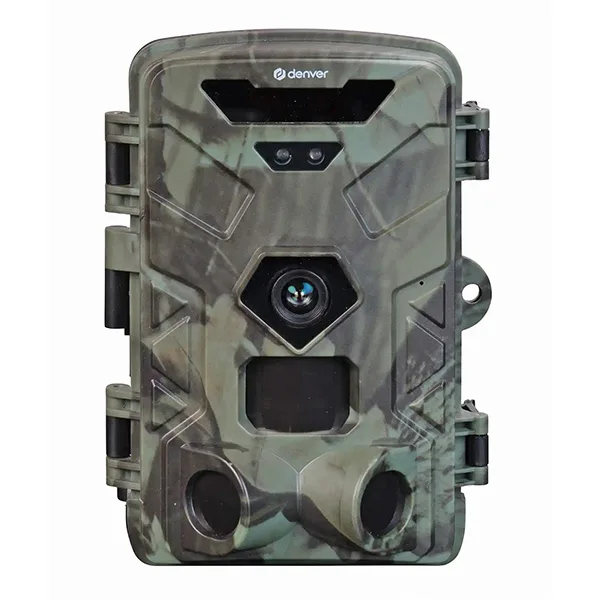

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 1

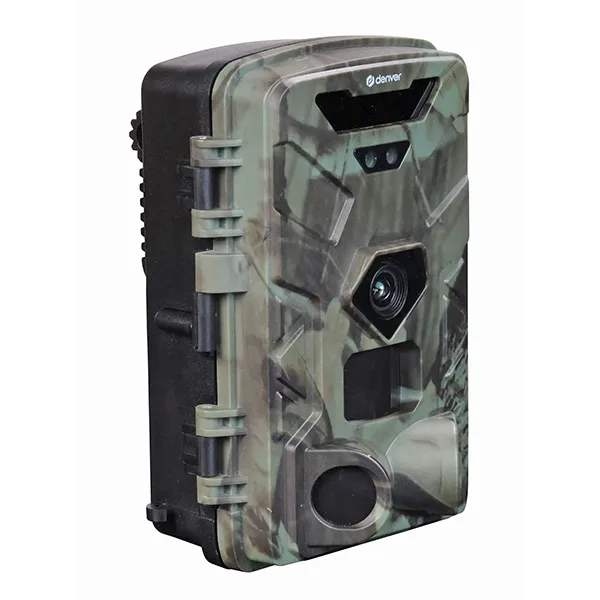

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 3

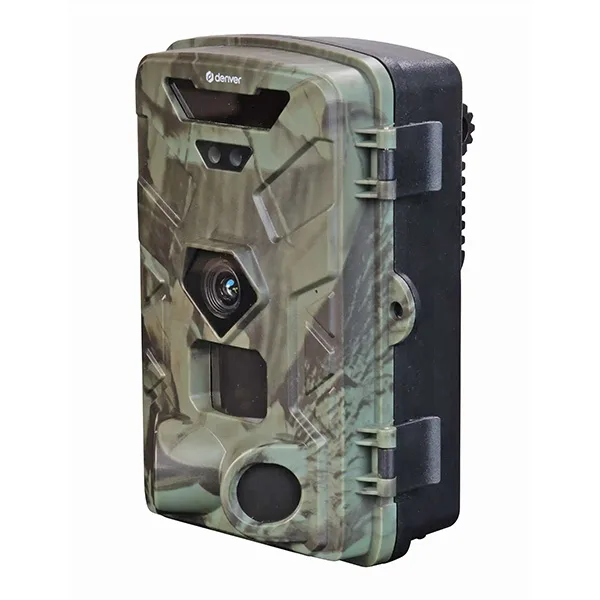

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 4

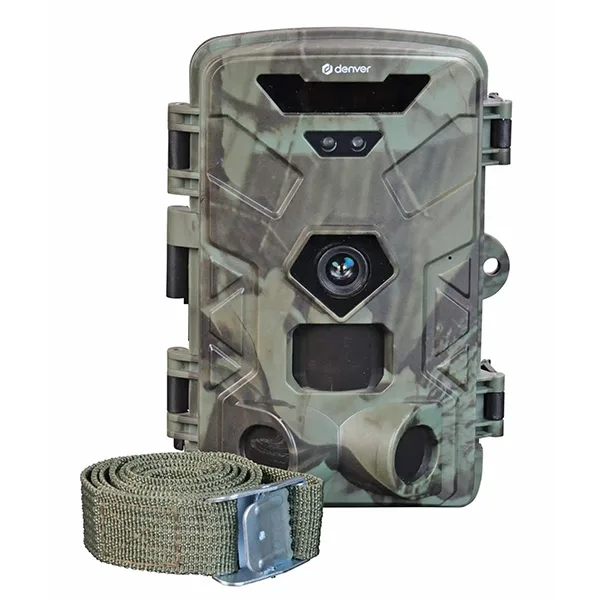

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 5

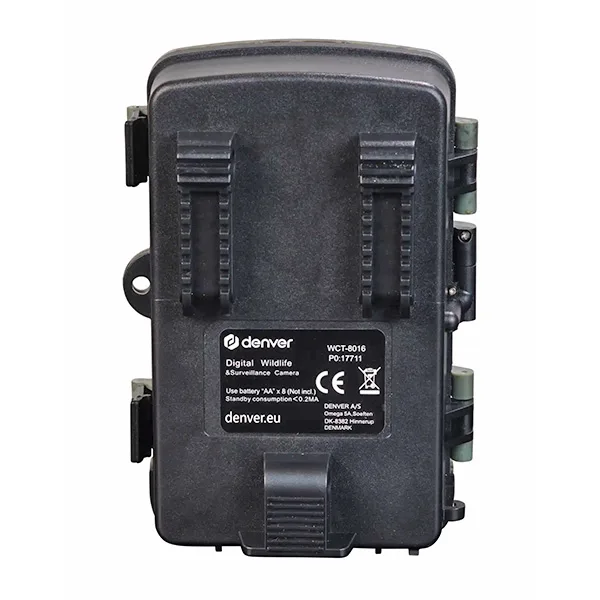

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 6

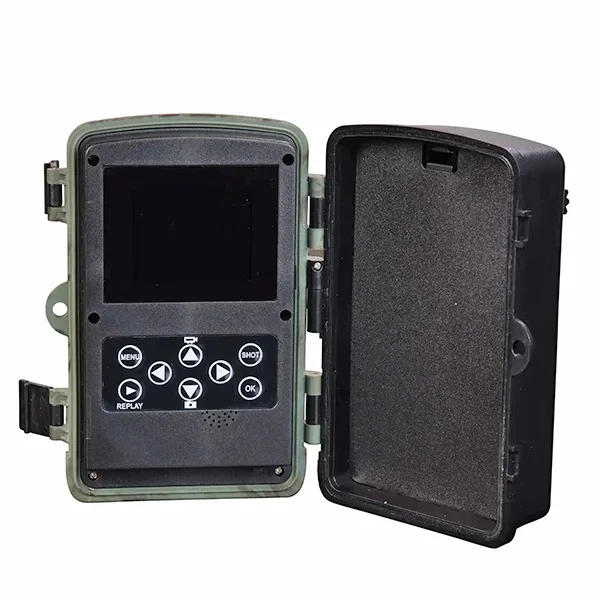

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 7

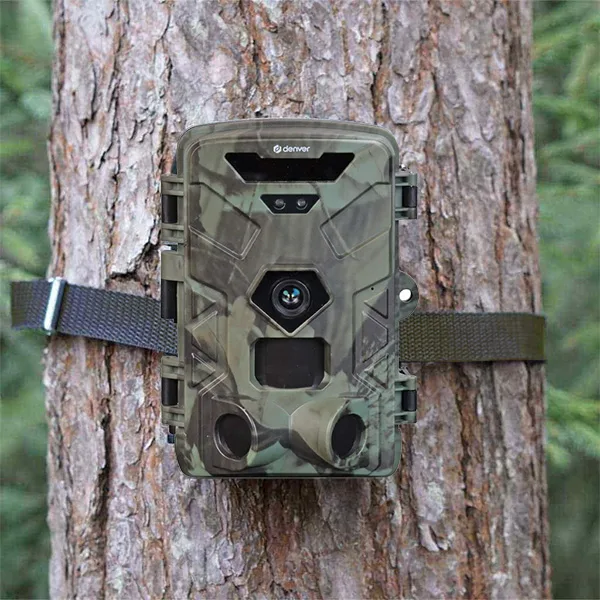

CMOS trail camera 8 Megapixel with 2" TFT monitor, IR and 3 PIR sensors - Image 8

SKU 8250-WCT8016EAN 5706751039416Features: IP65 rated, Special purposeColour: CamouflageMaterial: PlasticResolution: 4K, 8 Mpx

Description

8 Megapixel CMOS trail camera with a 2″ TFT monitor, an IR illuminator and three PIR sensors (one at the front, two at the sides) for wide, accurate coverage. Suitable for daytime and night-time recording alike, this CMOS trail camera is made for nature and wildlife lovers and for hunters. Fitted with 2 high-power LEDs for shooting in poor light, it delivers clear images even in the dark.

It is supplied complete with a USB to mini USB cable, an adjustable strap for mounting the camera on tree trunks, and an instruction manual.
Key features
  • With an 8 megapixel CMOS sensor and a 90° field of view, it is made for watching wild animals in their natural habitat.
  • Its IP65 protection rating makes it weatherproof, and standby time reaches 6 months. Rain or shine, this trail camera is made to be left outdoors.
  • With 2 high-power LEDs and the automatic IR filter, it captures sharp, clear images in the middle of the night without disturbing the animals.
  • Support for MicroSD cards up to 256GB and straightforward operation mean it is ready to work straight away. Just fit the batteries, set it up and let it capture images and video.
Technical specifications
  • Screen size: 2.0 inches
  • Dimensions: 135 x 90 x 76 mm
  • Weight: 0.38 kg

Technical details

Photo resolution 50/36/24/20/16/12/8/5/3/1 MP
Video resolution 4K/2.7K/1080p/720p/480p
Detection angle up to 120°
Detection range 20 metres
Fill light LED wavelength 940 nm (low glow)
Trigger time 0.2 - 0.5 seconds
Waterproof rating IP65
Operating temperature -20 to +40 °C
Memory card type microSD card (C10) up to 256 GB (not included)
Power supply 68 AA batteries (not included) / USB cable included
Operating voltage 6 V
Standby time up to 6 months
Photo format JPEG
Video formats AVI
