Digital Echo Kit

It can be used with all sorts of audio systems: karaoke, megaphones, public address, toys, or just for fun

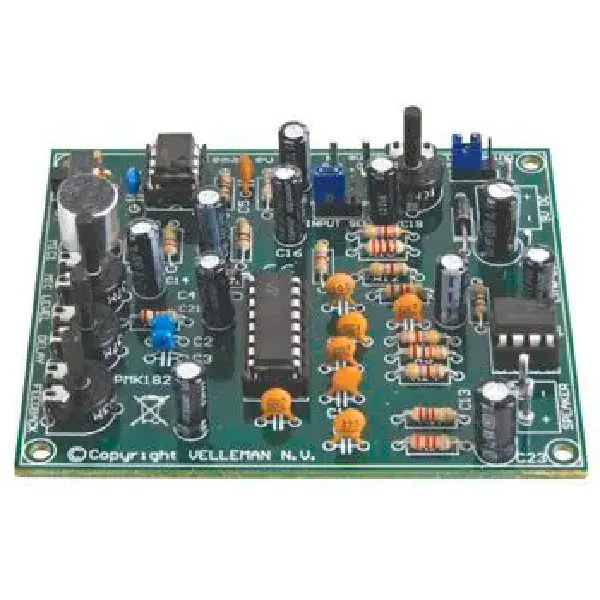

Digital Echo Kit - Image 1

SKU 8220-MK182EAN 5410329426255Item type: Kit

Description

Can be used with various audio systems such as karaoke, megaphones, public address, toys, or just for fun. It features 40 KB of SRAM for low distortion and excellent sound quality, an onboard microphone, amplified speaker output, Line-In and Line-Out. Volume, echo delay time, and feedback adjustment.

Technical Specifications

  • Power supply: via 9 V battery (not included) or mains adapter with voltage between 9 and 12 Vdc

Technical details

Consumption 150 mA max
Delay time from 80 to 200 ms
Speaker output 500 mW (8 ohm, 10% THD)
Dimensions 85 x 70 x 20 mm
